M306NKT-EPB User’s Manual 2. Setup
REJ10J0519-0200 Rev.2.00 Oct. 16, 2006 Page 40 of 104
2.10 Switch Settings
2.10.1 A/D Conversion Bypass Capacitors
There is a foot pattern on the M306NKT-EPBM board for mounting bypass capacitors for the A/D conversion circuit near the
MCU. Mount suitable bypass capacitors as occasion demands. Figure 2.16 shows where they are installed and the
configuration of this product.
Component side of the M306NKT-EPBM
V REF -AV SS bypass capacitor
AV SS V REF
C2
AV CC -AV SS
AV CC AV SS
C1
6NK
bypass capacitor

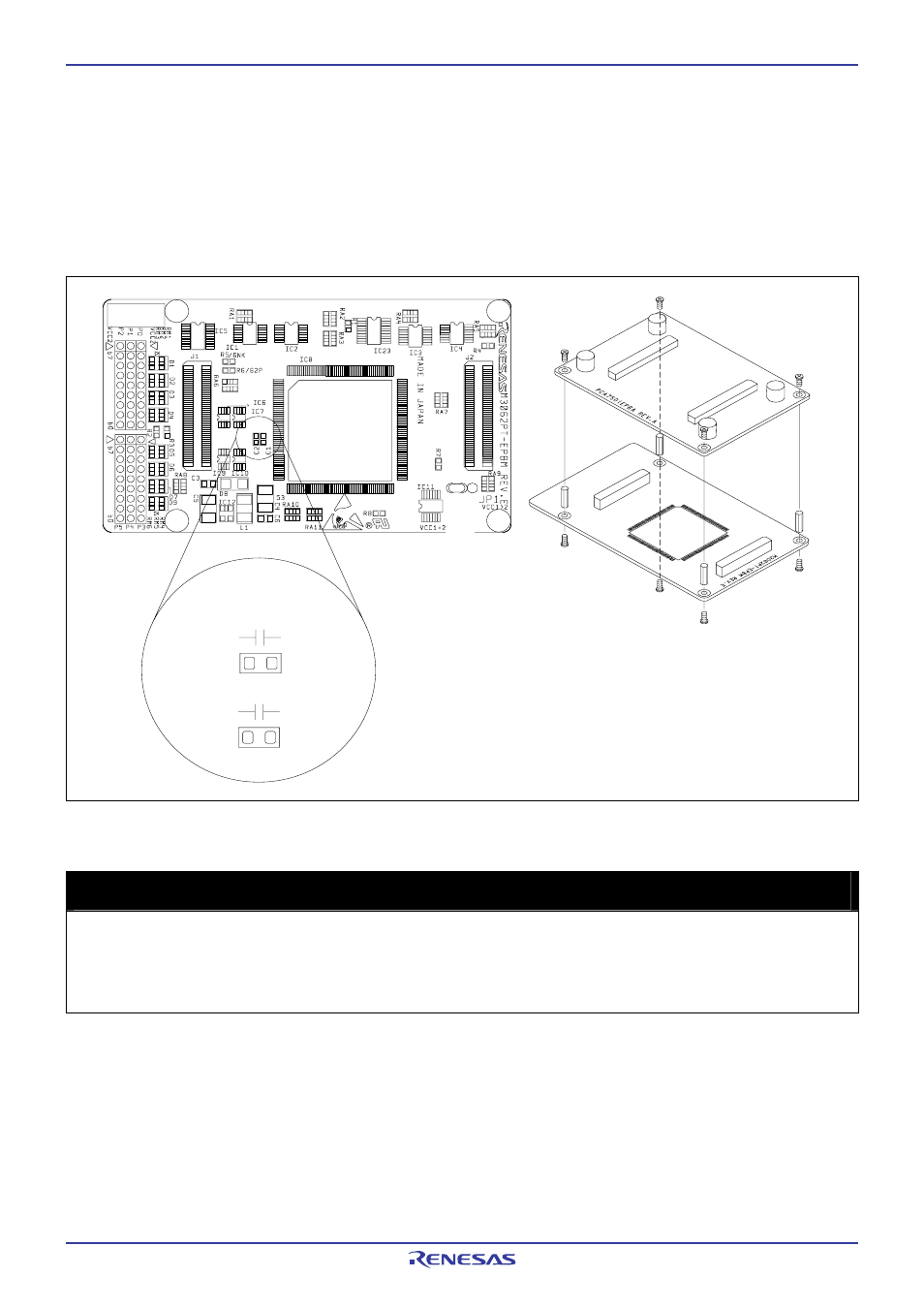

Figure 2.16 Foot pattern for A/D conversion bypass capacitors and the configuration of this product
IMPORTANT
Note on the A/D Converter:
z Because a package converter board and other devices are used between the evaluation MCU and the user
system, the A/D converter operates differently from that of an actual MCU. Make the final evaluation of the
A/D converter with an actual MCU.
