M306NKT-EPB User’s Manual 2. Setup
REJ10J0519-0200 Rev.2.00 Oct. 16, 2006 Page 33 of 104
2.9.1 Connecting to a 100-pin LCC Socket
Here following is a procedure of connecting to a 100-pin LCC socket (IC61-1004-051 of Yamaichi Electronics Co., Ltd.) on
the user system using the included M30800T-PTC.
(1) Attach the CN2 side of the M30800T-PTC to the J4 side of the M306NKT-EPB.
(2) Attach the M30800T-PTC to the 100-pin LCC socket.
100-pin LCC socket
CN2 side
(1)
No. 1 pin
(2)
M30800T-PTC
User system
M3T-FLX160-EPB
M306NKT-EPB

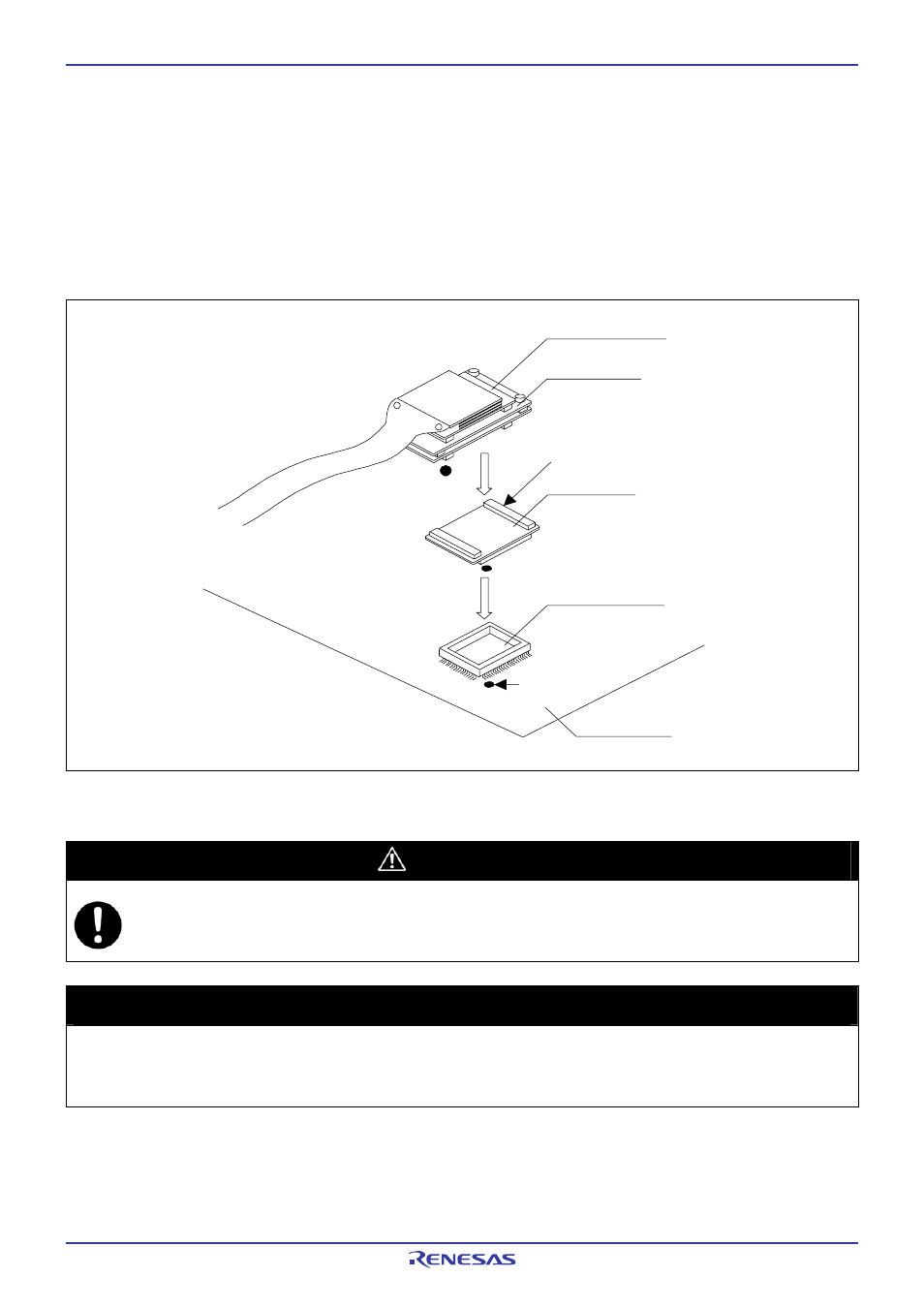

Figure 2.9 Connecting to a 100-pin LCC socket
CAUTION
Note on Connecting the User System:
z Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
user system.
IMPORTANT
Notes on Connectors of the Converter board:
z The connectors of the M30800T-PTC are guaranteed for only 50 insertion/removal iterations.
z For purchasing the IC61-1004-051 or for technical information, contact Yamaichi Electronics Co., Ltd.
