M306NKT-EPB User’s Manual

2. Setup

REJ10J0519-0200 Rev.2.00 Oct. 16, 2006

Page 37 of 104



2.9.5 Connecting to a 100-pin 0.5mm Pitch Foot Pattern (Part 1)
Here following is a procedure of connecting to a 100-pin 0.5mm pitch foot pattern on the user system using the M3T-F160-
100NSD (not included). For details on the M3T-F160-100NSD (not included), refer to its user's manual.

(1) Attach the NQPACK100SD-ND included with the M3T-F160-100NSD to the user system.
(2) Attach the YQPACK100SD included with the M3T-F160-100NSD to the NQPACK100SD-ND and secure it with the YQ-

GUIDE's.

(3) Attach the CN2 side of the M3T-F160-100NSD to the J4 side of the M306NKT-EPB.
(4) Attach the M3T-F160-100NSD to the YQPACK100SD.

*

CN2 side

(3)

(1)

100-pin 0.5mm pitch

(PLQP100KB-A) foot pattern

No. 1 pin

User system

M3T-F160-100NSD

(not included)

FLASH MCU, etc.

On-board evaluation

*: These four items are available in one package .

YQPACK100SD

NQPACK100SD-ND

HQPACK100SD

(not included)

(2)

(4)

YQ-GUIDE(x4)

These corners are not round.

M3T-FLX160-EPB

M306NKT-EPB

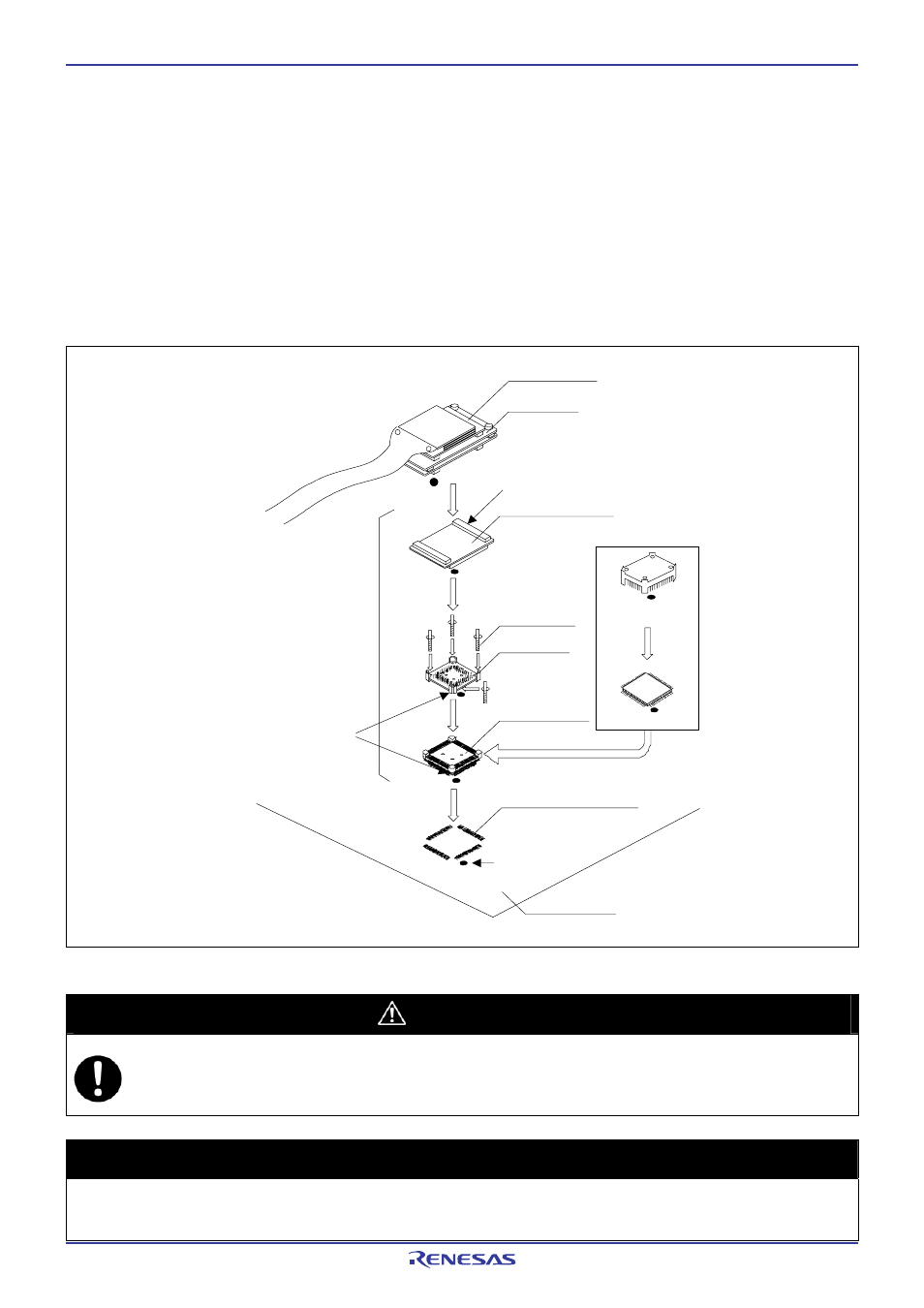

Figure 2.13 Connecting to a 100-pin 0.5mm pitch foot pattern (Part 1)

CAUTION

Note on Connecting the User System:

z

Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and

user system.

IMPORTANT

Note on Connectors of the Converter board:

z

The connectors of the M3T-F160-100NSD are guaranteed for only 50 insertion/removal iterations.
