M306NKT-EPB User’s Manual 3. Usage (How to Use the Emulator Debugger)
REJ10J0519-0200 Rev.2.00 Oct. 16, 2006 Page 66 of 104

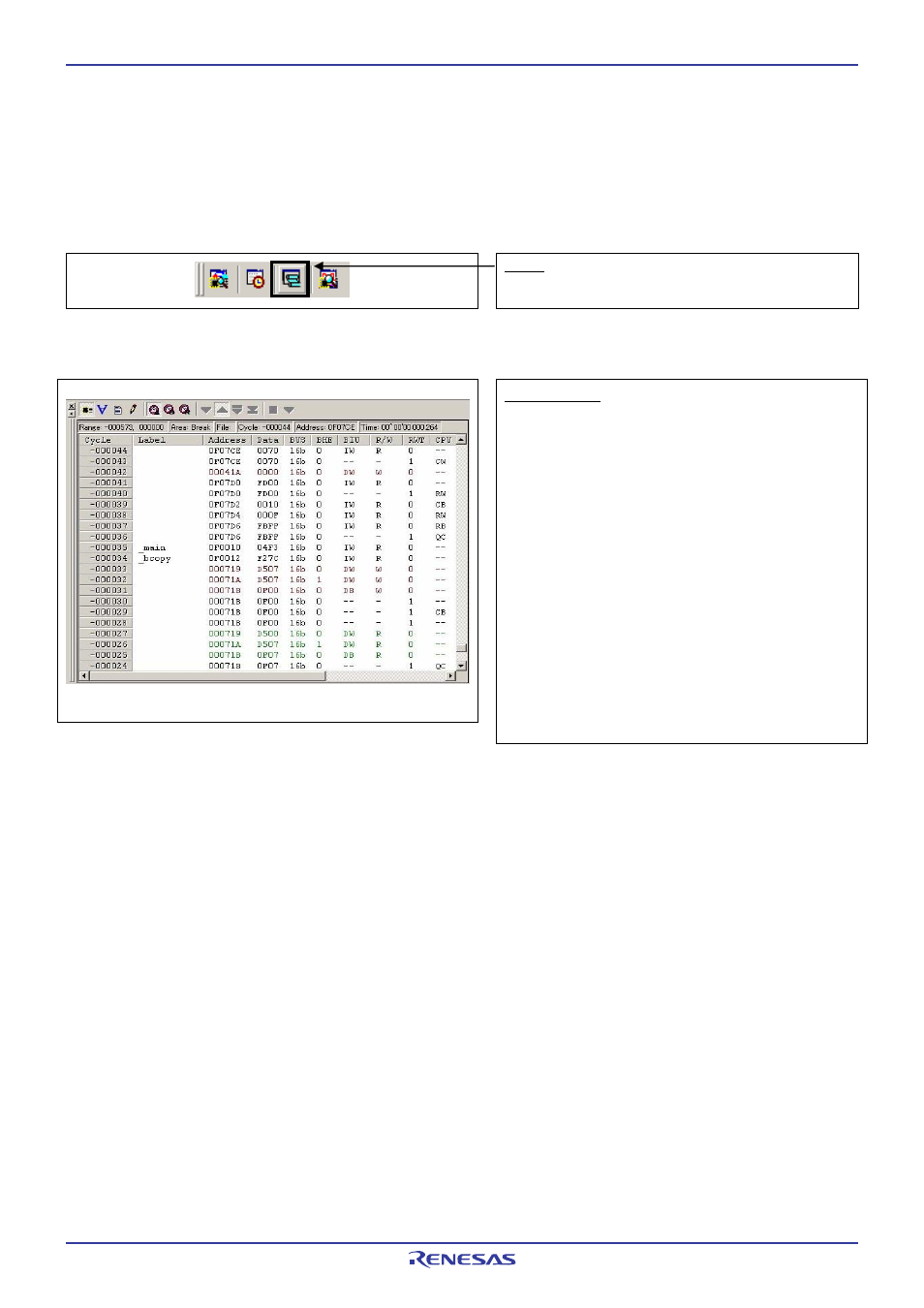

3.5 Trace Window
The trace window is used to show the results of real-time trace measurements.
(1) Trace window
1. Opening the trace window
Trace
Clicking this button opens the trace window.
2. Trace window display
Trace window
The trace window is used to show the results of real-time trace
measurements. It has the following four display modes. And mixed
mode can be displayed.
- Bus
mode
Bus information per cycle can be inspected. The contents are
displayed in order of execution paths.
- Disassemble mode
The execution paths of the executed instructions can be inspected.
The contents are displayed in order of execution paths.
- Source mode
The execution paths of the source program can be inspected.
- Data access mode
Data read/write cycles can be inspected.
The trace window shows the measurement result when a real-time
trace measurement has finished. The trace window will be cleared
when the real-time trace measurement is restarted.
