4.5.2 External Dimensions of the M306V8T-PTC
Figure 4.6 shows external dimensions of the converter board M306V8T-PTC for a 116-pin LCC (included with the M306V8T-
EPB).

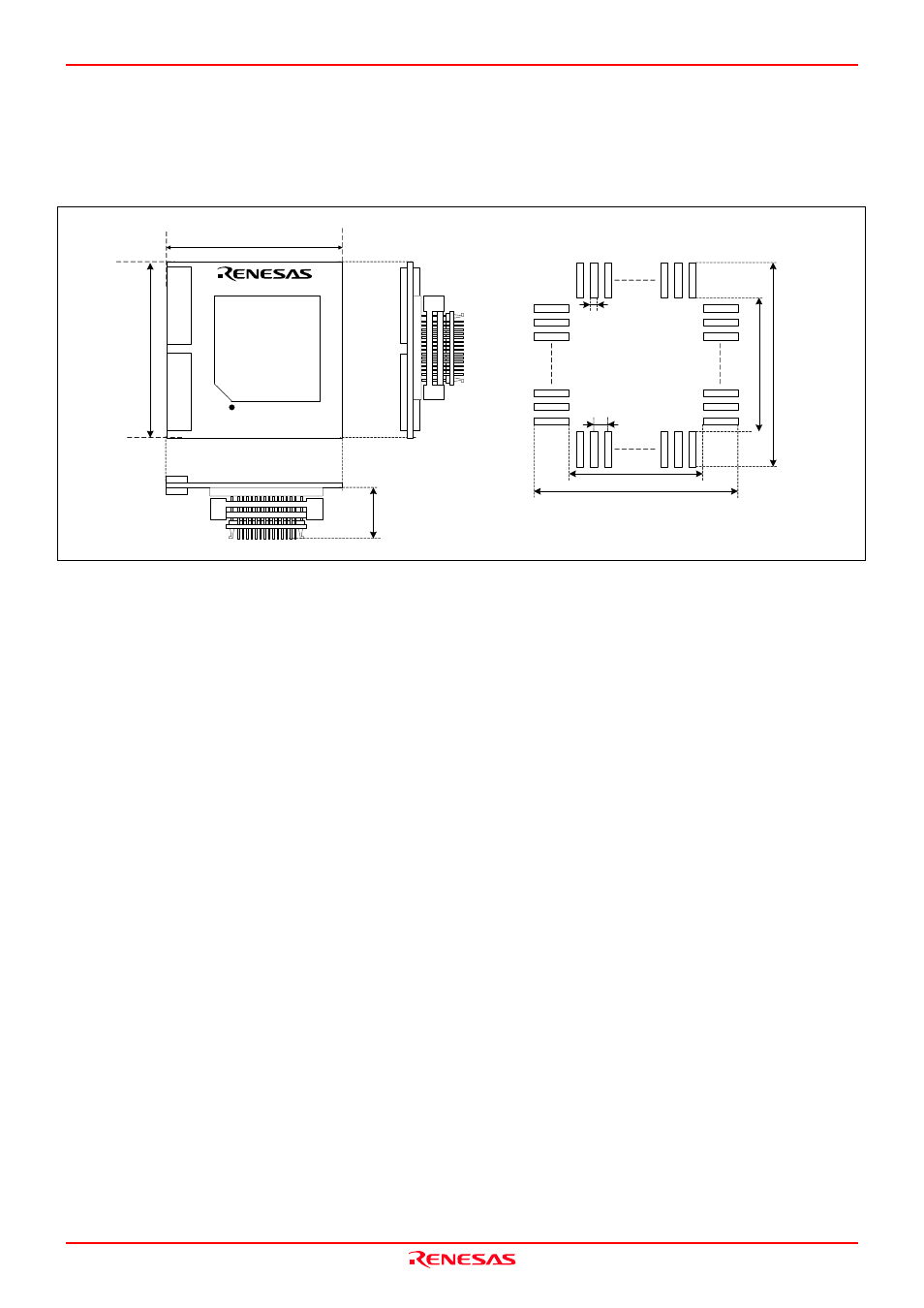

Figure 4.6 External dimensions of the M306V8T-PTC

16.5

Unit: mm

53.0

CN1

1

34

34

1

M306V8T-PTC REV.A

MADE IN JAPAN

IC1

53.0

1

29

30

58

59

87

88

116

CN2

0.25

0.65

19.0

23.0

19.0

23.0
