M306V8T-EPB User’s Manual

3. Usage (How to Use the Emulator Debugger)

REJ10J0777-0100 Rev.1.00 2005.08.01

Page 46 of 90


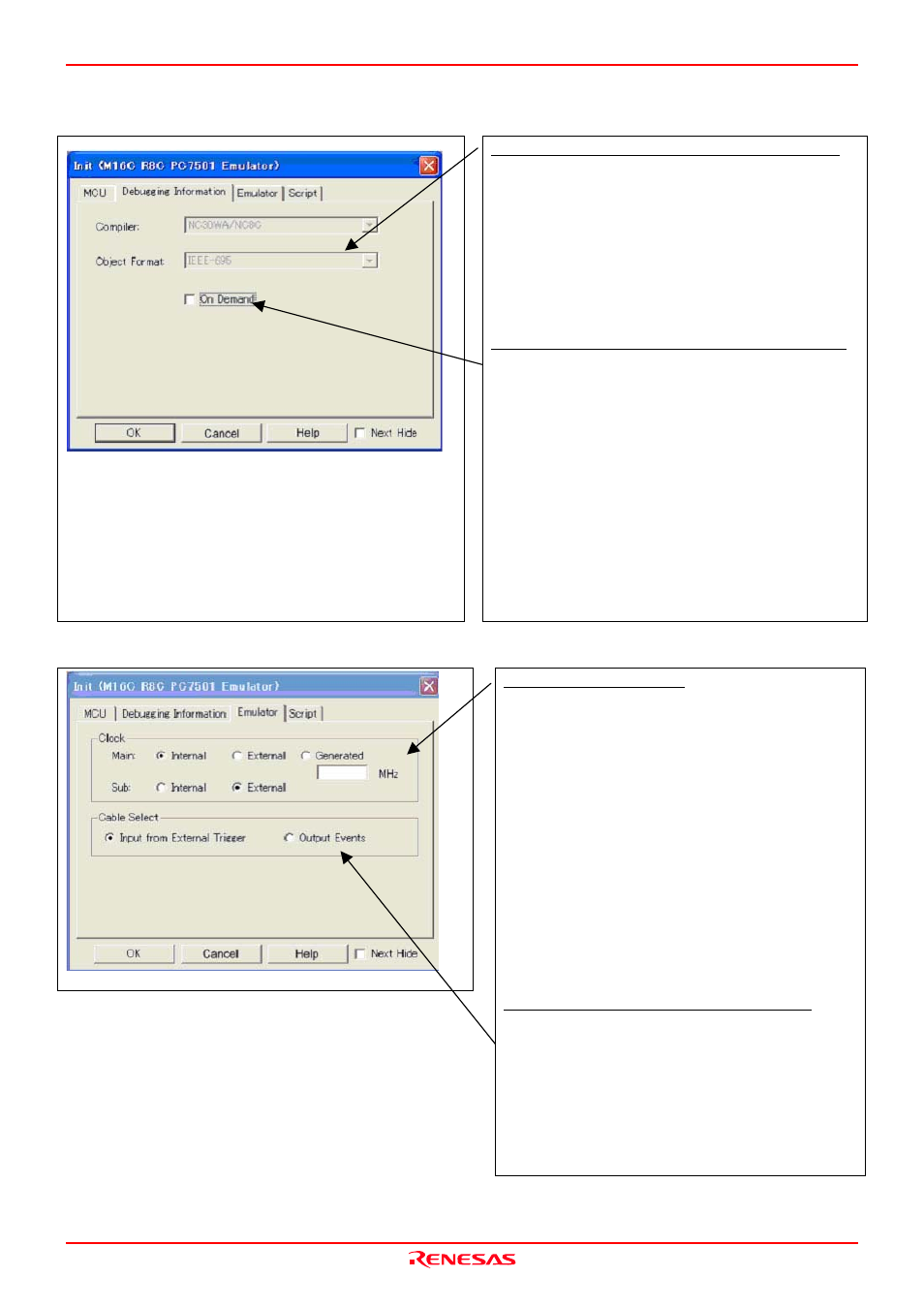

(2) Debugging Information tab

Specifying the compiler used and the object format

Specify the compiler you are using and the format of the object file
output by the compiler.
- Compiler
Select the compiler you are using.
(By default, the C compiler from Renesas is selected.)
- Object

Format

Select the format of the object file that is output by the compiler you

are using.

Specifying the method for storing debug information

There are two methods for storing debug information: on-memory
method where data is held in memory and an on-demand method where
data is held in a temporary file.
When selecting the on demand method, check the [On Demand] check
box.
- On

Memory

Debugging information is stored in the internal memory of your

computer. This method is suitable when the load module (user
program) size is small.

- On

Demand

Debugging information is stored in a reusable temporary file on the

hard disk of your computer.
Because the stored debugging information is reused, the next time you
download the same load module it can be downloaded at high speed.
This method is suitable when the load module (user program) size is
large.


(3) Emulator tab

Specifying the target clock

Specify the clock sources supplied to the MCU (main clock and sub
clock). Select the appropriate clock sources according to the clock
used by your target MCU.
- Internal

(default)

Emulator PC7501’s internal clock
- External
User

system

clock

- Generated
Clock created in PC7501

The option you have specified here remains effective the next time
you start up.

Selecting the event output/trigger input cable

Select input/output of the event output/trigger input cable of the
PC7501.
- Input from External Trigger (default)
Inputs the external trigger from the cable
- Output

Events

Outputs events from the cable

“Input from External Trigger” is set at startup (the previous setting
becomes null).
