M306V8T-EPB User’s Manual 2. Setup
REJ10J0777-0100 Rev.1.00 2005.08.01 Page 32 of 90
2.10 Switch Settings
2.10.1 Setting Switches of Emulation Probe
Set the switches of the emulation probe according to the condition. Figure 2.9 shows the positions of the switches of the
M306V8T-EPB.
Opening the upper cover
(1) Slide aside the upper cover.
(2) Then pull the cover upward.
Closing the upper cover
Attach the cover, and slide it aside to close.
(Enlarged illustration)

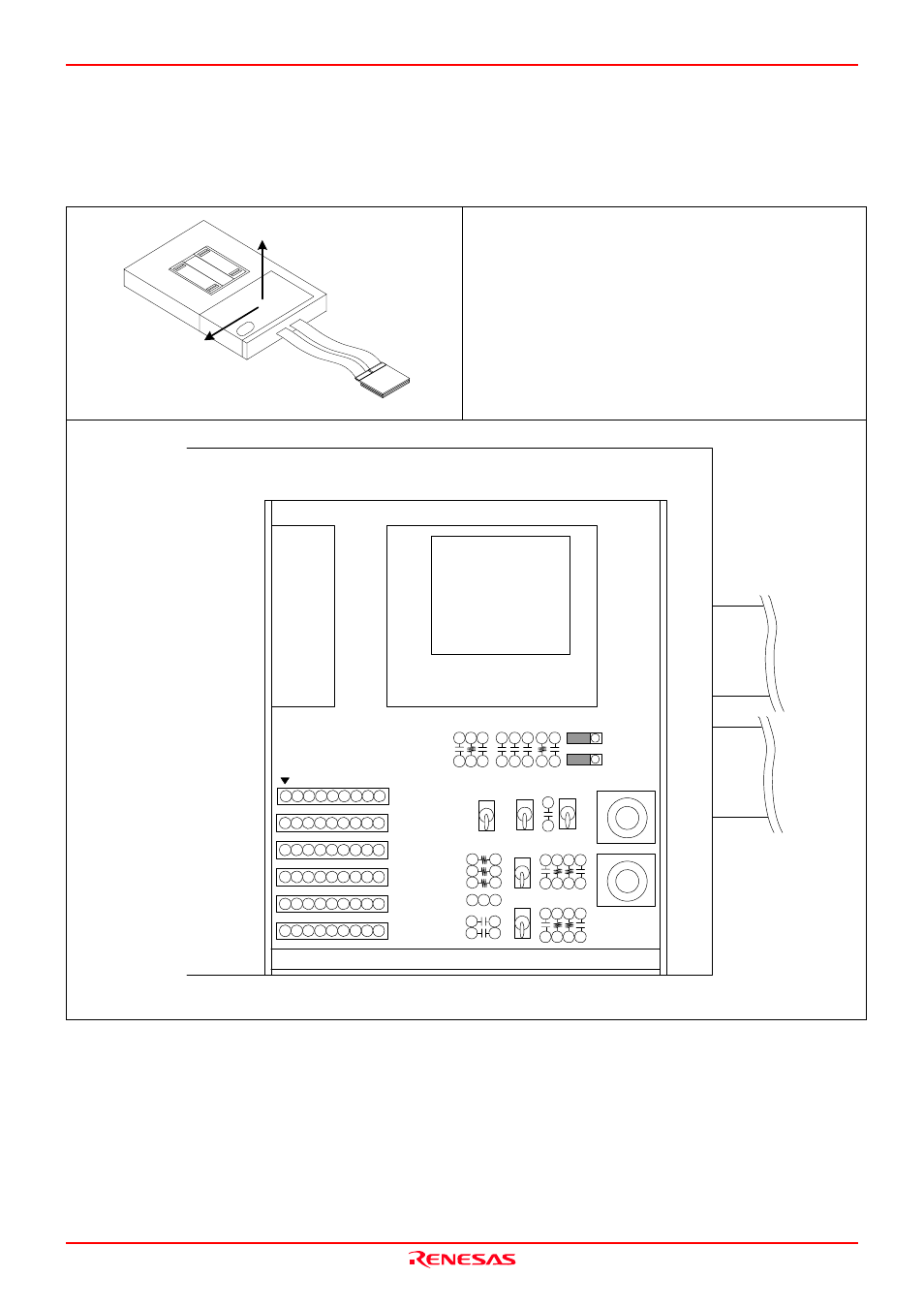

Figure 2.9 Positions of the switches
