M306V8T-EPB User’s Manual
2. Setup
REJ10J0777-0100 Rev.1.00 2005.08.01
Page 31 of 90
2.9.1 Connecting the User System
When connecting the emulation probe to a 116-pin 0.65-mm-pitch foot pattern on the user system, follow the procedures
below.
(1) Mount the NQPACK116SB (included) to the user system.
(2) Connect the YQPACK116SB (included) to the NQPACK116SB and secure it with the YQ-Guide’s.
(3) Connect M306V8T-PTC to the YQPACK116SB.

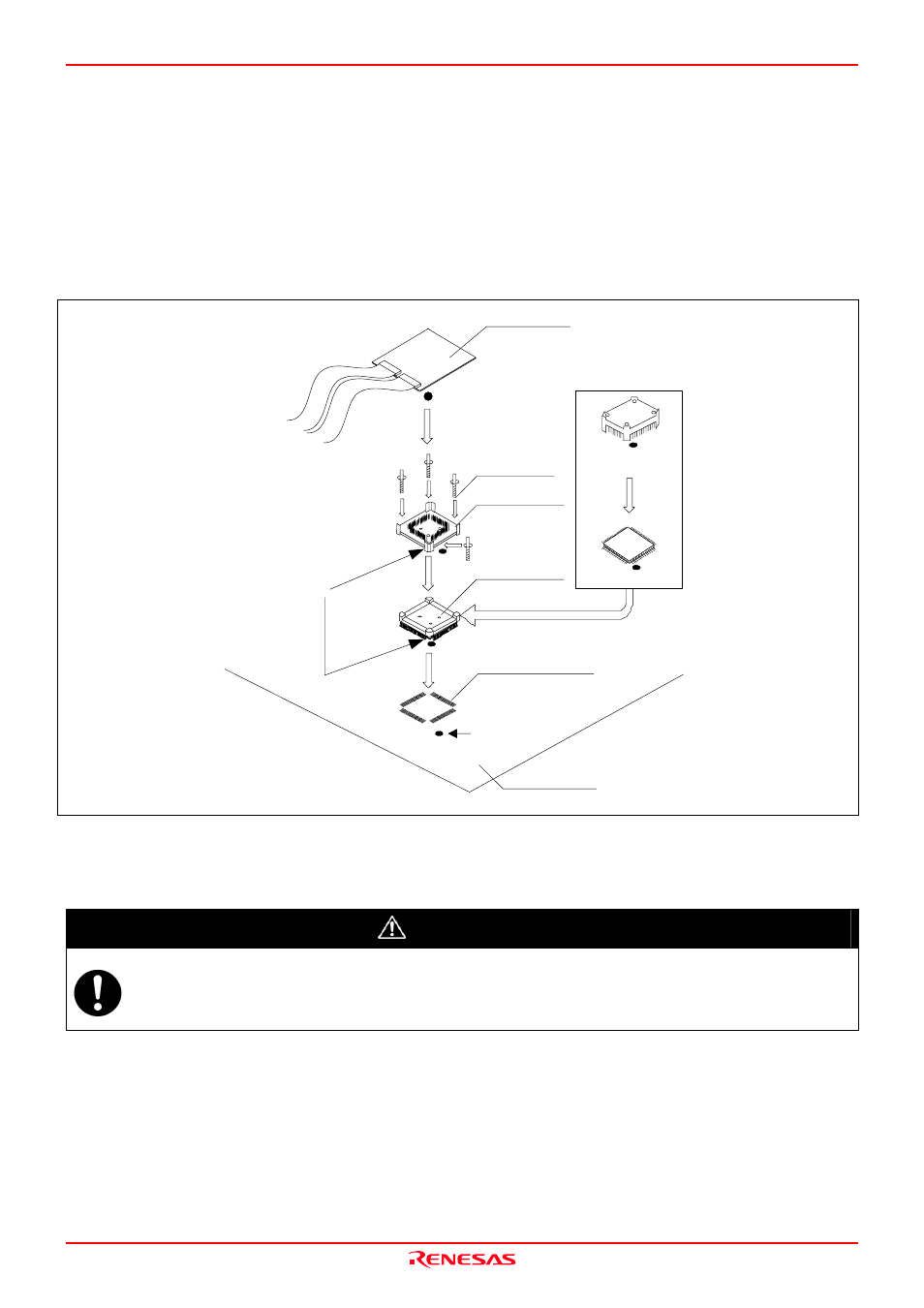

Figure 2.8 Connecting to an 116-pin 0.65-mm-pitch foot pattern
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE and HQPACK are trademarks of Tokyo Eletech Corporation.
CAUTION
Notes on Connecting the User System:
Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
user system.
(3)
(1)
116-pin 0.65-mm-pitch
(116P6A-A) foot patten
No.1 pin
User system
FLASH MCU etc.
On-board evaluation
YQPACK116SB
NQPACK116SB
HQPACK116SB
(not incluede)
(2)
YQ-GUIDE(x4)
These corners are not round.
M306V8T-PTC
