Perform the settings for the hard disk drives.
It is possible to check the histories (log) of event occur-
rence, error occurrence and access.

[REC Rate Status] Check the recording rate
and the image quality for each camera channel.

Recording rate for each recording mode for each cam-
era (as shown below) will be displayed in list form.

MANU: Manual recording
SCHE: Schedule recording
PRE EVT: Pre-event recording
POST EVT: Post-event recording
EMR: Emergency recording

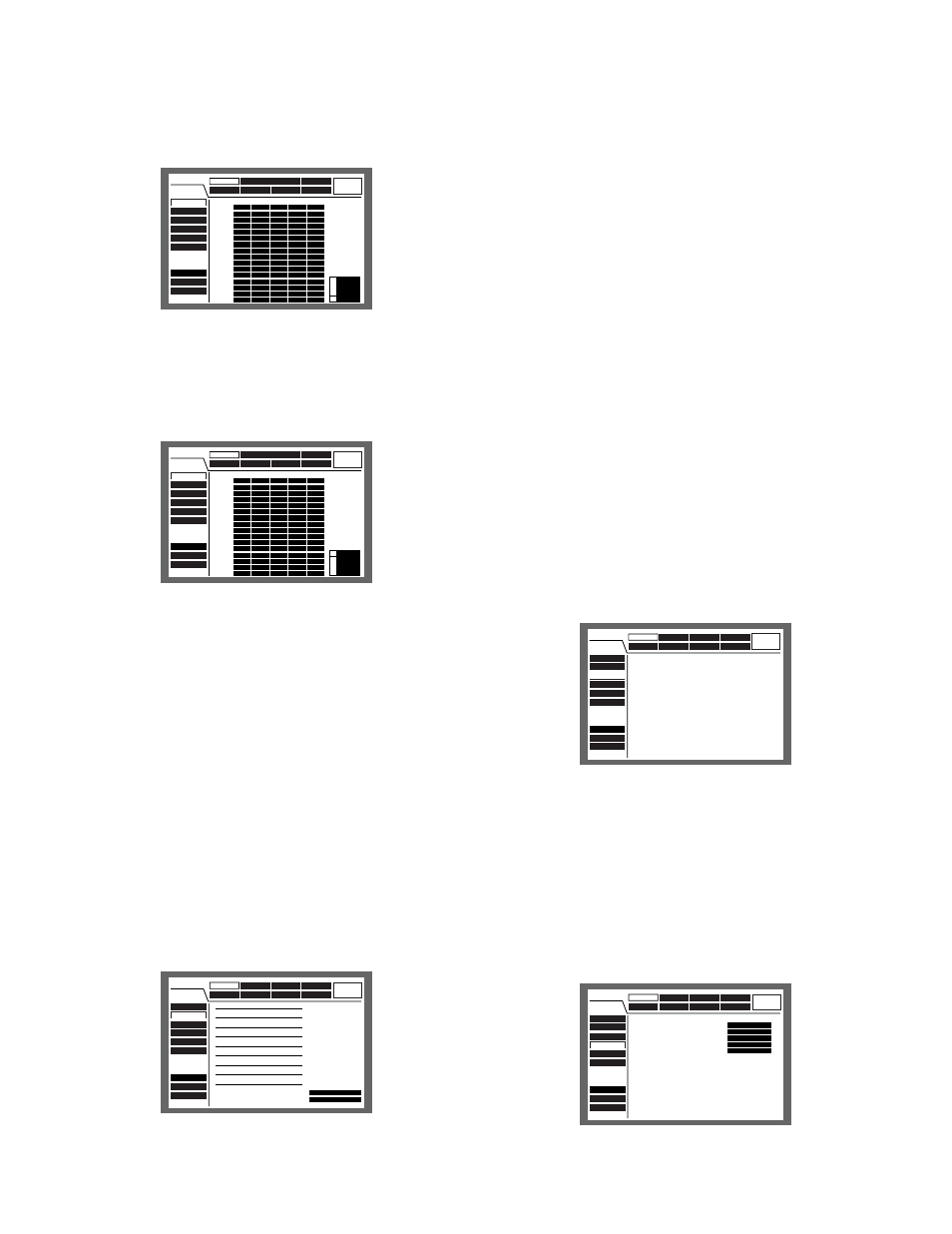

[Disk Info] Check the available hard disk space

The available hard disk space of the following will be
displayed: The built-in hard disk (normal recording
area, event recording area and copy area), extension
unit (EXT1 - 7), DVD-RAM, CD-R and DVD-R disk drive
connected to the copy port (COPY1 or COPY2).
Refer to page 25 for more details on the built-in hard
disk.
It is also possible to perform the settings for the hour-
meter (the active time of the HDD) warning and for the
HDD safety mode with this menu.

■ [Maintenance] Functions for Maintaining

REC Rate Status

Disk Info

Version Info

Disk End Mode

Disk Capacity

Date Delete

Event Log

Error Log

Access Log

SET UP MENU

Recording

Event

Schedule

System

Display

Comm

Switcher

LIVE

Maintenance

SUPER FINE

FINE

NORMAL

EXTENDED

AUTO

1ips

CAM 1

CAM 2

CAM 3

CAM 4

CAM 5

CAM 6

CAM 7

CAM 8

CAM 9

CAM 10

CAM 11

CAM 12

CAM 13

CAM 14

CAM 15

CAM 16

MANU

SCHE

POST EVT

EMR

PRE EVT

REC Rate Status

Disk Info

Version Info

Disk End Mode

Disk Capacity

Date Delete

Event Log

Error Log

Access Log

SET UP MENU

Recording

Event

Schedule

System

Display

Comm

Switcher

LIVE

Maintenance

SUPER FINE

FINE

NORMAL

EXTENDED

AUTO

1ips

CAM 1

CAM 2

CAM 3

CAM 4

CAM 5

CAM 6

CAM 7

CAM 8

CAM 9

CAM 10

CAM 11

CAM 12

CAM 13

CAM 14

CAM 15

CAM 16

MANU

SCHE

POST EVT

EMR

PRE EVT

SETUP MENU

Event

Schedule

System

Display

Comm

Switcher

LIVE

Maintenance

Recording

REC Rate Status

Disk Info

Version Info

Disk End Mode

Disk Capacity

Data Delete

Event Log

Error Log

Access Log

MAIN

160GB 160GB
15000h 15000h

EXT7

160GB 160GB
15000h 15000h

EXT6

160GB 160GB
15000h 15000h

EXT5

160GB 160GB
15000h 15000h

EXT4

160GB 160GB
15000h 15000h

EXT3

160GB 160GB
15000h 15000h

EXT2

160GB 160GB
15000h 15000h

EXT1

■

Warning for Disk Life Time

■

HDD Safety Mode

160GB 160GB
15000h 15000h

160GB 160GB
15000h 15000h
160GB 160GB
15000h 15000h
160GB 160GB
15000h 15000h
160GB 160GB
15000h 15000h
160GB 160GB
15000h 15000h
160GB 160GB
15000h 15000h
160GB 160GB
15000h 15000h

Normal REC Area

Event REC Area

Copy Area

Copy

(Rear)

Copy

(Front)

3000h

OFF

Remaining

1800GB
1200GB
1000GB
1000GB
1000GB

Note: The displayed available disk space on this menu

will not include the space required for data man-
agement. Therefore, the understated available disk
space will be displayed.

• Hour meter warning setting

Select the duration as the maximum active time of the
hard disk from the followings. Warning will be displayed
when the set time have passed.
10 000 h/20 000 h/30 000 h

• HDD safety mode

The HDDs will not start up with the default setting when
installing this unit in the rack without turning off the
power of the unit, to prevent malfunction caused by
shock or vibration.
After completing the installation, set the HDD SAFETY
MODE to OFF. Otherwise, the unit will be unable to
operate when turning the power on after a shutdown
caused by an unexpected incident such as a power
outage.
Refer to page 64 for further information.

[Version Info] Check the version information

Version information of the software and the hardware,
and the MAC address will be displayed.

[Disk End Mode] Set actions to be taken when
the available hard disk space has run out

Select an action from the followings to be taken when
the available space of the built-in hard disk (normal
recording area, event recording area, copy area) or the
external recording device (DVD-RAM, CD-R or DVD-R
disk drive) connected to the copy port (COPY1,
COPY2) is running out.

SETUP MENU

Event

Schedule

System

Display

Comm

Switcher

LIVE

Maintenance

Recording

REC Rate Status

Disk Info

Version Info

Disk End Mode

Disk Capacity

Data Delete

Event Log

Error Log

Access Log

■

Software

■

Hardware (M)

■

(V)

■

Mac Address

V1.00
V1.00
V1.00
AA-BB-CC-DD-EE-FF

Event

Schedule

System

Display

Comm

Switcher

SETUP MENU

LIVE

Maintenance

Recording

REC Rate Status

Disk Info

Version Info

Disk End Mode

Disk Capacity

Data Delete

Event Log

Error Log

Access Log

■

HDD

•

Normal Recording Area

•

Event Recording Area

•

COPY Area

■

COPY1

■

COPY2

CONTINUE

STOP
