84
■ How to Use the Terminals of the ALARM Connector
These terminals are used to connect the alarm devices, such as sensors, door switches, etc.
The pin configurations of these terminals are as shown below. The connector used should be compatible with the pin configu-
ration.

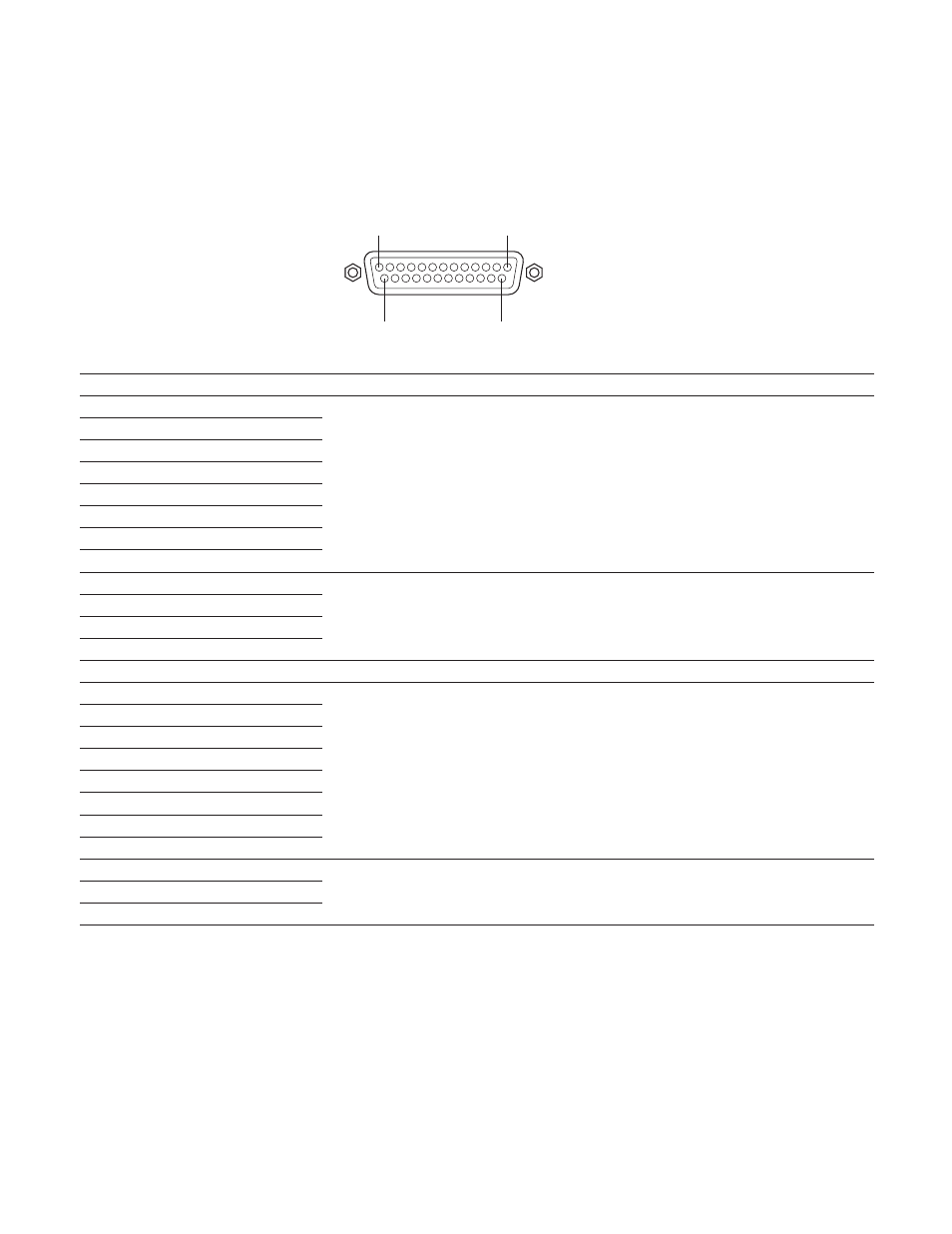

Pin Configuration
Pin No.
q
Pin No.
Ch 1 alarm input
Operation
Event action will be performed according
to the settings. Non-voltage make contact/–100 mA,
5 V pull-up
Alarm signal will be supplied at an event
occurrence Open collector output/24 V, 100 mA
Event action will be performed according
to the setting. Non-voltage make contact input/
–100 mA, 5 V pull-up
Alarm signal will be supplied at an event
occurrence Open collector output/24 V max.,
100 mA
Remarks
w Ch 2 alarm input
e Ch 3 alarm input
r Ch 4 alarm input
t Ch 5 alarm input
y Ch 6 alarm input
u Ch 7 alarm input
i Ch 8 alarm input
o Ch 1 alarm output
!0 Ch 2 alarm output
!1 Ch 3 alarm output
!2 Ch 4 alarm output
!3, !4 Earth (Grounding)
!5 Ch 9 alarm input
!6 Ch 10 alarm input
!7 Ch 11 alarm input
!8 Ch 12 alarm input
!9 Ch 13 alarm input
@0 Ch 14 alarm input
@1 Ch 15 alarm input
@2 Ch 16 alarm input
@3 Ch 5 alarm output
@4 Ch 6 alarm output
@5 Ch 7 alarm output
ALARM
q !3
@5 !4
