● [Alarm Auto Reset]
The following are possible for the alarm auto reset.
When OFF is selected, the alarm display will not automati-
cally disappear.
To erase the alarm display, press the ALARM RESET but-
ton.
OFF/1 s - 30 s (in 1 second intervals)
40 s/50 s/1 m/2 m/3 m4 m/5 m
● [Alarm Disarm]
The following are possible for the alarm disarm.
2 s - 10 s (in 1 second intervals)
r
[Terminal Setup] Perform the settings for the
alarm terminal polarity.
Select how to supply the signal to the alarm terminal.
N.O.: Signals will be supplied when short-circuited.
(Normally Open)
N.C.: Signals will be supplied when open-circuited.
(Normally Closed)
Note: It is possible to set polarities for each of the alarm
inputs 1-16 respectively using a PC via a network.
Event Schedule
System Display Comm Switcher

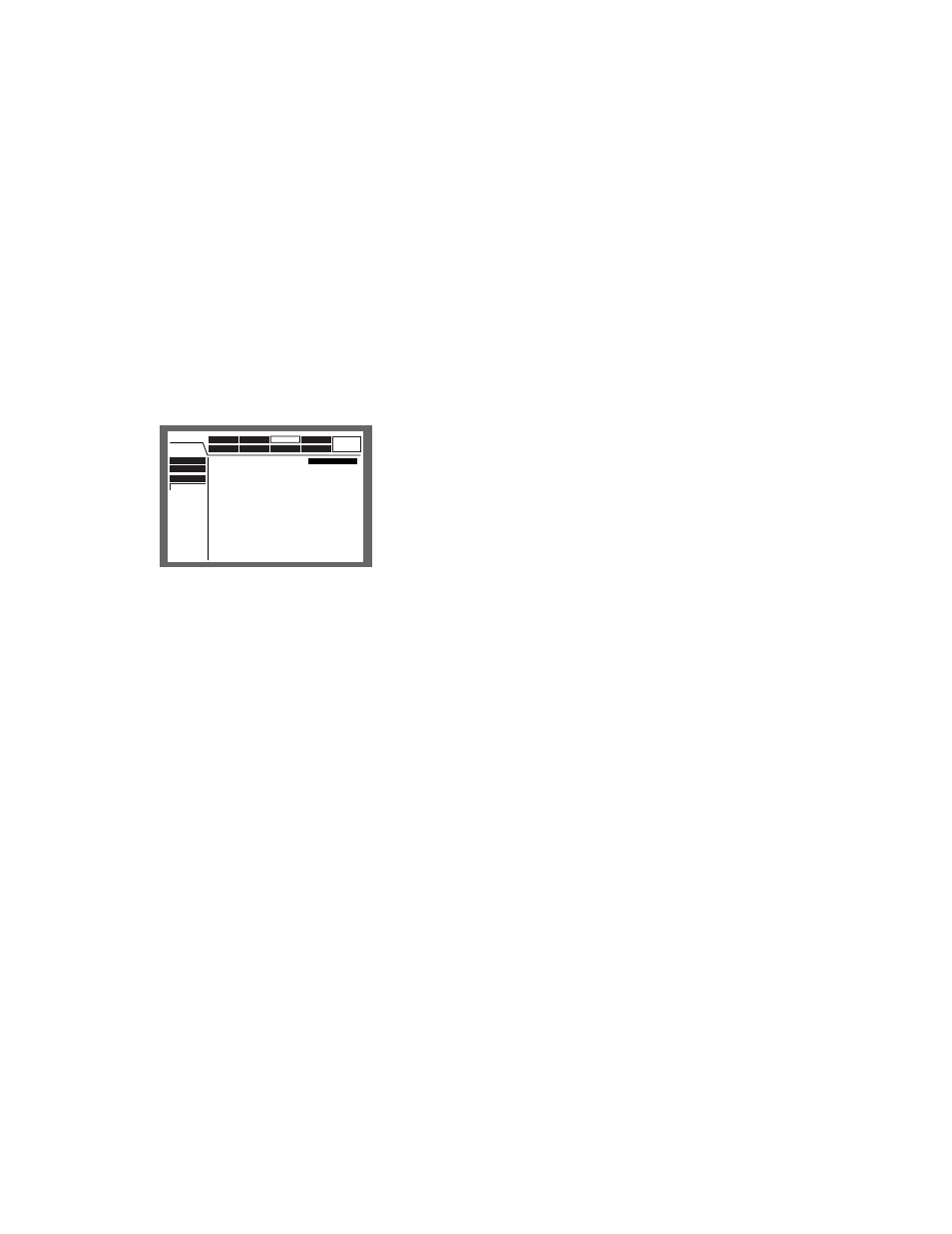

SETUP MENU
LIVE
Maintenance Recording
Event Setup
VMD Setup
Alarm Setup
Terminal Setup
N.O. ■ Terminal Setup
