, Rotate the jog dial to select a desired REC Prog/Event

Prog.
(Rotating the jog dial changes the displayed REC
Prog.)
REC Prog will be displayed with different colors.
Orange: REC Prog 1/Event Prog 1
Yellow: REC Prog 2/Event Prog 2
Pale purple: REC Prog 3/Event Prog 3
Indigo blue: REC Prog 4/Event Prog 4

Repeat steps 7 and 8 to assign REC Prog to other
timetables.

. Move the cursor to OK using the arrows button and

press the SET button.

→ The REC Prog/Event Prog will be assigned to the

selected time zone and the selected timetable win-
dow will be closed.

Notes:

• When the SET button is pressed after moving the

cursor to CANCEL in step 9, the settings will be
canceled and the selected timetable window will be
closed.

• Until the SET button is pressed after moving the

cursor to CANCEL in step 9, the programs will not
be assigned to the selected timetable.

r

[Special Days] Perform the settings for record-
ing programs for special days

Assign timetables to special days aside from other days
of the week. Timetables for special days can be set for
up to 30 days.
Perform the settings to specify dates as special days
and apply the recording schedule to the special days.

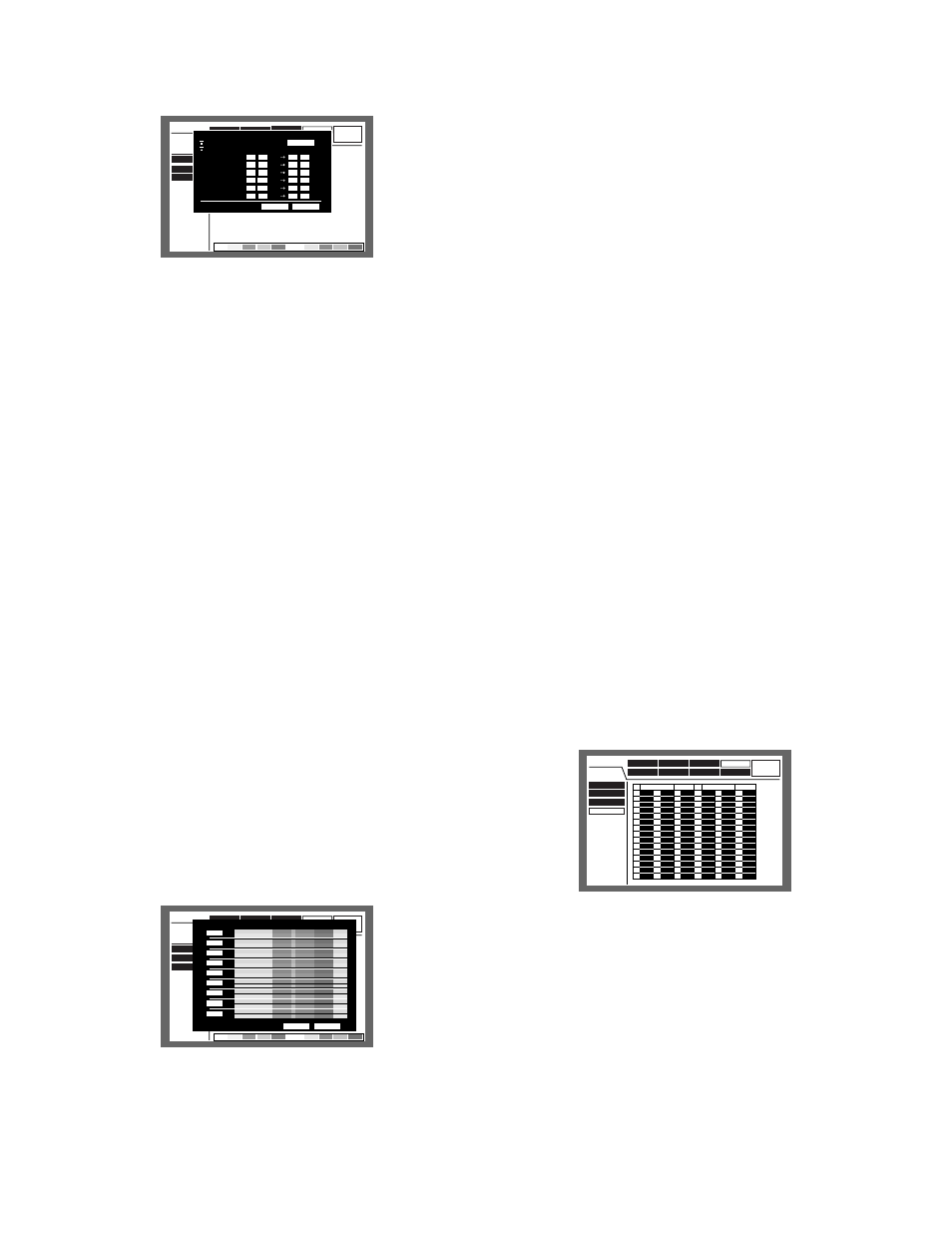

[Screenshot 4]

The checkbox for "New Time Table Setup" is checked.

v Move the cursor to the start time input box for "Period 1"

using the arrows button.

b Rotate the jog dial to set the start time.

The end time can be set in the same way.
Repeat steps 4 and 5 to set for "Period 2" - "Period 6".
(It is not necessary to set for all of "Period 1" - "Period
6".)

n Select OK using the arrows button and press the SET

button.

Notes:

• Start time and end time can be set in 15 minutes

intervals.

• To copy a timetable that is set for a different day of

the week, select "Copy the Other Time Table" and
select a day of the week by rotating the jog dial in
step 3.
Then, move the cursor to select OK and press the
SET button.

• When the SET button is pressed after moving the

cursor to CANCEL in step 6, the settings will be
canceled and the selected timetable window will be
closed.

• Until the SET button is pressed after moving the

cursor to CANCEL in step 6, the settings will not be
applied to the selected timetable.
