134
n Select a recording area using the arrows button and
assign the disk space to the selected recording area by
rotating the jog dial.
Repeat this operation to assign disk space to two or
more recording areas.
Press the SET button after setting.
m Press the SET button after setting.

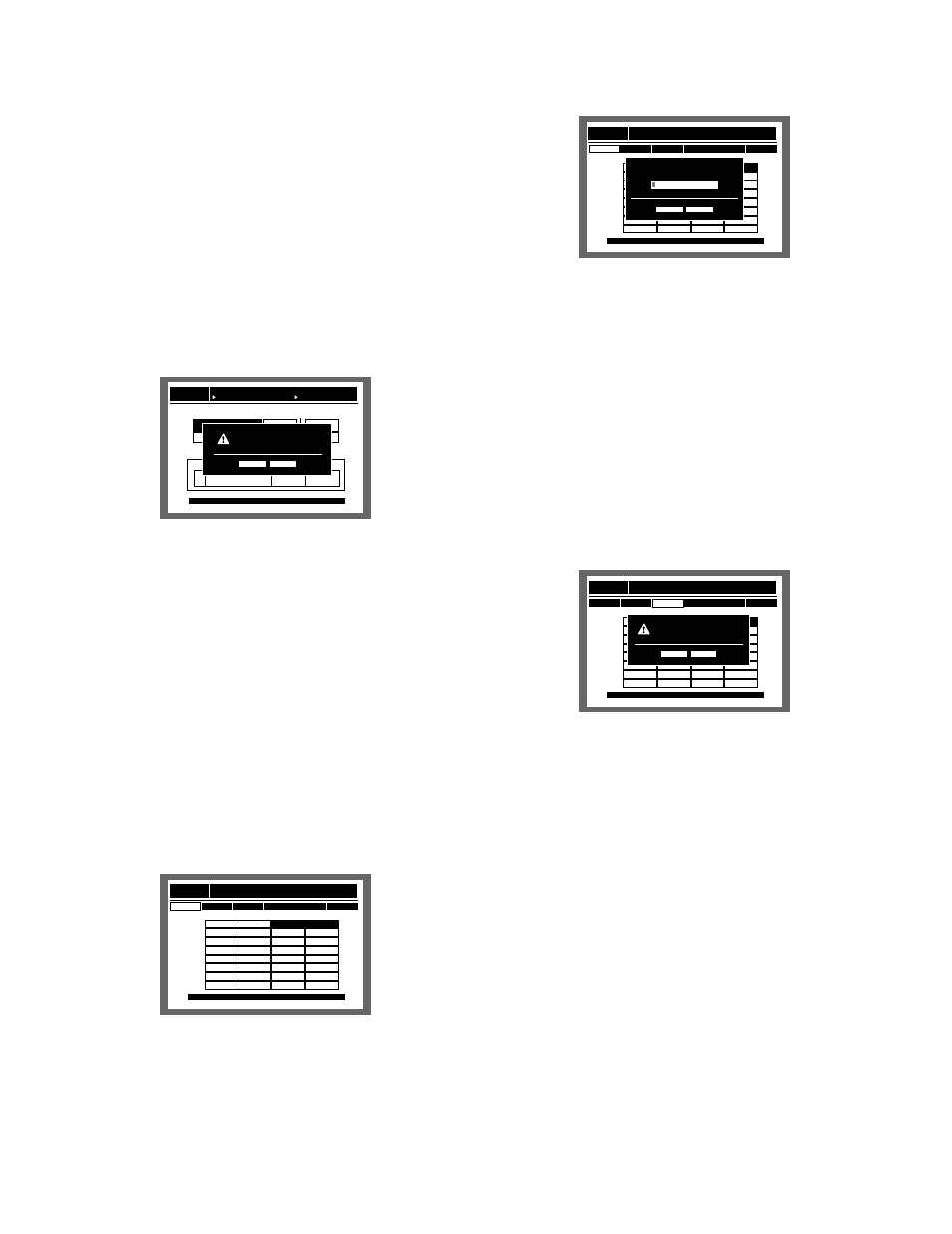

[Screenshot 5]
The confirmation dialog window will be displayed.
, Move the cursor to "EXECUTE" using the arrows button
(A B) and press the SET button.
→ Mirroring will start and the "TOP MENU" of the "HDD
DISK MENU" will be displayed.
● Cancel mirroring (MIRROR OFF)
Do the following to cancel the mirroring function.
z Turn on the power of this unit.
The image saying the system check has been complet-
ed will be displayed.
Press the SET button after the image is displayed.
Note: When the hard disk is replaced or removed, the
"TOP MENU" of the "HDD DISK MENU" will be auto-
matically displayed.
[Screenshot 1]
The "TOP MENU" of the "HDD DISK MENU" will be dis-
played.
x Move the cursor to "MIRROR OFF" using the arrows but-
ton (A B) and press the SET button.
[Screenshot 2]
The password entry window will be displayed.
c Enter the password for an administrator by rotating the
jog dial.
The camera selection buttons ([1] - [10/0] for the WJ-
HD316, [1] - [9], [0] for the WJ-HD309) are available to
enter numbers for password.
The same method is used to enter, insert and delete
characters as for attaching text information to images.
Refer to page 54.
v Move the cursor to "EXECUTE" using the arrows button
(C D) and press the SET button.
[Screenshot 3]
The confirmation dialog window will be displayed.
b Move the cursor to "OK" using the arrows button (A B)
and press the SET button.
→ Mirroring will be canceled.
Note: One of the two hard disks involved in mirroring
will be indicated as "* (capacity)" on the "TOP
MENU" of the "HDD DISK MENU" after canceling the
mirroring function.
● Hard disk recovery (MIRROR ON)
Do the following to recover the hard disk when one of the
hard disks involved in mirroring is damaged while mirroring,
or when one of the hard disks is replaced.
z Turn on the power of this unit.
The image saying the system check has been complet-
ed will be displayed.
Press the SET button after the image is displayed.
Note: When the hard disk is replaced or removed, the
"TOP MENU" of the "HDD DISK MENU" will be auto-
matically displayed.
Digital Disk Recorder
WJ-HD300
HDD DISK MENU
DISK CANDIDATE FOR A FORMAT MIRROR AREA SETUP
110GB
HDD Total capacity:160GB
00GB
Copy area
00GB
Free area
30GB
Normal area Event area
RETURN: [SETUP/ESC] OK : [SET]
EXECUTE CANCEL
Starting mirror format of HDDs
in main unit, and all of data
in HDDs are going to be erased.
Digital Disk Recorder
WJ-HD300
HDD DISK MENU
TOP MENU
FORMAT MIRROR ON REMOVE RESTART EXIT MIRROR OFF
Close the information of recording areas : [SETUP/ESC] OK : [SET]
120GB M
120GB
120GB
120GB
*(120GB)
ADD (120GB)
120GB
LOST
MAIN
EXT7
EXT6
EXT5
EXT4
EXT3
EXT2
EXT1
120GB M
120GB
120GB
120GB
*(ERROR)
ADD (ERROR)
120GB
-
120GB
120GB
120GB
120GB
120GB
120GB
-
120GB
120GB
120GB
120GB
120GB
120GB
-
1 2 3 4
Digital Disk Recorder
WJ-HD300
HDD DISK MENU
TOP MENU
FORMAT MIRROR ON REMOVE RESTART EXIT MIRROR OFF
Close the information of recording areas : [SETUP/ESC] OK : [SET]
120GB M
120GB
120GB
120GB
*(120GB)
ADD (120GB)
120GB
LOST
MAIN
EXT7
EXT6
EXT5
EXT4
EXT3
EXT2
EXT1
120GB M
120GB
120GB
120GB
*(ERROR)
ADD (ERROR)
120GB
-
120GB
120GB
120GB
120GB
120GB
120GB
-
120GB
120GB
120GB
120GB
120GB
120GB
-
1 2 3 4
Enter the password.
EXECUTE CANCEL
Digital Disk Recorder
WJ-HD300
HDD DISK MENU
TOP MENU
FORMAT MIRROR ON REMOVE RESTART EXIT MIRROR OFF
Close the information of recording areas : [SETUP/ESC] OK : [SET]
120GB M
120GB
120GB
120GB
*(120GB)
ADD (120GB)
120GB
LOST
MAIN
EXT7
EXT6
EXT5
EXT4
EXT3
EXT2
EXT1
120GB M
120GB
120GB
120GB
*(ERROR)
ADD (ERROR)
120GB
-
120GB
120GB
120GB
120GB
120GB
120GB
-
120GB
120GB
120GB
120GB
120GB
120GB
-
1 2 3 4
OK CANCEL
Mirror "OFF" in main unit.
