8
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

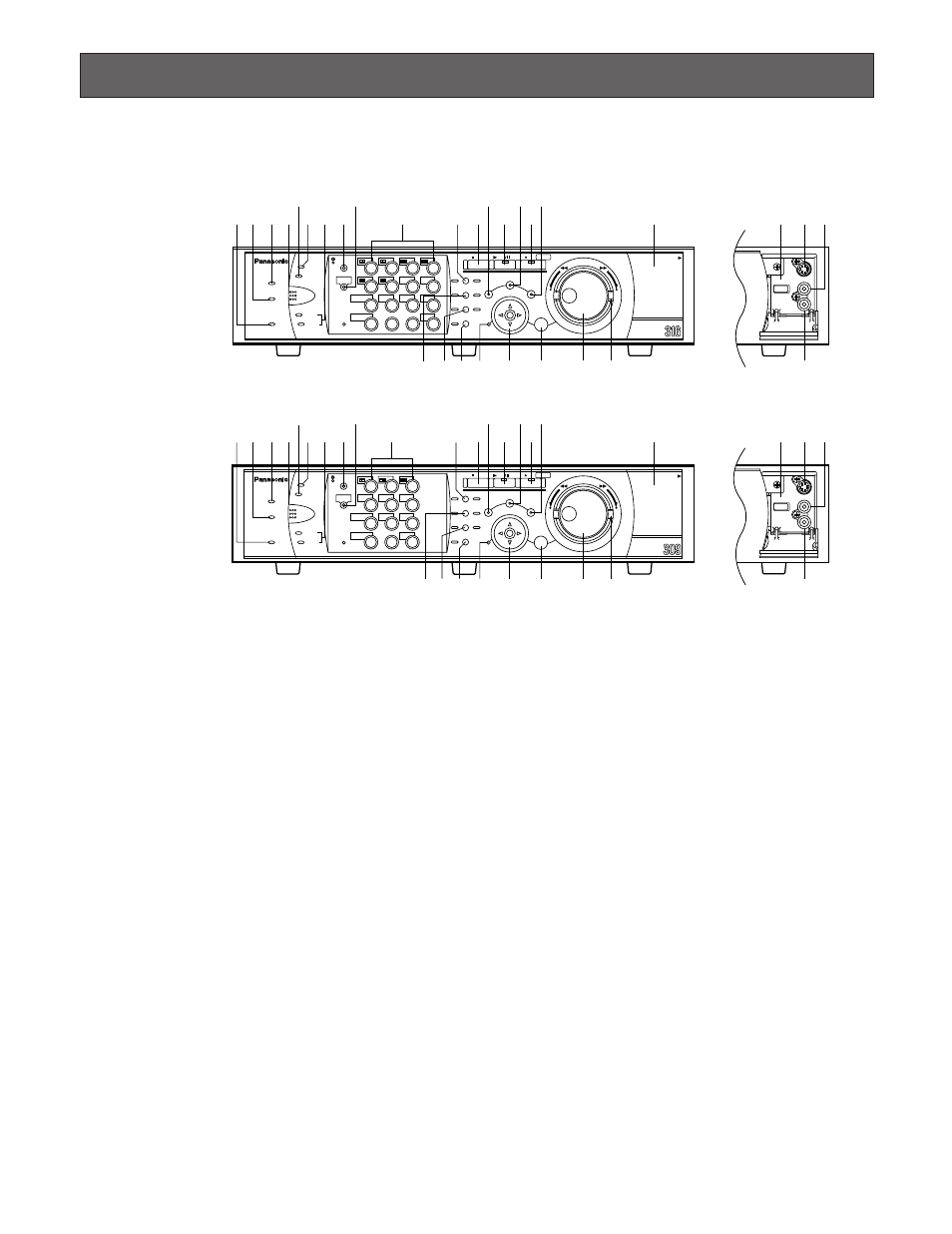

■ Front View
S-VIDEO
COPY 2 VIDEO OUT
AUDIO OUT
S-VIDEO
COPY 2 VIDEO
OUT
AUDIO
OUT
[WJ-HD309]
[WJ-HD316]
ALARM
TIMER
HDD 2
ERROR
HDD 1
ALARM
SUSPEND ALARM
RESET
OPERATE
MONITOR1 MONITOR2
1
5
9
13
2
6
10/0
14
3
7
11
15
4
8
12
16
SEQ SHIFT OSD
PAN/
TILT
STOP PLAY PAUSE REC - REC STOP
ZOOM/
FOCUS
TEXT COPY DISK SELECT
EL-ZOOM
MARK
LOGOUT
IRIS
PRESET
/AUTO
A-B
REPEAT
GOTO
LAST
LISTED
SEARCH
BUSY
SETUP /ESC
SET
REV
– +
FWD
PULL
Digital Disk Recorder
WJ-HD
PAN/TILT
SLOW
LOGOUT
ALARM
TIMER
HDD 2
ERROR
HDD 1
ALARM
SUSPEND ALARM
RESET
OPERATE
MONITOR1 MONITOR2
1
4
7
2
5
8
0
3
6
9
TEXT SEQ SHIFT OSD
ZOOM/
FOCUS
COPY DISK SELECT
EL-ZOOM
MARK
IRIS
PRESET
/AUTO
A-B
REPEAT
GOTO LAST
LISTED
SEARCH
BUSY
SETUP
/ESC
SET
REV
– +
FWD
PULL
Digital Disk Recorder
WJ-HD
STOP PLAY PAUSE REC - REC STOP
PAN/TILT SLOW
PAN/ TILT
qw e r
t
yu i
o !8 !9 @0
!0 !1
!3 !4 @1 @2 @3 @4 @5 #0 !2
!5 !6 !7 @6 @7 @8 @9
qw e r
t
yu i
o !8 !9 @0
!0 !1
!3 !4 @1 @2 @3 @4 @5 #0 !2
!5 !6 !7 @6 @7 @8 @9
q Operate Indicator (OPERATE)
Lights up when the power is turned on.
w Alarm Suspension Indicator (ALARM SUSPEND)
Lights up when the alarm suspension mode is selected.
e Alarm Indicator (ALARM)
Blinks when an alarm occurs, and lights steadily when
the activated alarm is reset automatically.
To turn this indicator off, press the ALARM RESET but-
ton.
r Alarm Reset Button (ALARM RESET)
Pressing this button cancels alarm activation, and
returns the system to the condition before the alarm
was activated.
t Error indicator (ERROR)
Blinks orange when an error occurs that will not keep
the unit from running .
Blinks red when an error occurs that may cause the
system to go down.
y Timer Indicator (TIMER)
Lights up when the schedule recording is set, and
blinks while the schedule recording is being performed.
u HDD Access Indicators (HDD1/HDD2)
Blinks when the HDD1 or the HDD2 is accessed
respectively.
i Monitor Switch button (MONITOR1/MONITOR2)
Pressing this button switches the monitor. This button
lights up when monitor 1 is selected, and goes off when
monitor 2 or the VGA monitor is selected.
o Shift Button (SHIFT)
Toggles the functions of the camera selection buttons.
!0 Camera Selection Buttons ([1] - [10/0], [11] - [16] for
the WJ-HD316, [1] - [9], [0] for the WJ-HD309)
Pressing a button displays live or playback images of
the selected camera. The LED in the button indicates
the status as follows.
Green: When a button is lit green, the currently dis-
played image on the monitor is live from a respec-
tive camera.
Orange: When a button is lit orange, the image from a
respective camera is recorded.
Blue: When a button is lit blue, the currently displayed
image on the monitor is live from a respective cam-
era and is also recorded.
