Page 34

⁄0

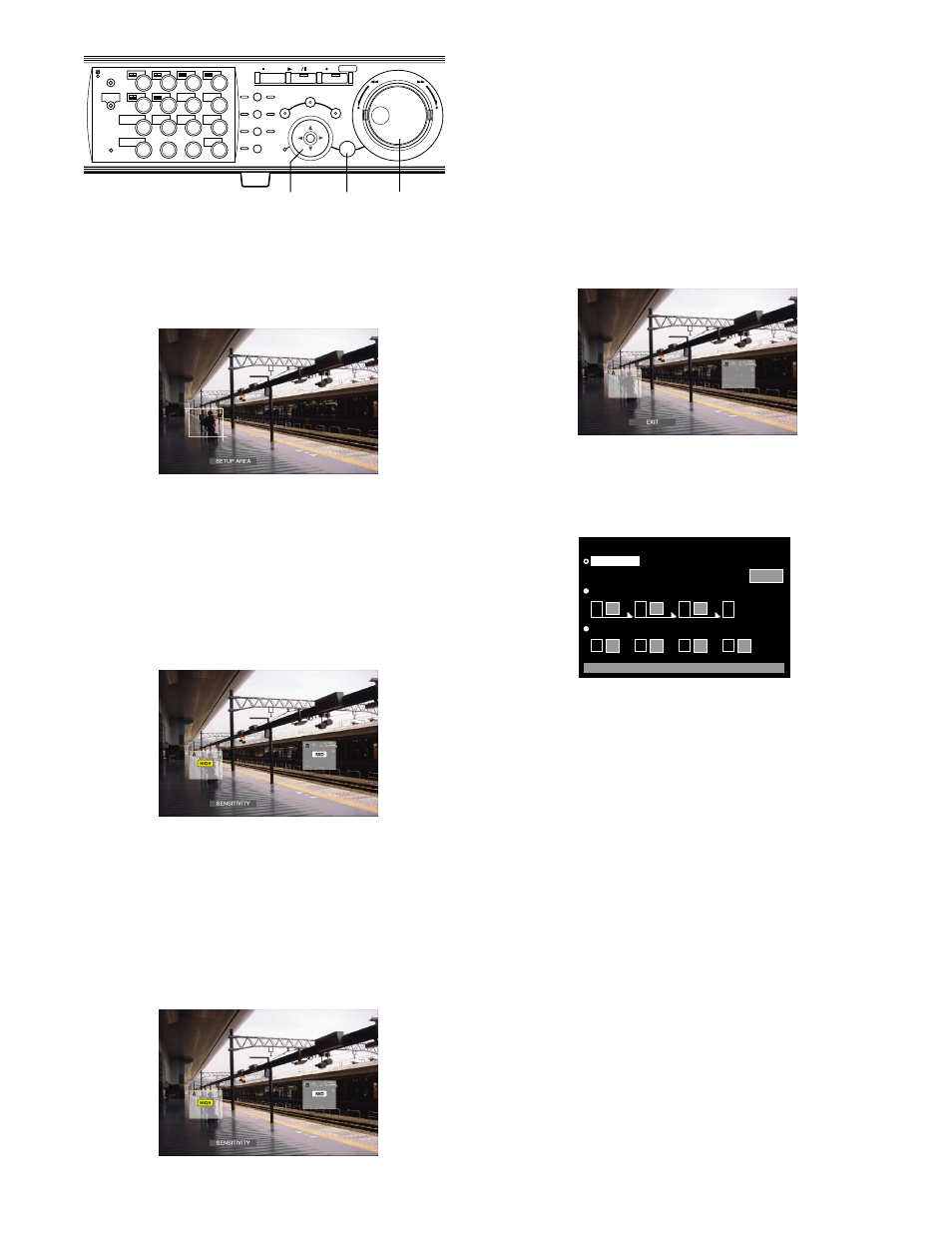

Select the sensitivity using the arrows button
(D C) from the following.

OFF: Motion will not be detected
LOW: Low sensitivity
MID: Standard sensitivity
HIGH: High sensitivity

⁄1

Rotate the jog dial to select "EXIT" on the sta-
tus bar to exit from the motion detection area
setup window.

⁄2

Press the SET button to display the VMD
search window.

Refer to page 36 for further information about each of the
detection modes.

VECTOR

ANY AREA

MASKING DURATION

SET : [SET] SEARCH : [PLAY] CANCEL : [ESC]

■ VMD SEARCH

DURATION

24H

20 s

Move the cross cursor using the arrows button
to a point to be determined as the end point of
the motion detection area.

Press the SET button to determine the selected point as the
end point of the motion detection area.
It is possible to set up to 4 motion detection areas by
repeating step 6 and 7.

Rotate the jog dial to select "SENSITIVIY" on
the status bar.

Note: Depending on the position of the set detection areas,

the sensitivity indications of the detection areas may be
displayed overlapping each other.

Move the cross cursor to the motion detection
area to apply the sensitivity using the arrow
button (A B).

LOGOUT

MONITOR1

MONITOR2

10/0

SHIFT

SEQ

COPY

DISK SELECT

EL-ZOOM

TEXT

LOGOUT

OSD

MARK

BUSY

316

REV

FWD

STOP

PLAY

PAUSE

REC - REC STOP

SETUP

/ESC

PAN/TILT

SLOW

A-B

REPEAT

GOTO

LAST

LISTED

ZOOM/
FOCUS

IRIS

PRESET

/AUTO

SET

–

PAN/

TILT
