FastTrak100 User Manual

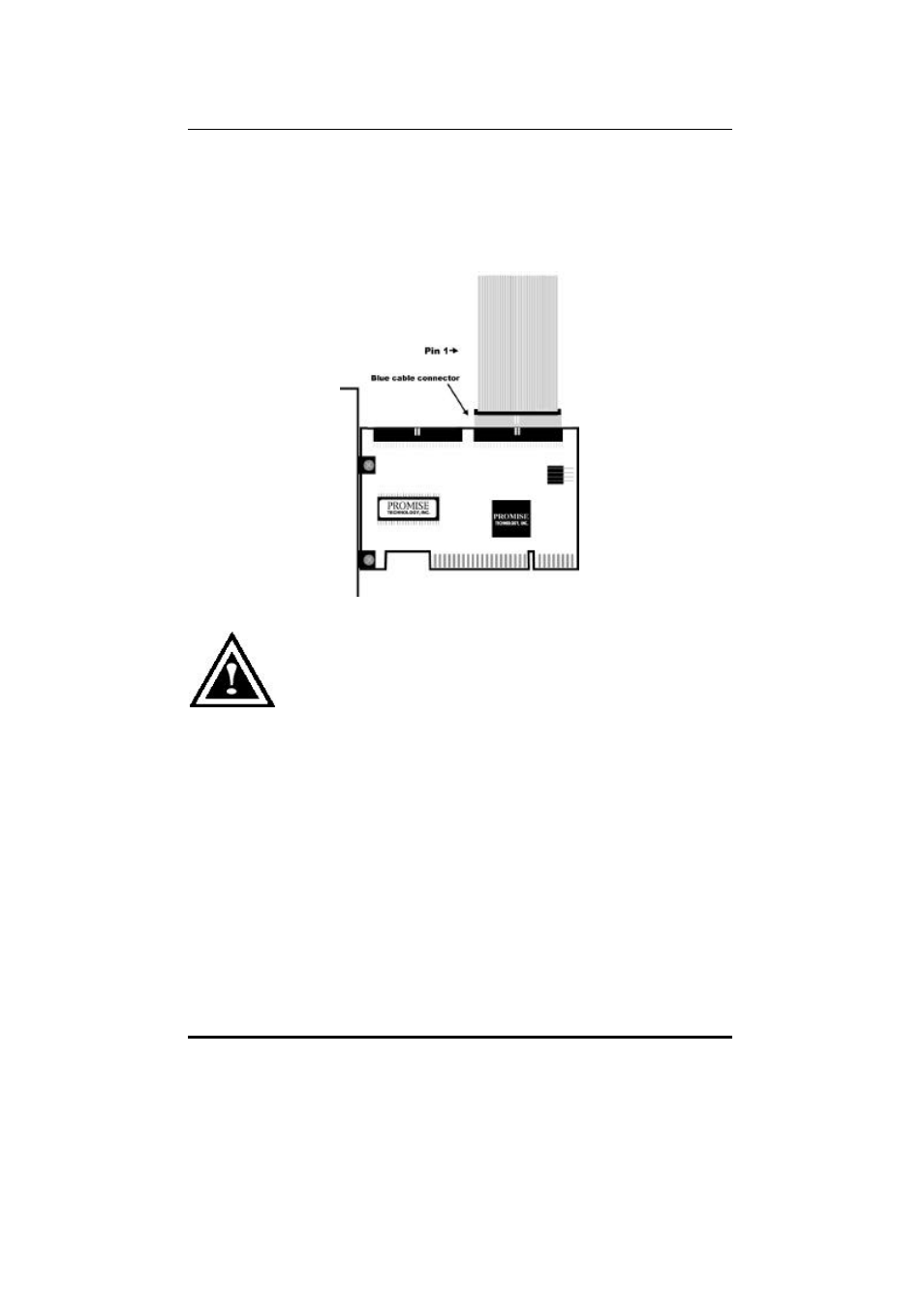

4. Attach one Ultra ATA cable to each hard drive. Then attach one cable to each

of the IDE connectors on the FastTrak100 controller card. The colored edge of
the cable(s) indicates pin 1 (see below), and the blue cable connector must be
attached to the FastTrak100 or Ultra100 ATA connector.

NOTE: You must use an 80-wire, 40-pin cable when connecting an

Ultra ATA/100 hard drive to the FastTrak100 controller card. The

FastTrak100 package contains two 80-wire, 40-pin cables.
