Installing The Card
Installing the FastTrak100 controller card in a system is a simple process. The
card fits into any available 32-bit PCI slot on the system’s motherboard (see figure
below).
1. Remove the cover of your system.
2. Remove the inside slot cover of an available 32-bit PCI slot on the motherboard.
3. Install the FastTrak100 controller card into the open slot (see Figure 1 below).
4. Attach your system case’s 2- or 4-pin LED cable to the LED connector on the
FastTrak100 controller card (see figure next page). Make sure that pin 1 on the
connector is aligned with pin 1 of the cable.
5. Fasten the controller card bracket to the system case (see below).

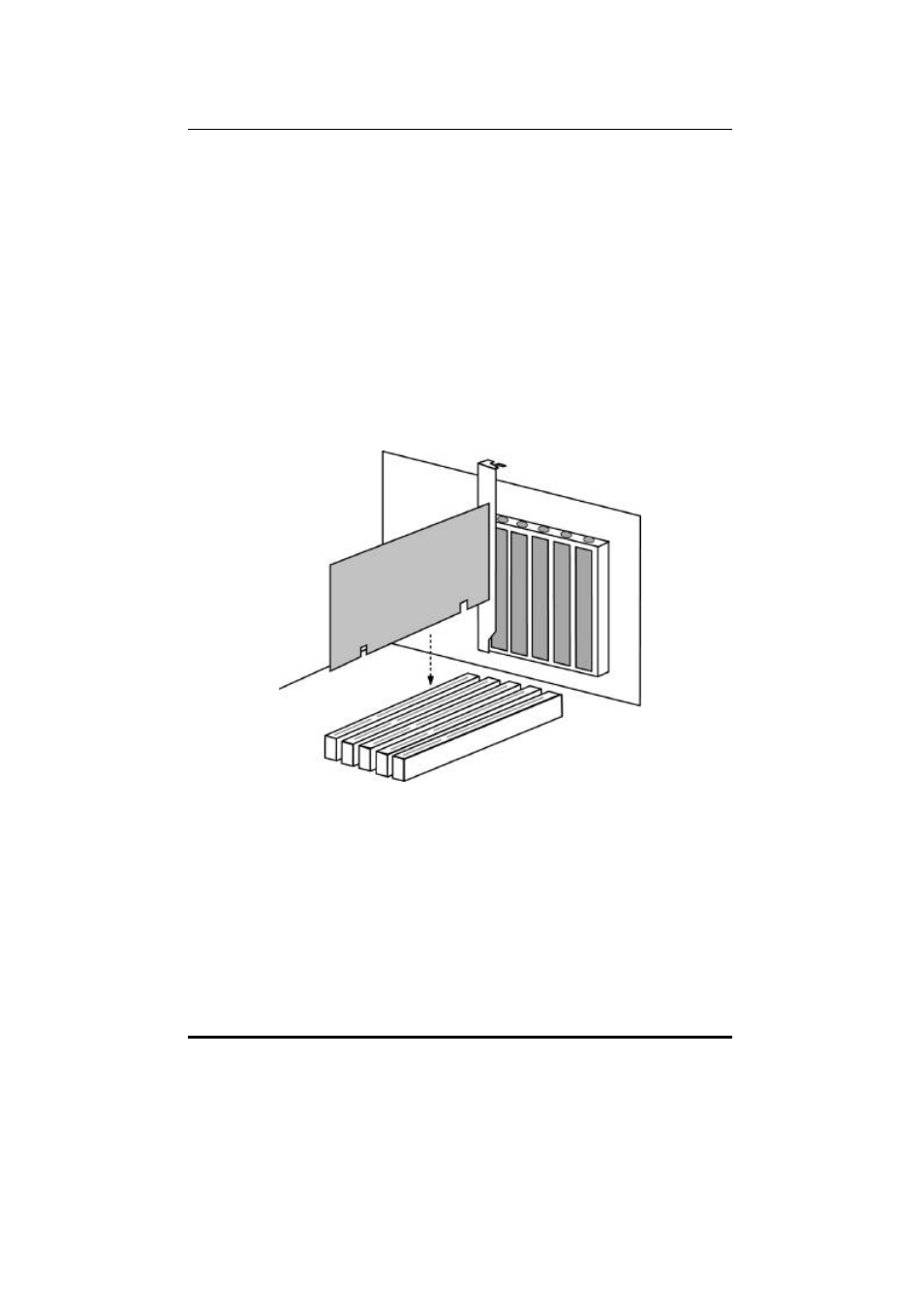

Figure 1
