Setting Jumpers 197
Introduction
2-Port IOLAN
To change the settings, do the following:
1. Unplug the IOLAN from the electrical outlet and disconnect everything from the box.
2. Open the case by unscrewing the two side screws, one on each side, and lifting off the top of the

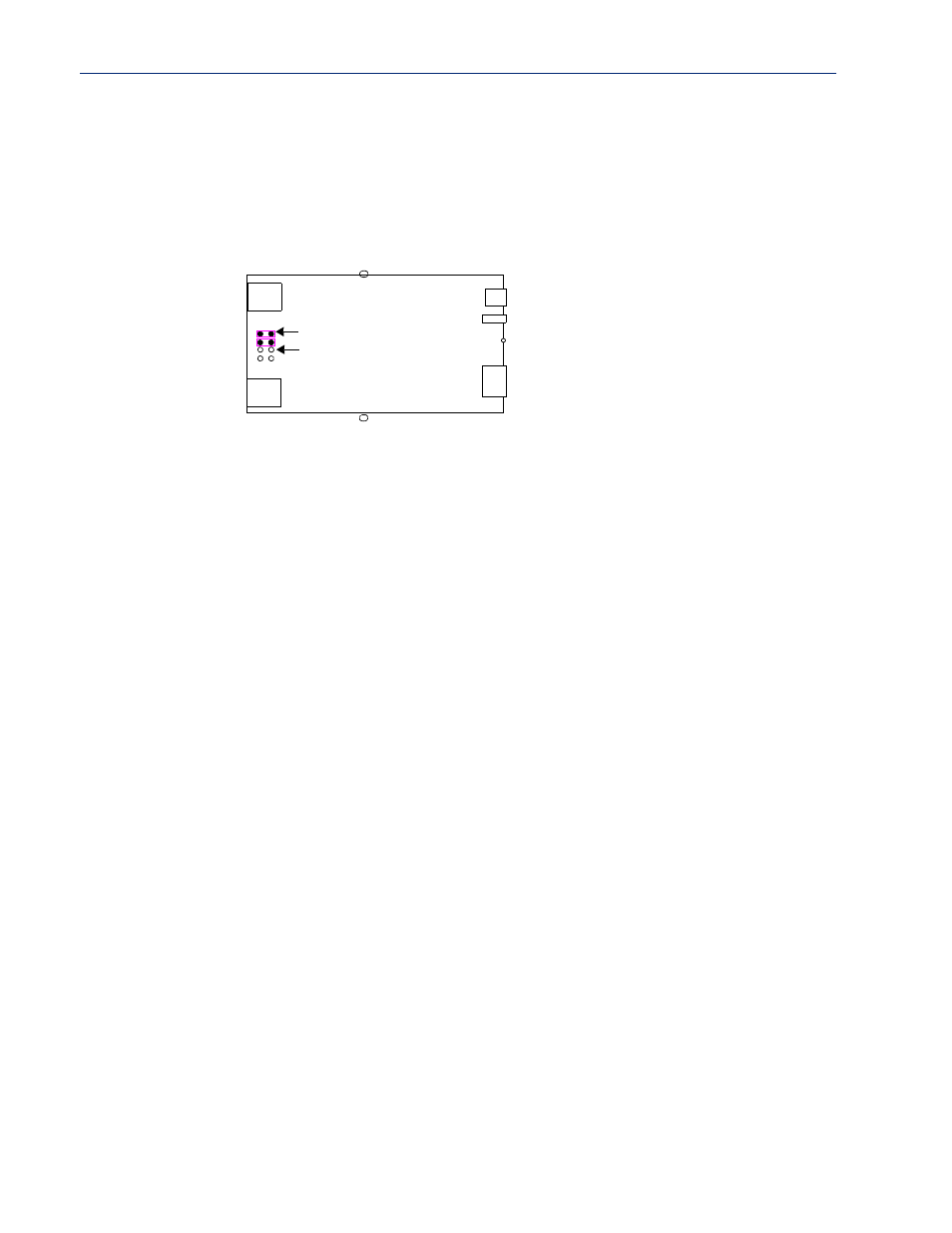

case. You should see the following:
3. To turn line termination on for Line 1, locate and jumper both J7 and J8 (as shown in the
diagram). To turn line termination on for Line 2, locate and jumper both J11 and J9.
4. Close the IOLAN case by replacing the case lid and the two screws. You can now power it on
with the new settings.
Power
DIP
Switch
Reset
RJ45
RJ45
Pi
n
1
Screw
Screw
J8
J1
1
J9
RJ45
J7
1
2
