Serial Port Profiles
Modbus Slave IP Settings Field Descriptions

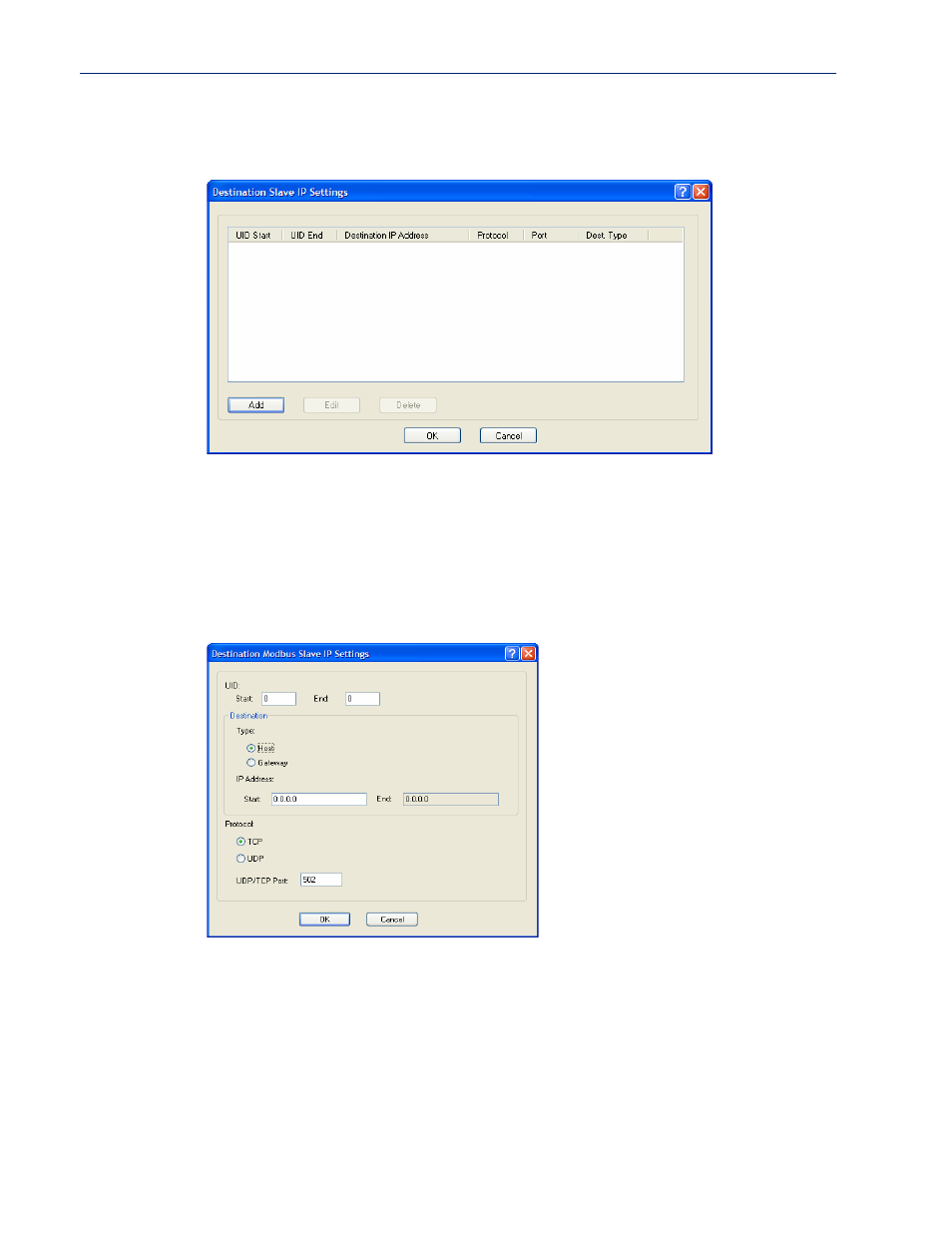

This window is used to configure the Modbus Slaves.
The following buttons are available:
Adding/Editing Modbus Slave IP Settings
Configure the following parameters:
Add Button
Adds an entry into the Modbus Destination Slave IP Settings table.
Edit Button
Edits an entry in the Modbus Destination Slave IP Settings table.
Delete Button
Deletes an entry from the Modbus Destination Slave IP Settings table.
UID Start
When
Destination
is set to
Host
and you have sequential Modbus Slave IP
addresses (for example, 10.10.10.1, 10.10.10.2, 10.10.10.3, etc.), you can
specify a UID range and the IOLAN will automatically increment the last digit
of the configured IP address. Therefore, you can specify a UID range of 1-100,
and the IOLAN will route Master Modbus messages to all Modbus Slaves with
IP addresses of 10.10.10.1 - 10.10.10.100.
Range: 1-247
Default: 0 (zero)
