Serial Port Profiles
102 IOLAN DS1/TS2 User’s Guide, Version 3.4

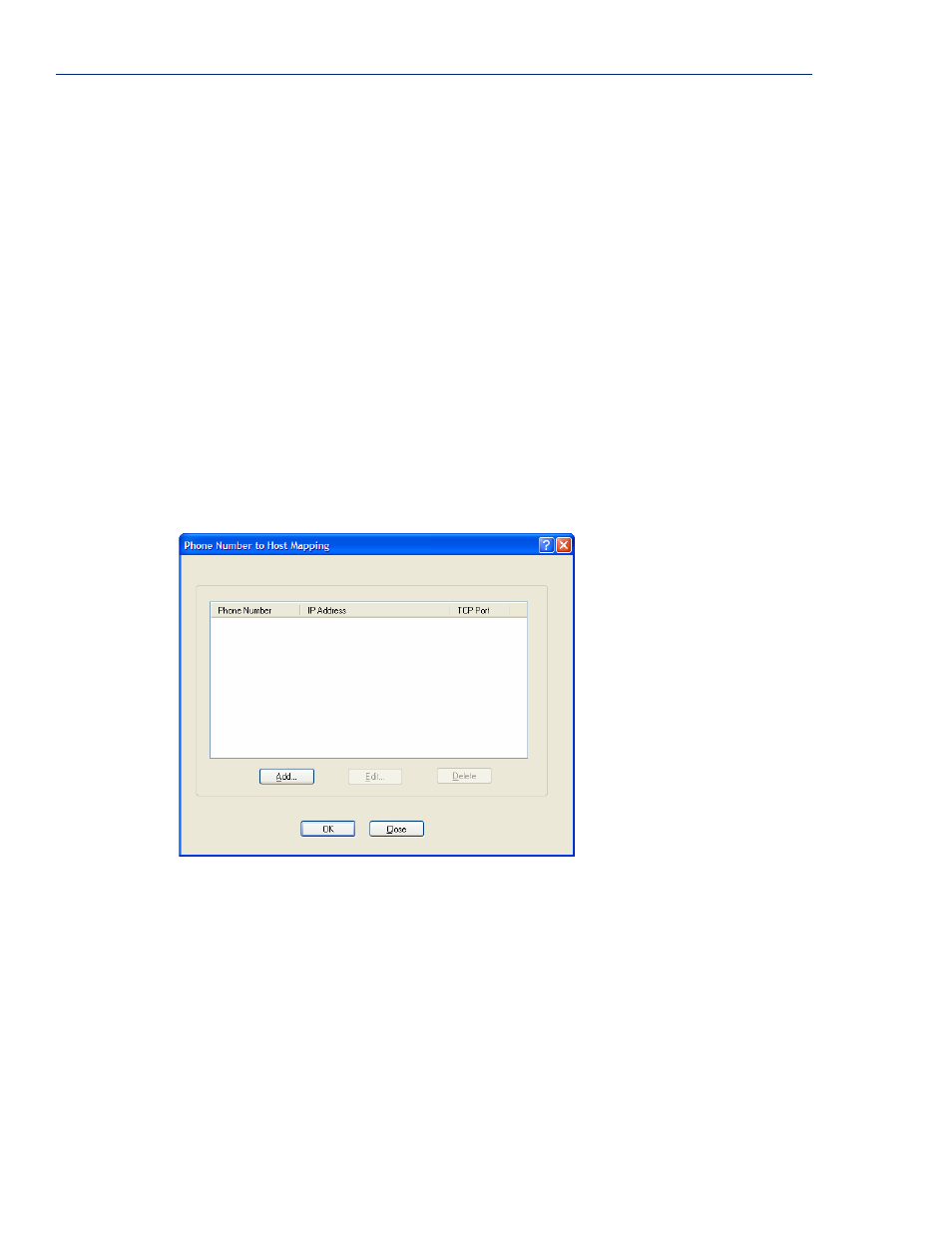

Phone Number to Host Mapping
If your modem application dials using a phone number, you can add an entry in the Phone Number to
Host Mapping window that can be accessed by all serial ports configured as Virtual Modem. You
need to enter the phone number sent by your modem application and the IOLAN IP address and TCP
Port that will be receiving the ’call.’ The DS1 supports up to 4 entries and the TS2 supports up to 8
entries.
The following buttons are available:
Additional modem
initialization You can specify additional virtual modem commands that will affect how
virtual modem starts. The following commands are supported: ATQn, ATVn,
ATEn, +++ATH, ATA, ATI0, ATI3, ATS0, AT&Z1, AT&Sn, AT&Rn, AT&Cn,
AT&F, ATS2, ATS12, ATO (ATD with no phone number), and ATDS1.
See Appendix A, Virtual Modem AT Commands on page 185 for a more
detailed explanation of the support initialization commands.
Enable Message of
the Day (MOTD) When enabled, displays the Message of the Day (MOTD) when a successful
virtual modem connection is made.
Default: Disabled
AT Command
Response Delay The amount of time, in milliseconds, before an AT response is sent to the
requesting device.
Default: 250 ms
Add Button Click the Add button to display a window that allows you to configure the
phone number or AT command your modem application sends and the
IOLAN’s IP address and TCP port number that is receiving the call.
Edit Button Click on a phone number entry and click the Edit button to change any values
configured for the phone number.
Delete Button Click on a phone number entry and click the Delete button to remove it from
the phone number list.
