Hardware and Connectivity 25
Getting to Know Your IOLAN
z Serial Activity
z Tx—Flashes with transmit serial activity. There is a Tx LED for each serial port.
z Rx—Flashes with receive serial activity. There is an Rx LED for each serial port.
z Ethernet—The Ethernet connector.

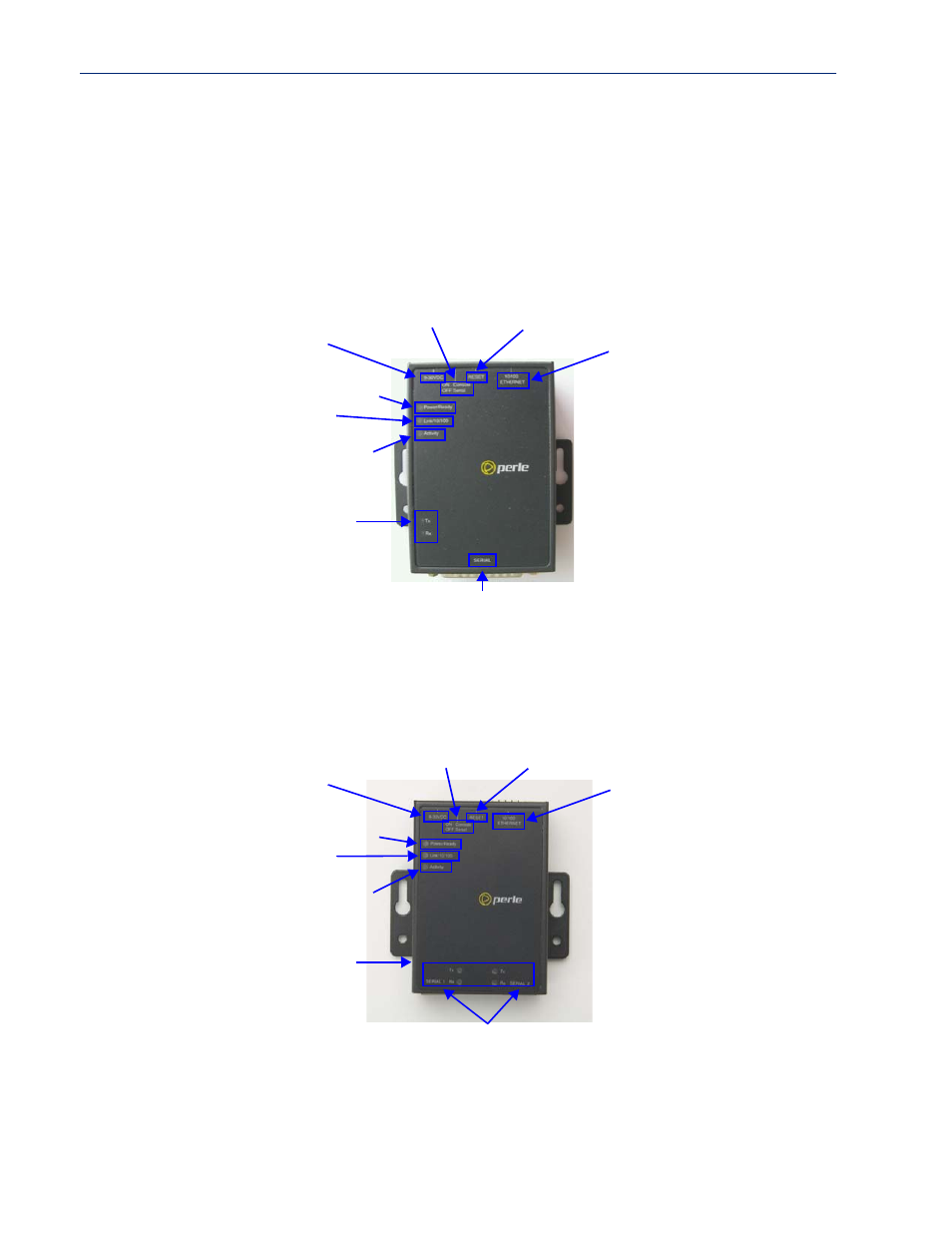

DS1
This section describes the components found on the IOLAN DS1 model.
The IOLAN DS1 has one serial connection that is one of the following connectors: DB25 male,
DB25 female, RJ45, or DB9 male.
TS2
This section describes the components found on the IOLAN TS2 model.
The 2-port IOLAN has two RJ45 serial connections.
Serial Activity
Power/Ready
Link/10/100
Activity (LAN)
Serial Port
External Power Supply
Console/Serial
Switch Reset
Ethernet
Serial Activity
Power/Ready
Link/10/100
Activity (LAN)
Serial Ports
External Power Supply
Console/Serial
Switch Reset
Ethernet
