Controlling the I/O
Channels
Chapter 12
12
Introduction

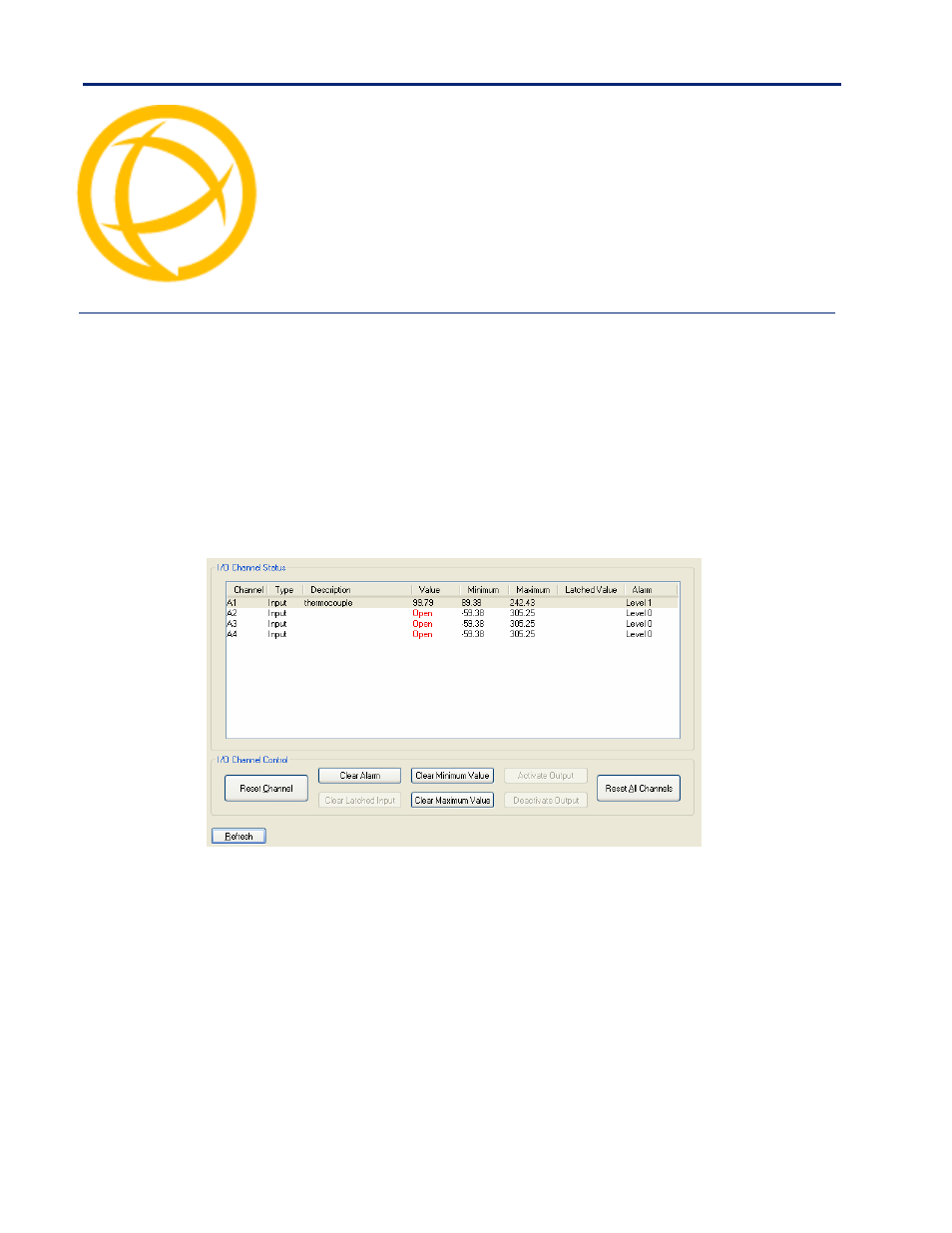

The Control section appears when the IOLAN is connected to an I/O model.
I/O Channels
Overview
When the DeviceManager is connected to an I/O model IOLAN, the I/O Status/Control option is
available. You can view the I/O status and manually control such options as clearing alarms, clearing
minimum/maximum values, resetting the channel(s), and activating/deactivating output.
The following buttons are available:
Reset Channel
Button Resets the highlighted channel (click on a channel to highlight it).
Clear Alarm
Button Clears the alarm. Note that if the condition that tripped the alarm still exists, the
alarm will not look like it’s cleared, but will reflect the appropriate alarm level
severity. Alarm Level 0 means that the alarm has not been triggered.
Clear Latched
Input Button Clears the latched value.
Clear Minimum
Value Button Clears the minimum value.
Clear Maximum
Value Button Clears the maximum value.
