32

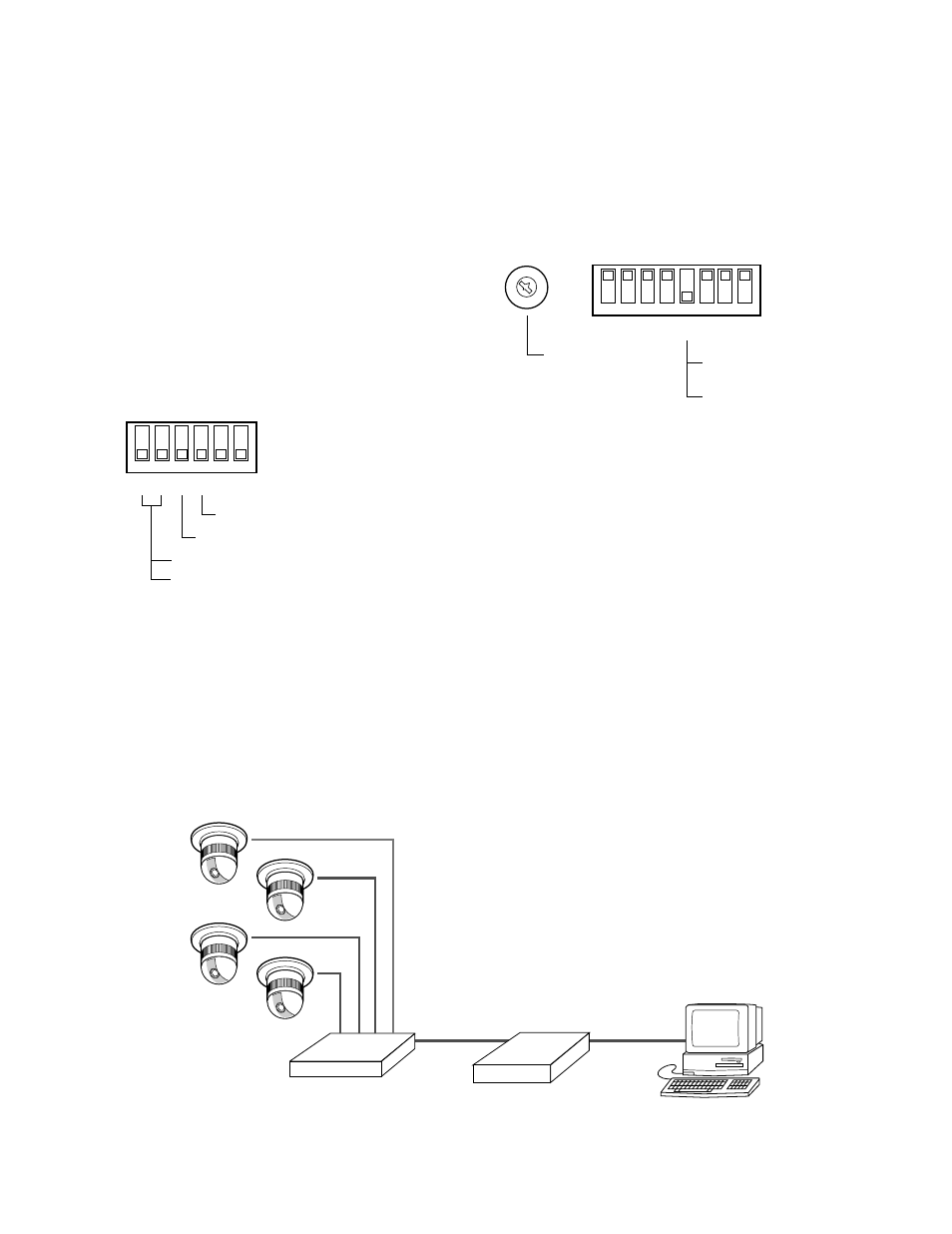

● DIP Switch Setting on the Control Site
1. Set the WJ-NT204 Rear DIP Switch as follows. This set-
ting applies when connecting with PS • Data devices
such as System Controller on the Control site.
Bit # 1: ON/OFF Termination, set to ON at the chain
end of the RS-485 DATA line, other-
wise OFF.
Bit # 2: ON/OFF Termination, set to ON at the chain
end of the RS-485 DATA line, other-
wise OFF.
Bit # 3: OFF Straight wiring for RS-485 DATA
PORT
Bit # 4: OFF RS-485 DATA port is selected.
Bit # 5: ON/OFF Termination, set to ON at the chain
end of the RS-485 HOST line, other-
wise OFF.
Bit # 6: ON/OFF Termination, set to ON at the chain
end of the RS-485 HOST line, other-
wise OFF.
ON
OFF
6 5 4 3 2 1
OFF: Open for Lines
ON: Termination for
RS-485 (PS.Data) Lines
System Controller
WV-CU360
8 7
0
9
8
7
6 5
4
3
2
1
Set the unit number
ON
OFF
6 5 4 3 2 1
OFF, OFF: Open for DATA Line
OFF: Straight wiring for RS-485 DATA PORT
ON, ON: Termination for DATA Lines
OFF: RS-485 DATA PORT selected
WJ-NT204 (Receiver)
SETUP DIP Switch
■ PC Connection
Connect the Remote site unit to the PC via a hub with Ethernet straight cables as shown below.
For more details, refer to LAN TYPE CONNECTION on page 66.
Connection to a Client PC via Hub
PC (browser)
Hub
Ethernet
straight cable
Ethernet
straight cable
WJ-NT204 Network
Interface Unit for remote site
Combination Cameras (4)
2. Set the DIP Switch and Unit Number Switch on the rear
of the System Controller WV-CU360 as follows. For
details refer to the manual included in the System
Controller.
DIP Bit #5: ON/OFF Termination for RS-485
(PS
• DATA), set to ON at the
RS-485 chain end, otherwise
set to OFF.
Unit Number: Set to 1.
