129

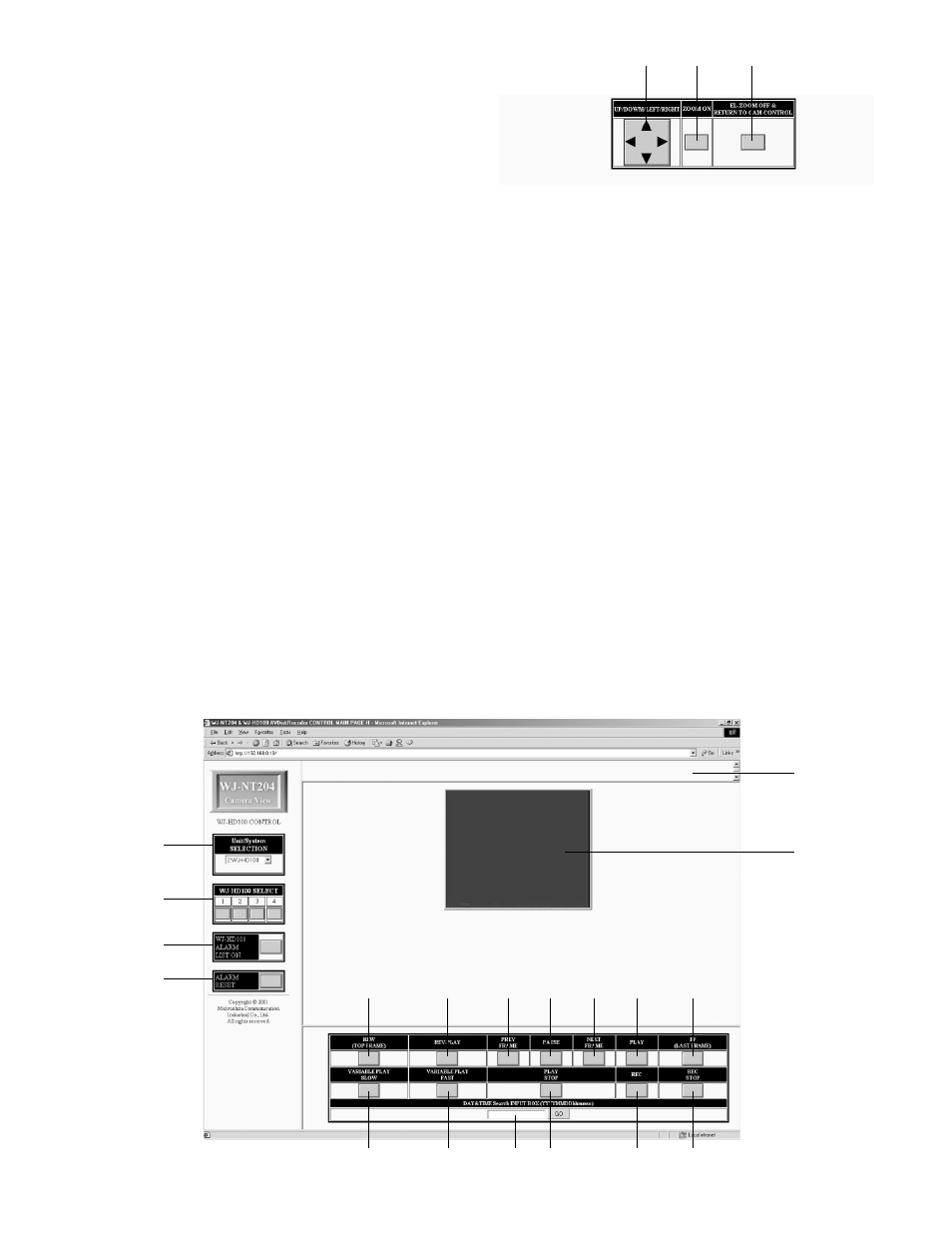

!3 UP/DOWN/LEFT/RIGHT Buttons
These buttons move the + sign to the area you wish to
enlarge in the Image Display. After zooming, the but-
tons scroll the enlarged image up, down, right or left.
!4 EL ZOOM ON
Clicking this will enlarge the image designated with the
+ sign.
!5 EL ZOOM OFF & RETURN TO CAMERA CONTROL
Resets EL ZOOM function to the normal display.
u EL ZOOM
Opens the EL ZOOM panel on the bottom center of the
window while + sign is displayed in the Image Display
representing the center of the area to be enlarged.
i VCR/CAM SELECT
Switches the output of the video multiplexer between
VCR playback and camera image.
o ALARM RESET
Resets the alarm mode activated on the WJ-FS416.
!0 Status Window
Displays information when an alarm is activated on the
WJ-FS416.
!1 Image Display
Displays the output image supplied from the WJ-
FS416.
!2 Camera Control Buttons
These buttons control the combination cameras select-
ed with CAMERA SELECT button.when the cameras
are connected to WJ-FS416 via WJ-MP204.
● Control Operation for Digital Hard Disk Recorder (WJ-HD100)
To change the window to WJ-HD100 CONTROL, follow the steps below.
1. In the FS-416 Control window, click VCR/CAM SELECT button to display the image supplied by the WJ-HD100.
2. In the FS-416 Control window, select UNIT #2 with the pull down button of the Unit/System SELECT area. The WJ-HD100
CONTROL window is displayed.
!3 !4 !5
q
w
e
r
t
y
u
!4 !5 !6 !9 !7 !8
i o !0 !1 !2 !3
