24

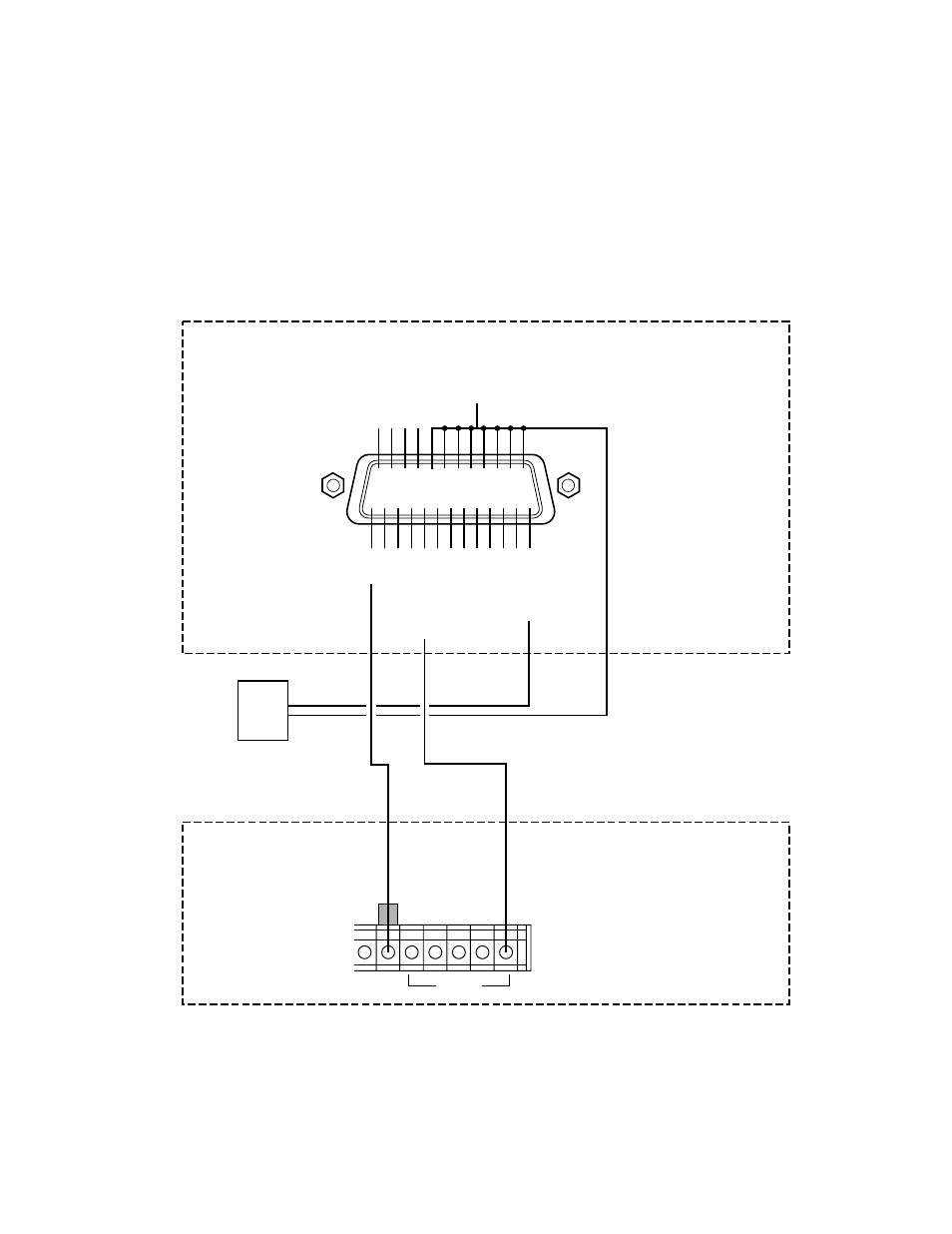

● Control Device Connection on the Remote Site
1. SENSOR IN/TRIGGER OUT Connections
Two connection examples are shown in this page, but there may be more applications. Consult the manuals included in
the equipment for the system configuration you need.
In the first example, a sensor input lets the Network Interface Unit supply the sensor-related camera picture to the
MON/SPOT terminal. Sensor input signals are relayed to the trigger out terminals. A TRIGGER OUT lets the Digital Disk
Recorder enter the Alarm recording in that the sensor-related images are recorded.
See page 26 for electrical specifications.
TRIGGER OUT 8
q
!4 !5 !6 !7 !8 !9 @0 @1 @2 @3 @4 @5
w e r t y u i o !0 !1 !2 !3
TRIGGER OUT 6
TRIGGER OUT 7
TRIGGER OUT 4 TRIGGER OUT 2
G
N
D
G
N
D
TRIGGER OUT 5 TRIGGER OUT 3 TRIGGER OUT 1
SENSOR IN 8 SENSOR IN 7 SENSOR IN 6 SENSOR IN 5 SENSOR IN 4 SENSOR IN 3 SENSOR IN 2 SENSOR IN 1
ALARM
RECALL OUT RECOVER OUT RESET IN IN G
Digital Disk Recorder
Sensor
Network Interface Unit
