THEORY OF OPERATION

E-6

E-6

POWER WAVE 450

OUTPUT RECTIFIER AND CHOKE

The Output Rectifier receives the AC output from the
Main Transformer secondary and rectifies it to a DC
level with a 40 kHz ripple.

Since the Output Choke is in series with the positive
leg of the Output Rectifier and also in series with the
welding load, a filtered DC output is applied to the
machine output terminals.

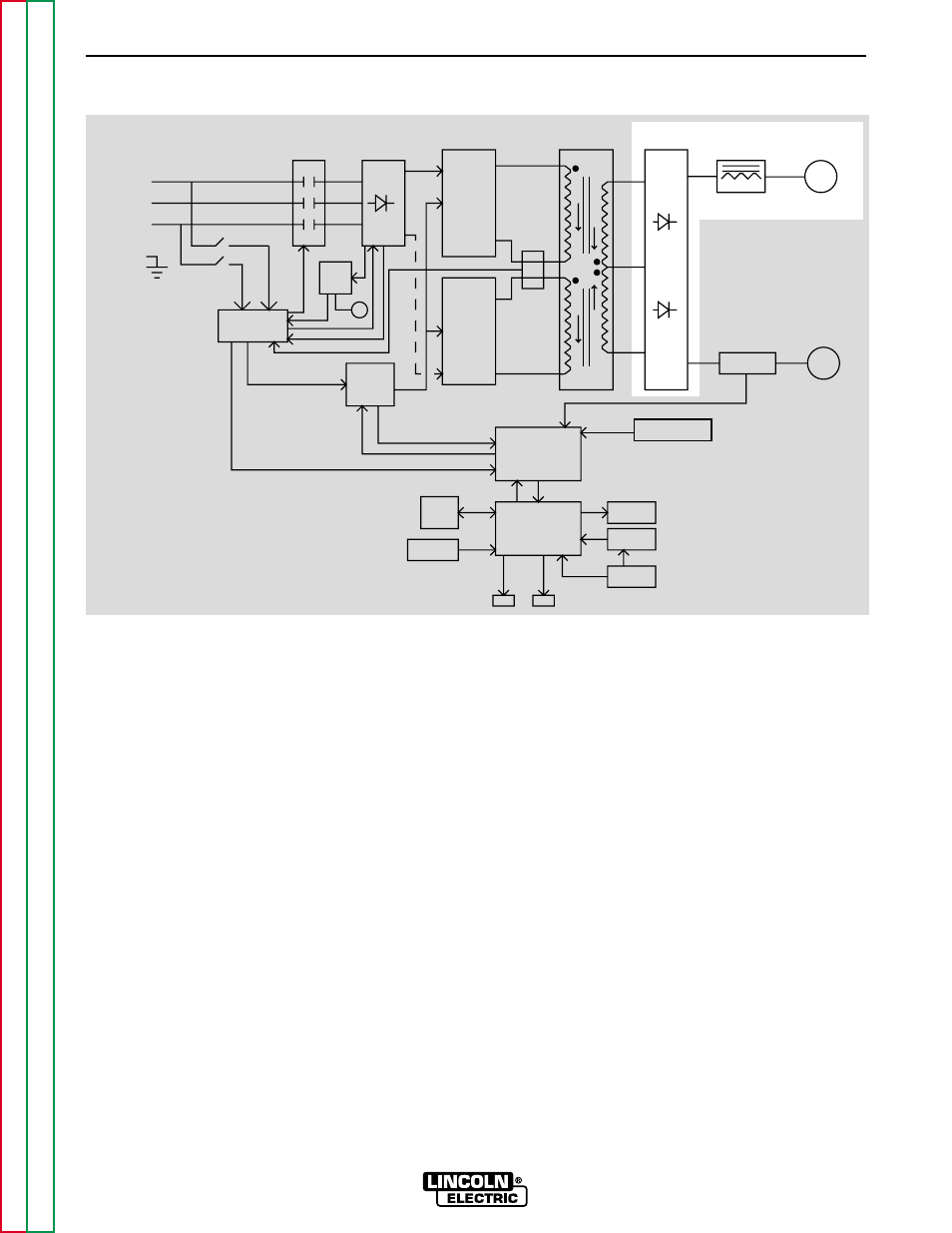

FIGURE E.6 – OUTPUT RECTIFIER AND CHOKE

NOTE: Unshaded areas of Block Logic Diagram are the subject of discussion.

CONTROL

BOARD

DISPLAY

BOARD

PROTECTION

BOARD

AUX.

TRANS

POWER
BOARD

CT

CONTACTOR

INPUT

INPUT

RECTIFIER

AND

RECONNECT

SWITCH

BOARD

FET

ASSEMBLY

SWITCH

BOARD

FET

ASSEMBLY

MAIN

TRAMSFORMER

OUTPUT

RECTIFIER

SHUNT

CHOKE

POSITIVE

NEGATIVE

SNUBBER

AND

LEADS

SENSE

LCD

DISPLAY

KEYPAD

OVERLAY

WATER

COOLER

PC

INTERFACE

INPUT

LINE

SWITCH

FAN

WF1

WF2

THREE
PHASE
INPUT
POWER

LEFT

RIGHT
