voltage is 25VDC. NOTE: Monitor both capaci-
tor voltages. If the two voltages are not within 5
to 8 VDC of each other STOP and check wiring
to the FET switch board assembly and also the
individual switch boards. See Figure F.77.

5. Adjust the grid load to get 5 amps output from

the Power Source. DO NOT PULL MORE
THAN 7-8 AMPS OUTPUT FROM THE
POWER WAVE.

6. Repeat the previous Snubber Signal Test by

checking the eight test points.

OUTPUT SIGNAL TEST
1. Make certain the machine is configured for

460VAC operation.

2. Turn ON the variable AC supply applied to the

primary circuit. See Figure F.76.

3. Turn ON the arc start switch. See Arc Start

PW450 or Figure F.79.

4. Slowly increase the voltage until the filter capac-

itor voltage is 25VDC. See Figure F.77.

5. Adjust the grid load to get 5 amps output from

the Power Wave. DO NOT DRAW MORE
THAN 7-8 AMPS OUTPUT FROM THE
POWER WAVE.

6. Set the Oscilloscope for:

5 V/div.
10 uS/div.

ALL METERS AND OSCILLOSCOPES MUST BE
ELECTRICALLY ISOLATED.

7. Connect the positive oscilloscope probe to the

Power Wave positive welding output terminal
and the negative probe to the negative welding
output terminal. The output should look like the
oscilloscope picture in Figure F.83.

WARNING

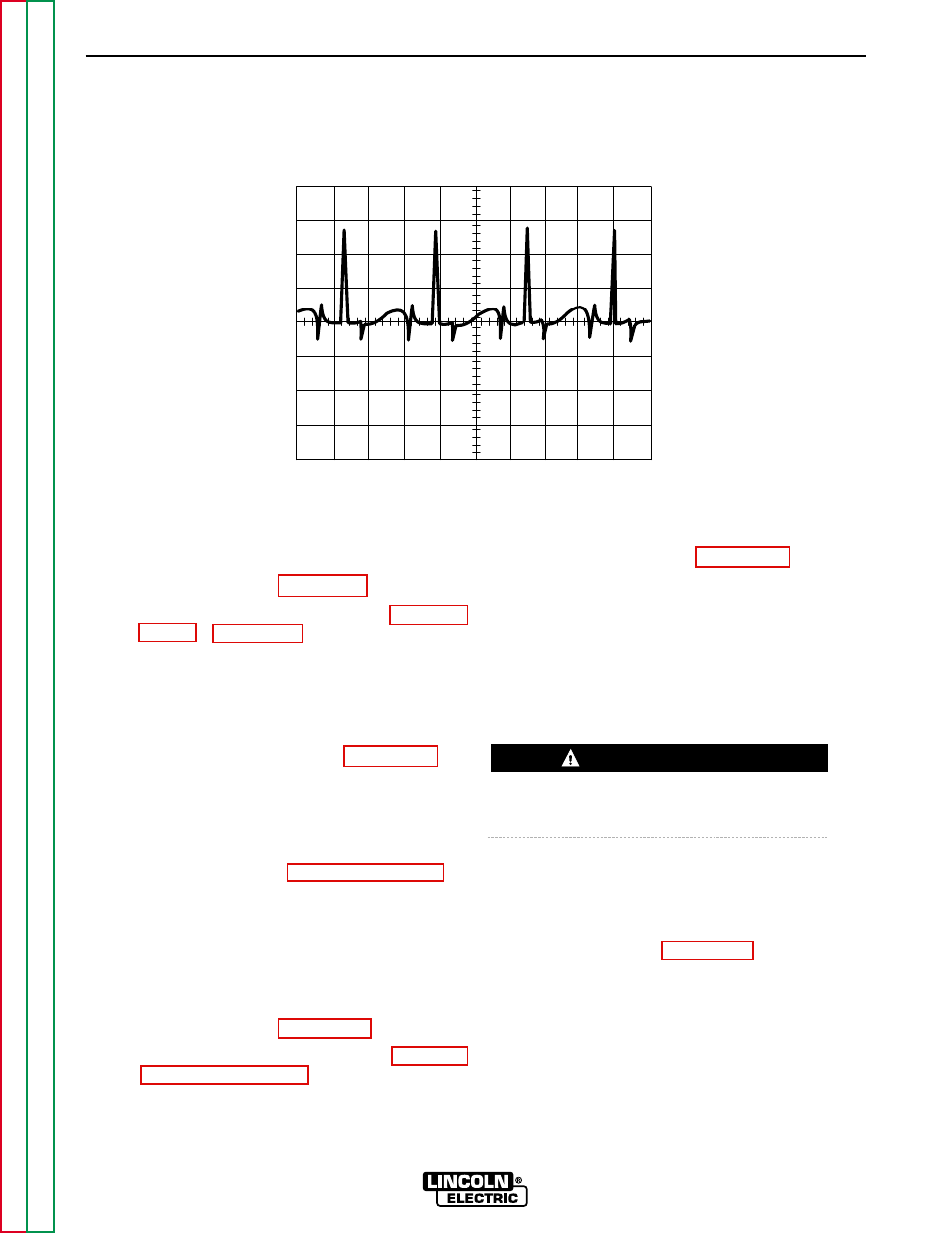

FIGURE F.82 - SNUBBER SIGNAL

0 V

5V/Div

20uS/Div
