6. Unfasten the ribbon cable connecting the operator panel board to the
motherboard.
Caution –
Use care with the small flat cables. They are extremely fragile.

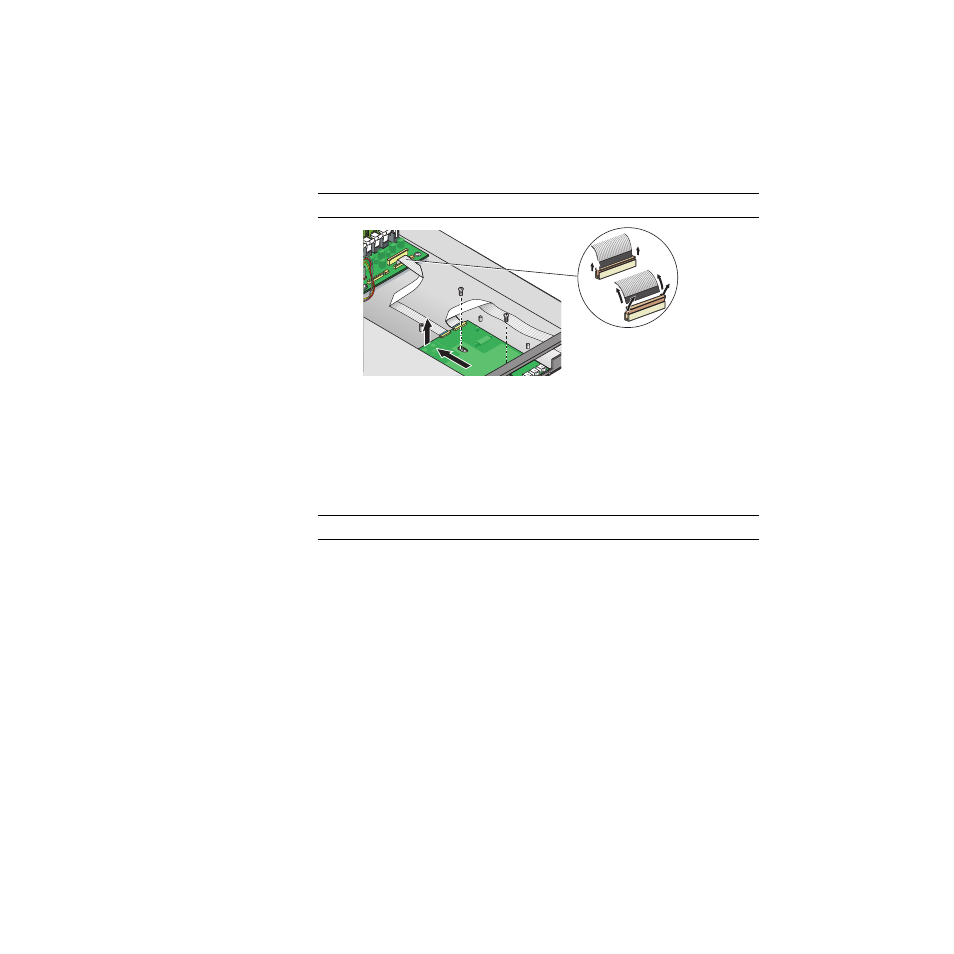

FIGURE 4-22
Uncabling and Removing the Operator Panel Board
7. Remove the two screws and washers mounting the Operator Panel board to the
chassis.
8. Carefully slide the operator panel towards the rear of the chassis as far as
possible, to avoid damaging the switches. Raise the rear edge of the board first,
and then lift the Operator Panel board and LCD out of the chassis.
Installation is the reverse of this procedure.
Note –
Check the routing of all cables for obstructions before reinstalling the cover.
