1.4
Hardware System Orientation
Prior to performing any service procedures, become familiar with the physical
orientation and features of your Sun Fire V20z server.
1.4.1
Front and Back Panels
illustrates the front panel of the Sun Fire V20z server.

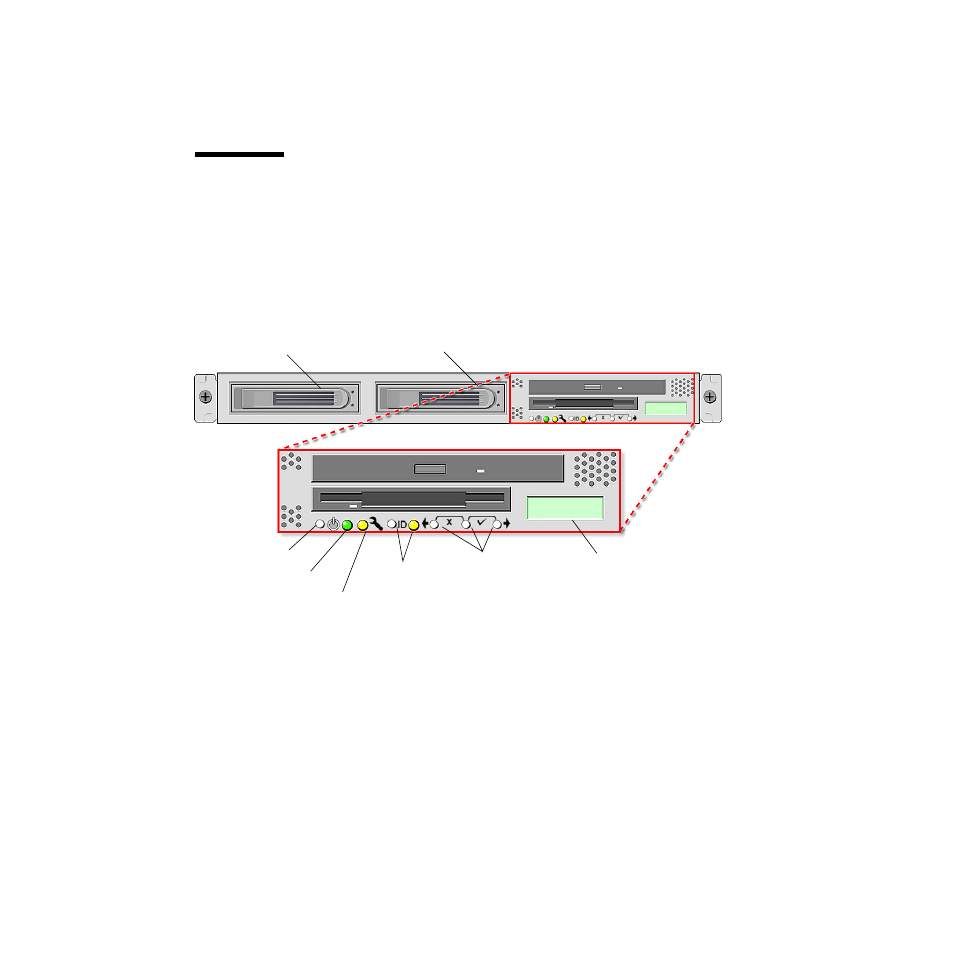

FIGURE 1-1
Front Panel
Refer to “Operator Panel” on page 1-5 for more information about the operator
panel.
Platform power
button
Platform power
indicator LED
System fault
LED
Locate button
and LED
Operator panel
buttons
Operator panel
LCD display
Hard disk drive 2
Hard disk drive 1
