3000i Installation Guide
24
A Note on VCR/DVD Player Installation and Cabling
You can install the VCR/DVD player either inside or outside the cabinet (an ideal spot would
be the guest laptop shelf, if it isn’t otherwise occupied).
If you put the VCR/DVD player inside the cabinet, place it on the cabinet floor underneath
the projector platform, but use the Connection Panel on the rear of the cabinet for all
connections. You’ll find an opening for the cables located at the top of the rear access panel
(see figure below).
If you place the VCR/DVD player on the outside of the cabinet – for example, on an
unoccupied guest laptop shelf – you can route the video and audio cables directly to the
Connection Panel. You can route the power cable through the cable hole to the interior
power bar. Alternatively, if no laptop is connected to the laptop umbilical, you can draw
power from the AC power cord in the laptop umbilical.

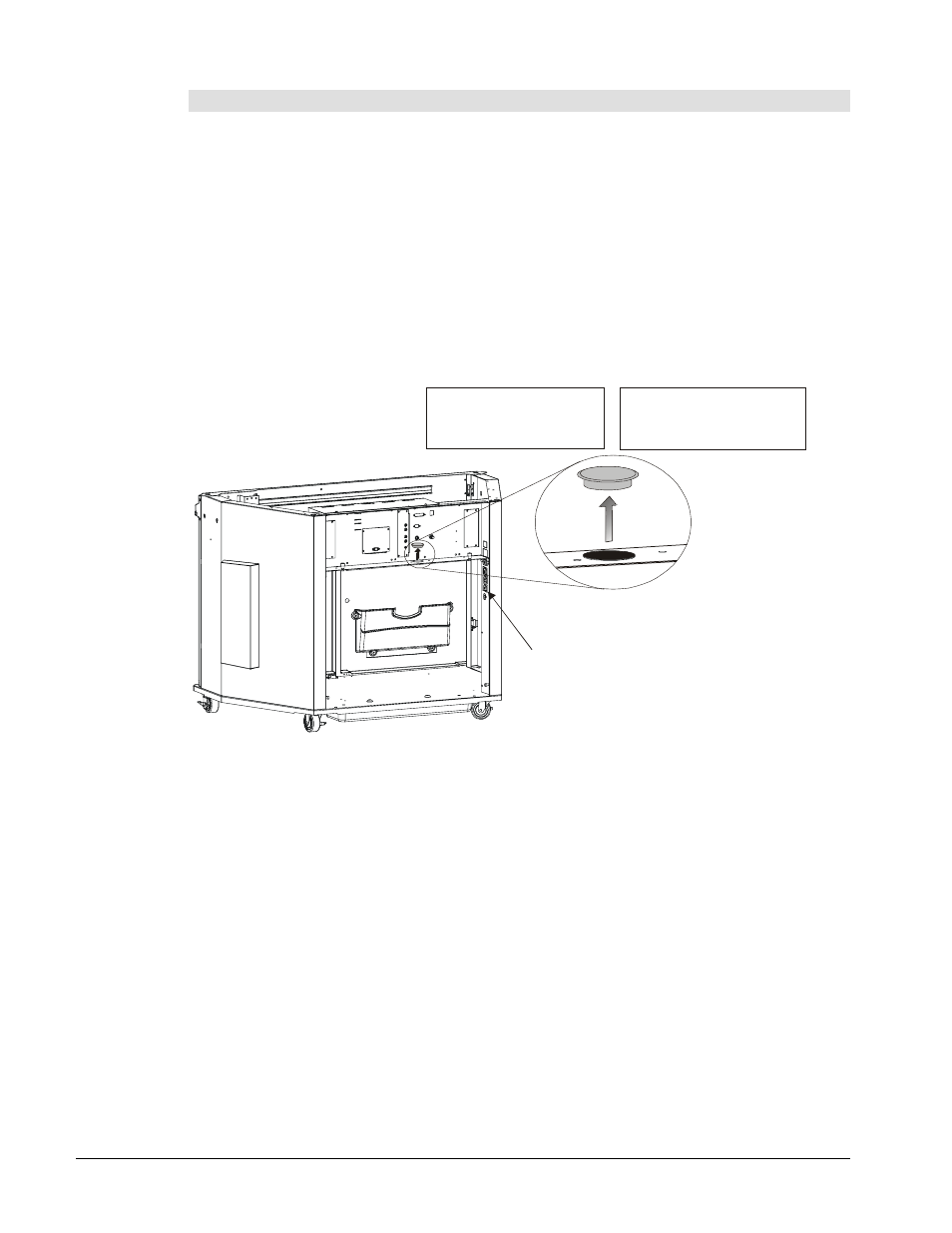

Cable Routing for Internal and External VCR/DVD Player
Plug VCR/DVD player in here
Remove plastic cover to expose cable hole
For a VCR/DVD player
, route audio/video cables
through the cable hole to the
Connection Panel.
inside the
cabinet
For a VCR/DVD player
, route the power cable
through the cable hole to the
interior power bar.
outside the
cabinet
