Connecting a Guest Laptop
It's easy to hook up the guest laptop: Simply connect it to the Laptop Umbilical. If you want
network access, you'll also need to connect the adapter end of the umbilical’s network cable
to a room network connection.
To connect a guest laptop
1 Extend the laptop end of the umbilical from the rear of the 3000i cabinet until it reaches
the laptop shelf.
2 Connect the country-specific power adapter (provided in the power kit) to the end of the
AC power cable.
3 Connect the five cables that make up the laptop end of the umbilical − the Computer 2
Network, Computer 2 Audio, Computer 2 Video, Computer 2 Serial and AC Power
cables
− to the appropriate connectors on the guest laptop.
NOTE: If the guest laptop doesn't have a serial port, use the SMART USB adapter
(order number USB-ADP) to connect the Computer 2 Serial cable.

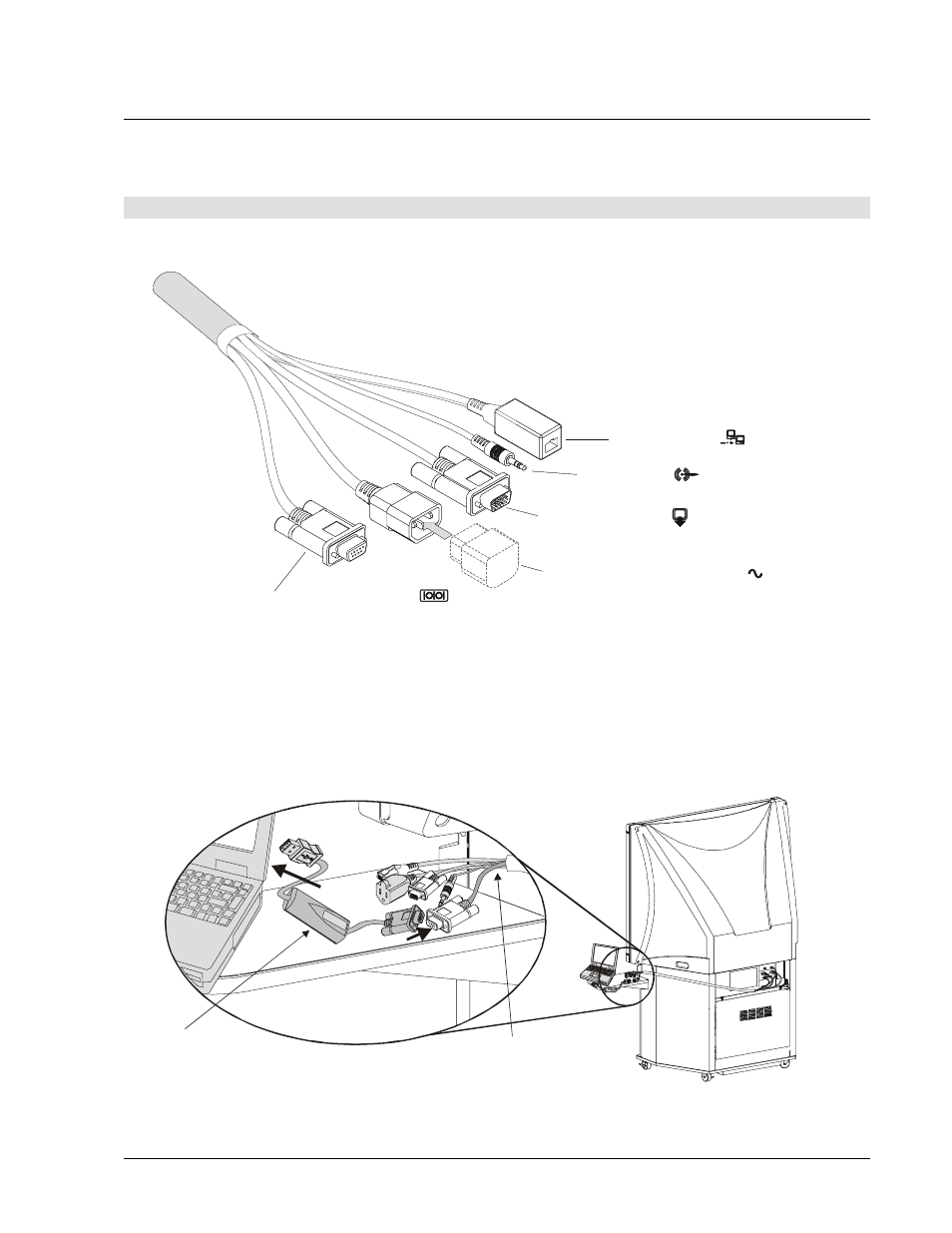

Connecting a Guest Laptop Via the SMART USB Adapter
Computer 2 Audio
Computer 2 Network
Computer 2 Video (Male)
Country-Specific AC Adapter (or Cable)
Computer 2 Serial (Female)
Computer 2 Audio
Computer 2 Network
Computer 2 Video (Male)
Country-Specific AC Adapter (or Cable)
(Outside North America Only)
Computer 2 Serial (Female)
SMART USB Adapter Laptop Umbilical
