Placing Originals
33
3

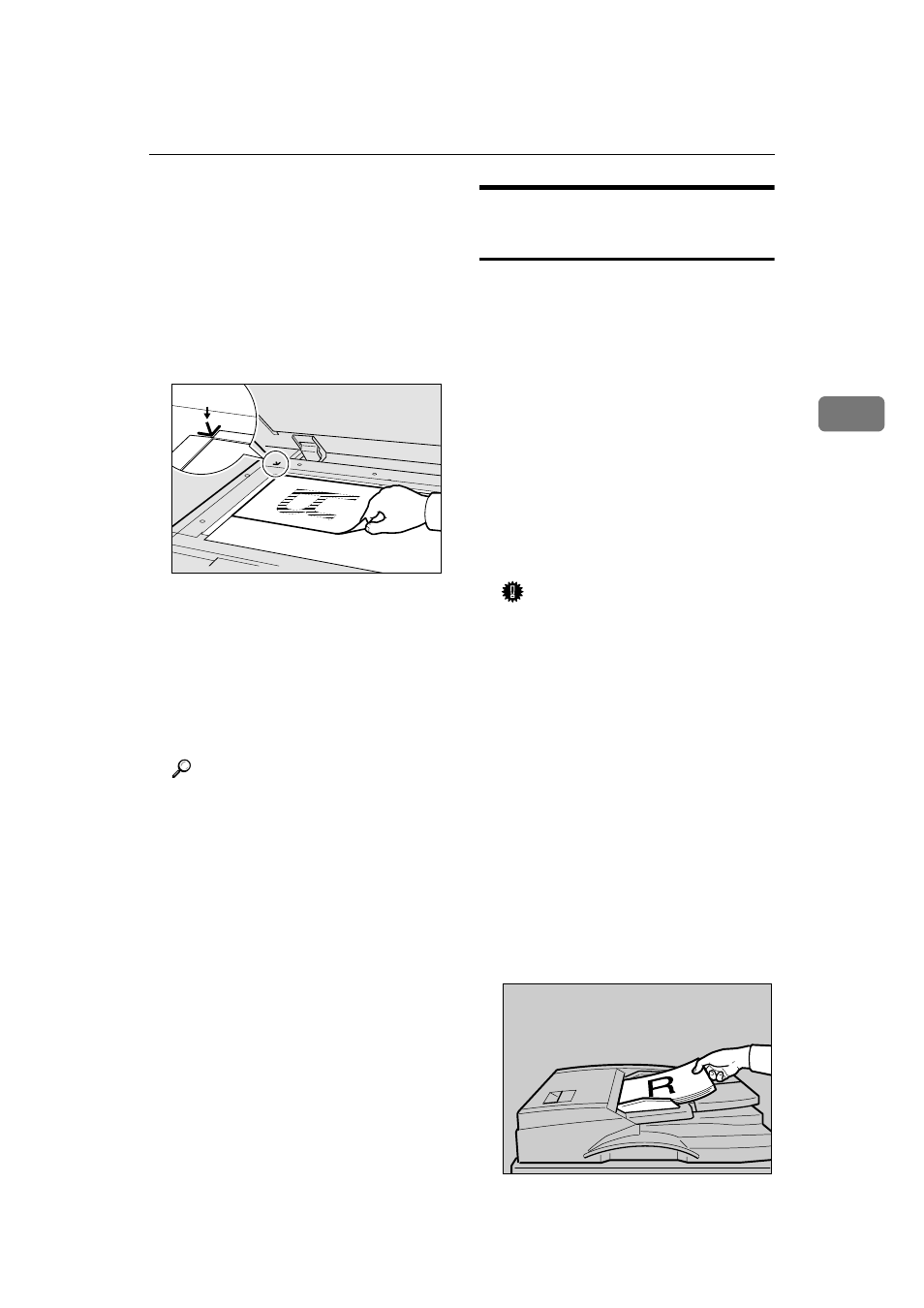

❖ ❖ ❖ ❖ Another way is to place the original
so that the top edge touches the
top left of the exposure glass.
When using the machine as a
network TWAIN scanner, this
orientation is the standard set-
ting for the TWAIN driver. Nor-
mally, use this orientation for
placing documents.
1. Positioning mark
CCCC
Close the exposure glass cover or
the ADF.
DDDD
Select the original orientation ac-
cording to the orientation of the
placed original.
Reference
p.31 “Specifying Original Ori-
entation and Setting Originals”
Proceed to p.35 “Original Orienta-
tion and Scan Area”.
Placing in the Auto Document
Feeder
The ADF allows you to place several
originals at one time. Originals placed
in the ADF can be scanned on one
side or both sides.
❖ ❖ ❖ ❖ Originals that can and cannot be
placed in the ADF
For information about the origi-
nals that can and cannot be placed
in the ADF, see Copy Reference.
Attempting to use unsuitable orig-
inals in the ADF can lead to a mis-
feed and damage to the originals.
Place such originals directly on the
exposure glass.
Important
❒ For information about which
original sizes can be detected
automatically and notes on
placing originals in the ADF,
see Copy Reference.
AAAA
Adjust the original guide to
match the size of the originals.
BBBB
Place the originals with the side to
be scanned facing up. (For originals
which are to be scanned on both
sides, the first side should face up.)
There are two orientations.
❖ ❖ ❖ ❖ One way is to place the originals
so that the top edges touch the
back of the ADF.
1
ZHSY040E
ZHSY010E
