DS33R11 Ethernet Mapper with Integrated T1/E1/J1 Transceiver
312 of 344

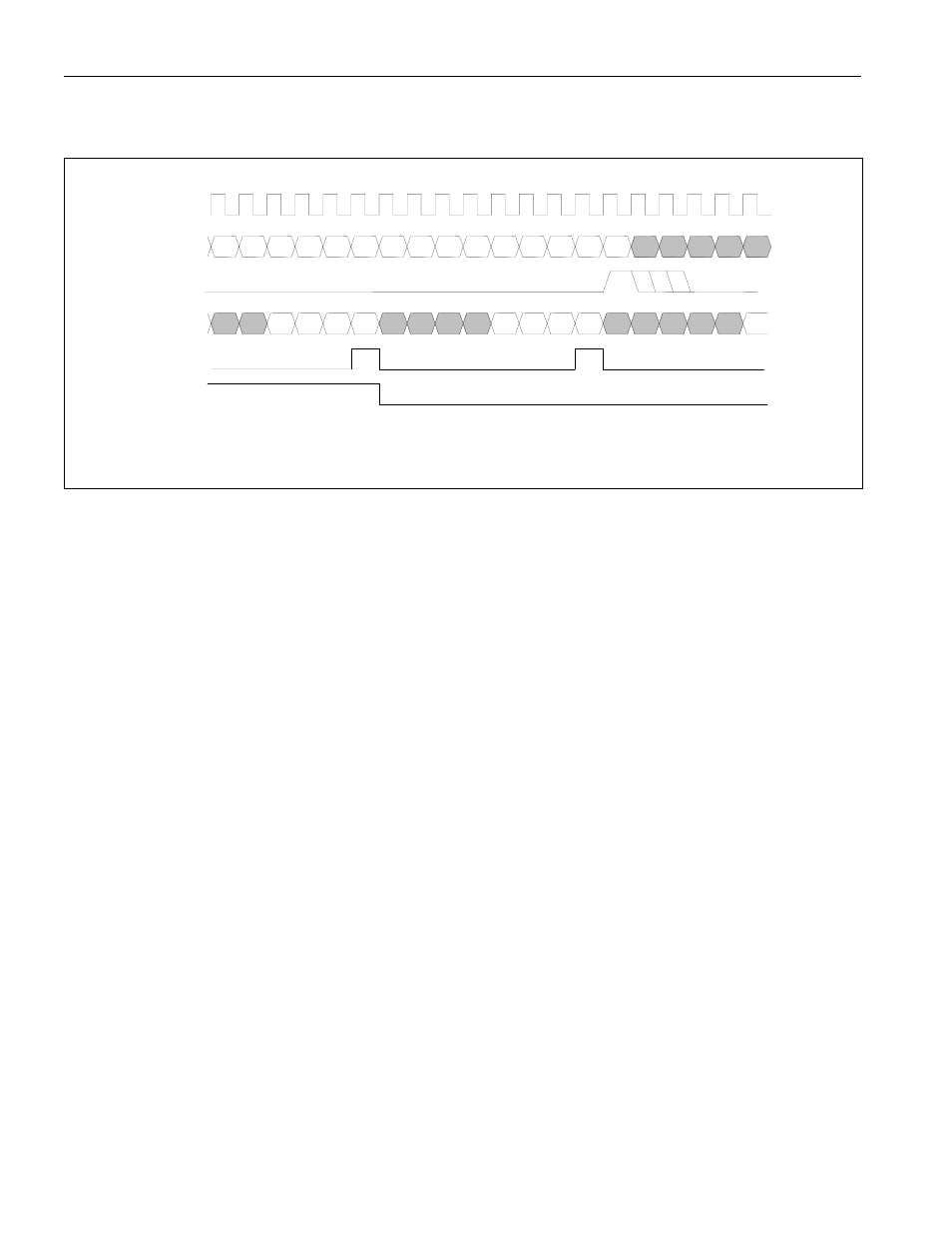

Figure 12-28. Transmit-Side Boundary Timing, TSYSCLK = 2.048MHz (Elastic Store
Enabled)
LSB F LSB MSB
CHANNEL 1 CHANNEL 32
A B C D A B
TSYSCLK
TSERI
TSSYNC
TSIG
TCHCLK
TCHBLK
CHANNEL 31
A
CHANNEL 31 CHANNEL 32 CHANNEL 1
1 4
C D
NOTE 1: TCHBLK IS PROGRAMMED TO BLOCK CHANNEL 31.
