DS33R11 Ethernet Mapper with Integrated T1/E1/J1 Transceiver
311 of 344

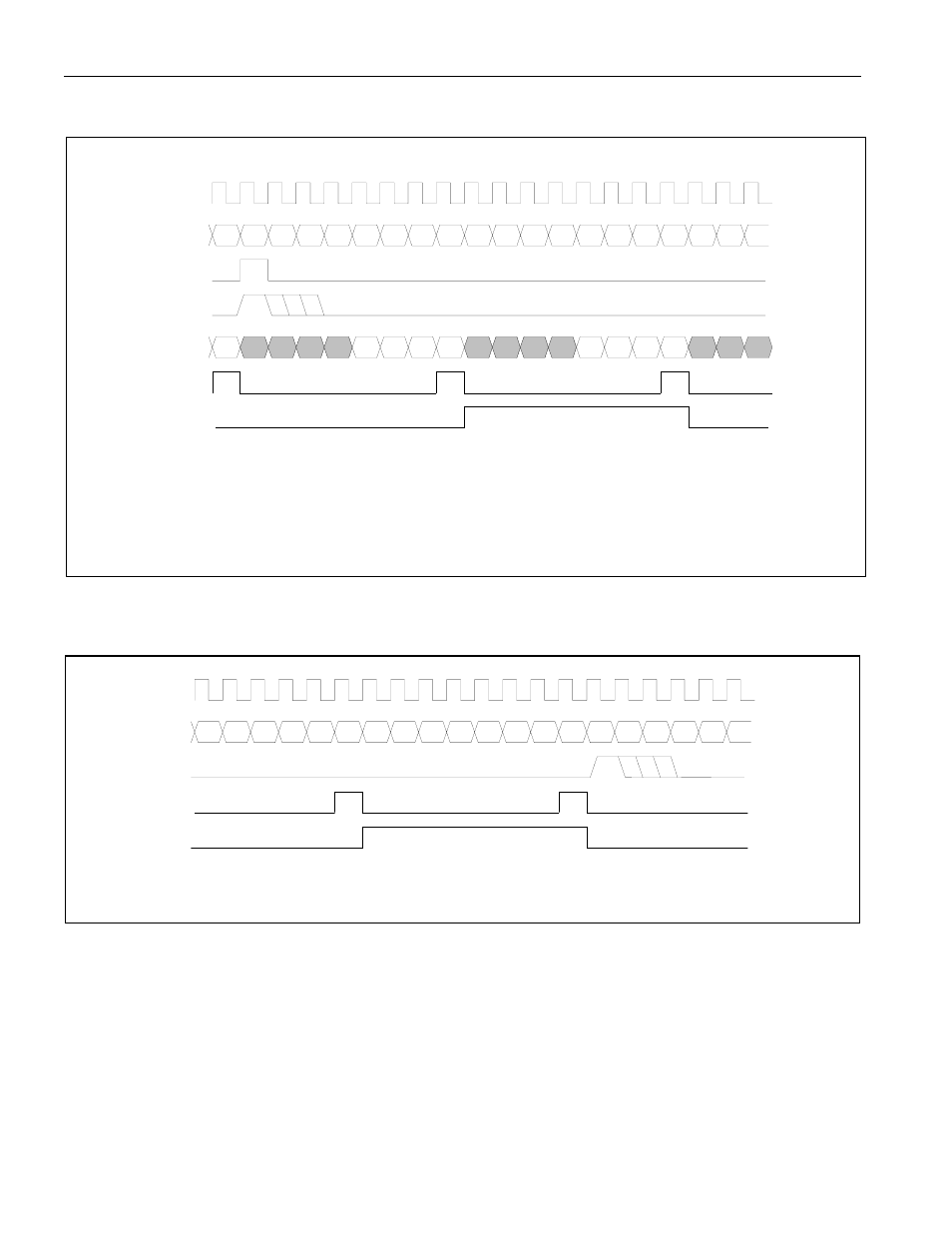

Figure 12-26. Transmit-Side Boundary Timing (Elastic Store Disabled)
LSB MSB LSB MSB
CHANNEL 1 CHANNEL 2
CHANNEL 1 CHANNEL 2
A B C D
TCLKT
TSERI
TSYNC
TSYNC
TSIG
TCHCLK
TCHBLK
1
2
3
Si 1 A Sa4 Sa5 Sa6 Sa7 Sa8
D
NOTE 1: TSYNC IS IN THE OUTPUT MODE (TR.IOCR1.1 = 1).
NOTE 2: TSYNC IS IN THE INPUT MODE (TR.IOCR1.1 = 0).
NOTE 3: TCHBLK IS PROGRAMMED TO BLOCK CHANNEL 2.
NOTE 5: THE SIGNALING DATA AT TSIG DURING CHANNEL 1 IS NORMALLY OVERWRITTEN IN THE TRANSMIT FORMATTER
WITH THE CAS MF ALIGNMENT NIBBLE (0000).
NOTE 6: SHOWN IS A TNAF FRAME BOUNDARY.
Figure 12-27. Transmit-Side Boundary Timing, TSYSCLK = 1.544MHz (Elastic Store
Enabled)
LSB F MSB LSB MSB
CHANNEL 1 CHANNEL 24
TSYSCLK
TSERI
TSSYNC
TCHCLK
TCHBLK
CHANNEL 23
1
2
NOTE 1: THE F-BIT POSITION IN THE TSERI DATA IS IGNORED.
NOTE 2: TCHBLK IS PROGRAMMED TO BLOCK CHANNEL 24.
