3 jtag id codes, 4 test registers, 1 boundary scan register – Maxim Integrated DS33R11 User Manual

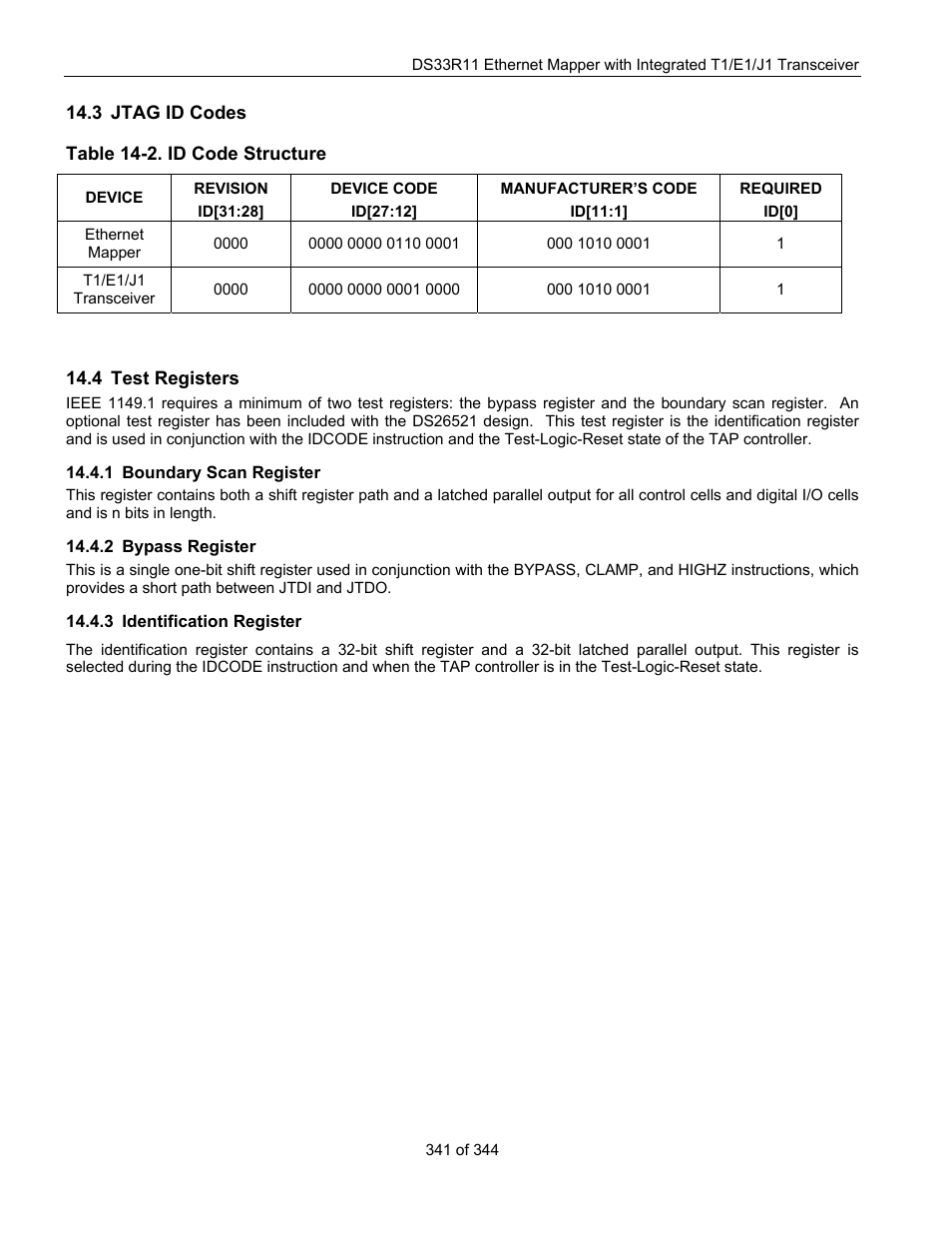

Page 341: 2 bypass register, 3 identification register, Boundary scan register, Bypass register, Identification register, Table 14-2. id code structure

Text mode
Original mode

3 jtag id codes, 4 test registers, 1 boundary scan register | 2 bypass register, 3 identification register, Boundary scan register, Bypass register, Identification register, Table 14-2. id code structure | Maxim Integrated DS33R11 User Manual | Page 341 / 344
