CHAPTER 4: Installing Components www.gateway.com
54

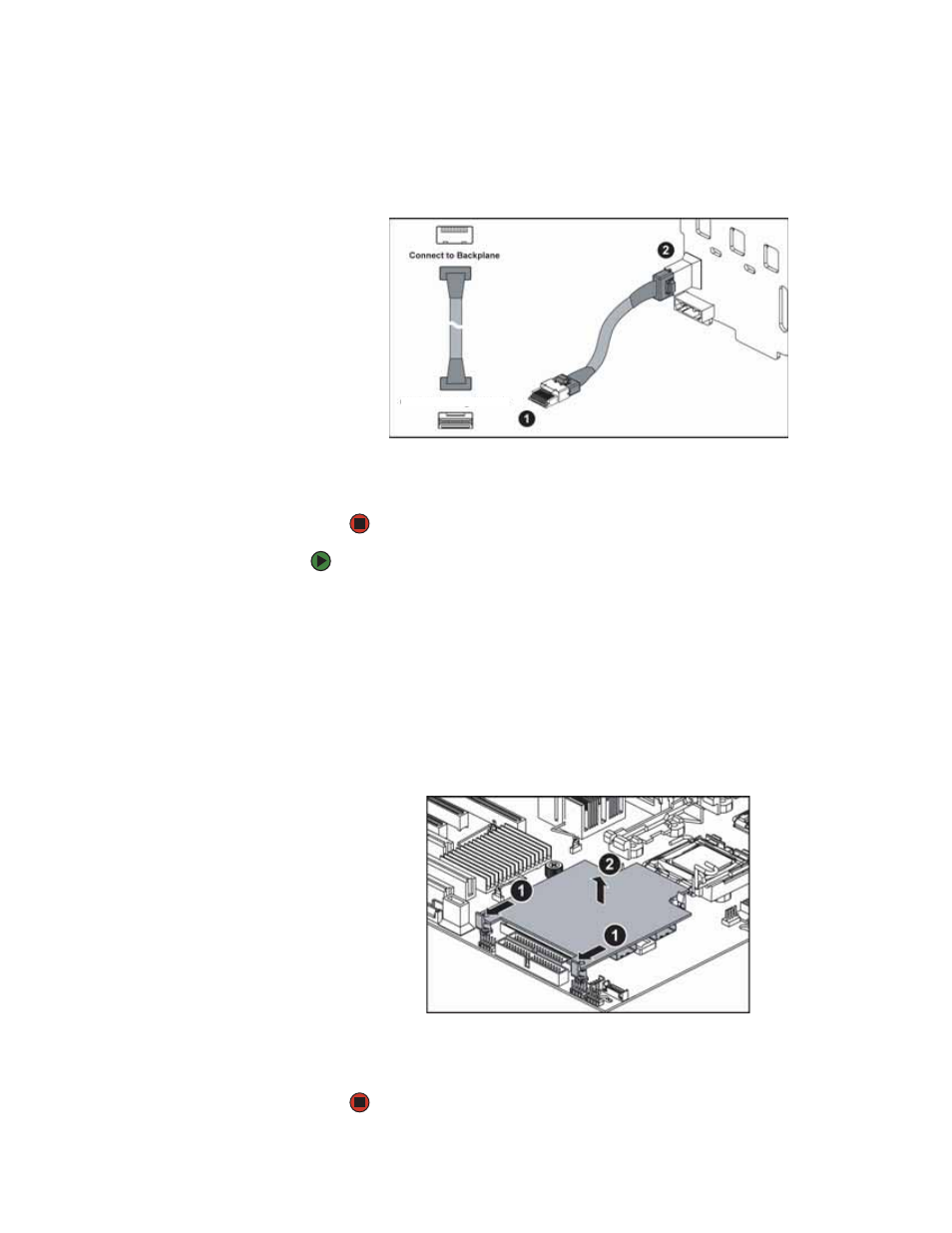

The cable from the first mini-SAS connector (port 0-3) on the mezzanine
board should be connected to the mini-SAS connector on the backplane
of the top cage (Cage #0), and the cable from the second mini-SAS
connector (port 4-7) on the mezzanine board should be connected to the
mini-SAS connector on the backplane of the bottom cage (Cage #1)
8 Return the chassis to its upright position, if necessary.
9 Follow the instructions in “Closing the server case” on page 30 .
To remove a mezzanine board:
1 Follow the instructions in “Preventing static electricity discharge” on
page 28 . Make sure that you turn off the server, then unplug the power
cord(s) and all other cables connected to the server.
2 Follow the instructions in “Opening the server case” on page 29 .
3 Set the chassis on its side to make it easier to work on.
4 Remove the cables from the mezzanine board.
5 Push aside the plastic retaining tabs (1) and pull the mezzanine board (2)
straight up and out of the mezzanine board slot.
6 Return the chassis to its upright position, if necessary.
7 Follow the instructions in “Closing the server case” on page 30 .
Connect to Mezzanine Board
