Hot-swap backplanes
www.gateway.com
7
Hot-swap backplanes

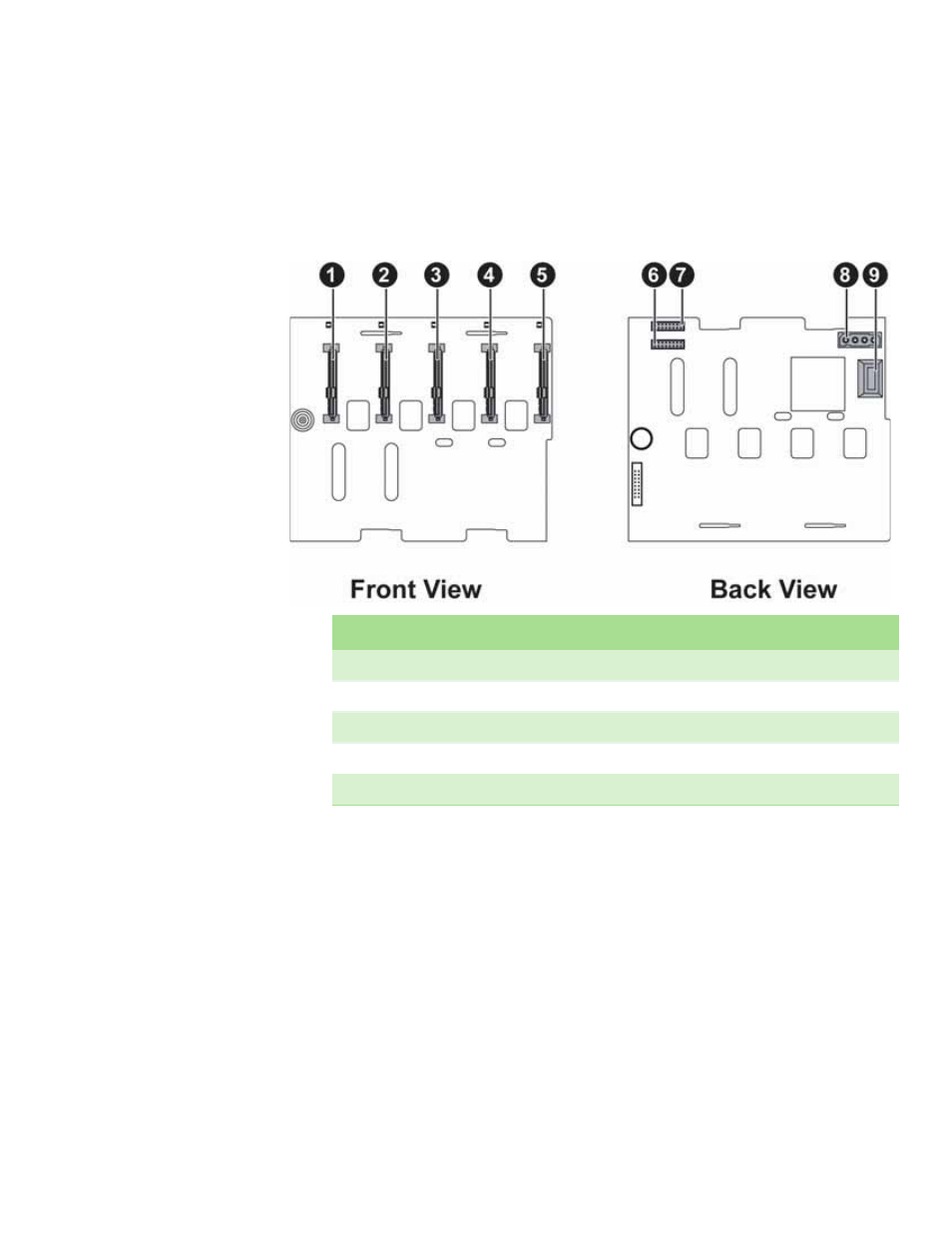

SAS/SATA backplane
#
Feature
#
Feature
1
SAS/SATA hard drive connector 0
6
I
2
C and system ID connector
2
SAS/SATA hard drive connector 1
7
I
2
C and system ID connector
3
SAS/SATA hard drive connector 2
8
Backplane power connector
4
SAS/SATA hard drive connector 3
9
Backplane SAS connector
5
SAS/SATA hard drive connector 4
