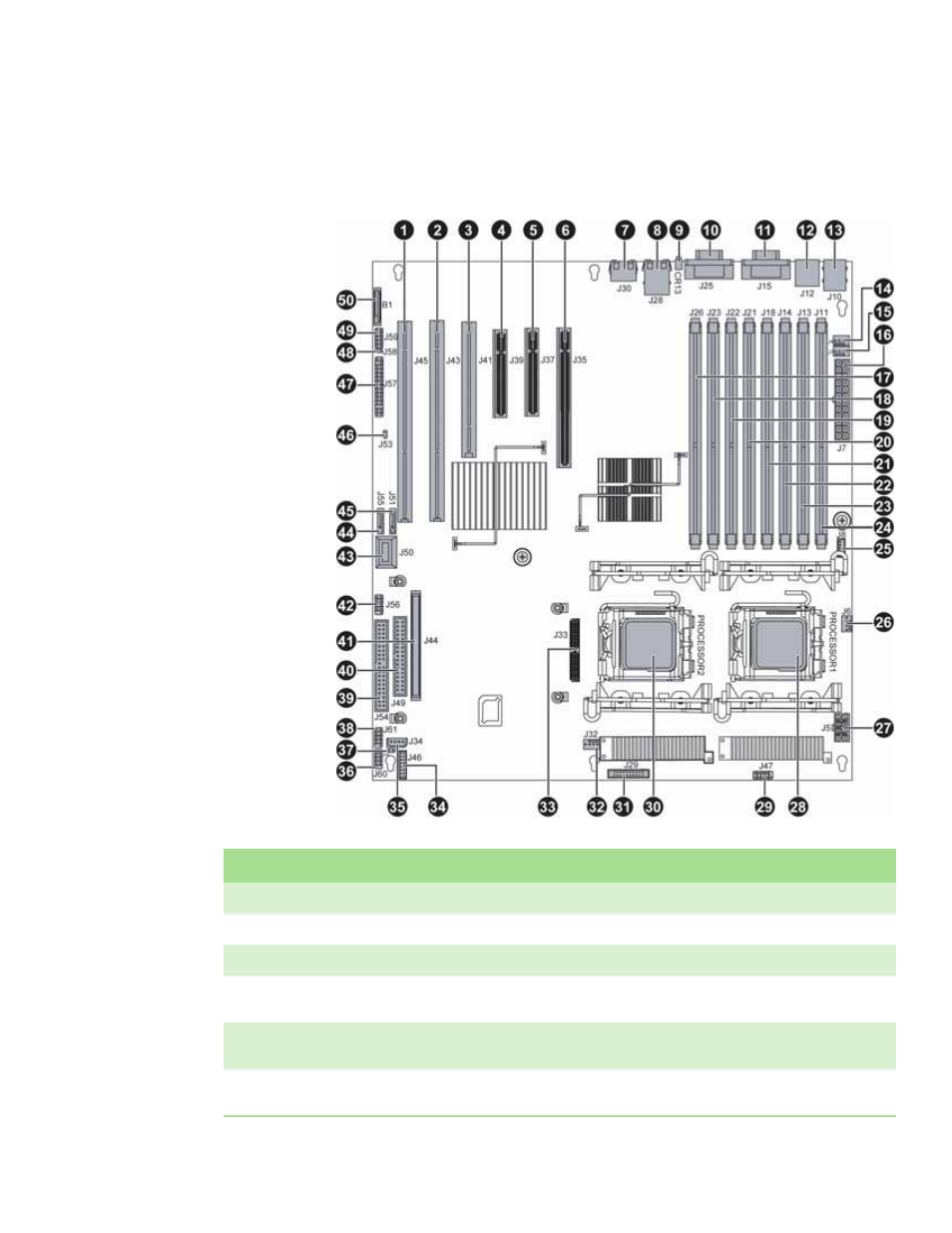

System board
www.gateway.com
5
System board
Connectors
#
Feature
#
Feature
1
PCI-X 64-bit/66 MHz expansion slot (J45)
26
Not used
2
PCI-X 64-bit/66 MHz expansion slot (J43)
27
Processor power connector (J5)
3
PCI 32-bit/33 MHz expansion Slot (J41)
28
Processor 1
4
PCI-E x8 expansion slot with x4 speed
(J39)
29
SMIL connector (J47)
5
PCI-E x8 expansion slot with x4 speed
(J37)
30
Processor 2
6
PCI-E x16 expansion slot with x8 speed
(J35)
31
Fan board connector (J29)
