Grizzly G0696X - Manual (Page 94)

g0605X1-6X1, g0696X-97X (mfg. 8/11+) -91-

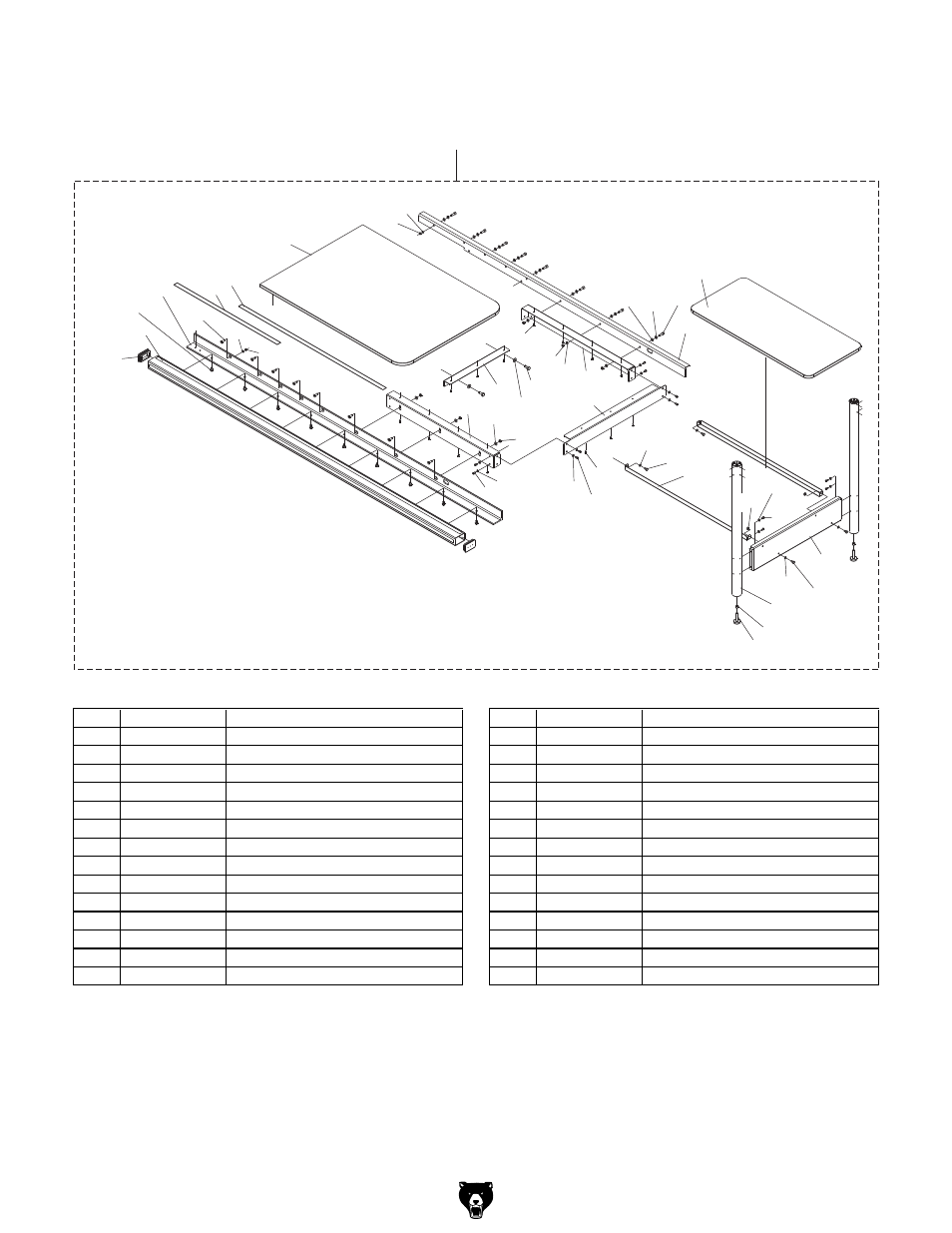

Extension Table (G0605X1/G0606X1)
500
501 502
503
504
504
506
507
508
509
510
511
512
513
514
515
515
529
529
529
530
530
530
530
530
531
532
533
534
535
536
536
538
539 540 541
542
542
542
543
543
505
540
540
543
543
REF PART # DESCRIPTION REF PART # DESCRIPTION
500 P0605X1500 EXTENSION TABLE ASSEMBLY 515 PHTEK6M TAP SCREW M4 X 16
501 P0605X1501 LEFT SCALE 18" 529 PS14M PHLP HD SCR M6-1 X 12
502 P0605X1502 RIGHT SCALE 52" 530 PW03M FLAT WASHER 6MM
503 P0605X503 EXTENSION TABLE PLATE 531 PW04M FLAT WASHER 10MM
504 P0605X504 EXTENSION TABLE SUPPORT 532 PN01M HEX NUT M6-1
505 P0605X505 FRONT EXTENSION BRACKET 533 PN08 HEX NUT 3/8"-16
506 P0605X506 FRONT RAIL 534 P0605X534 FOOT 3/8"-16 X 2
507 P0605X507 FENCE TUBE 535 PB32M HEX BOLT M10-1.5 X 25
508 P0605X508 END CAP 536 PS14M PHLP HD SCR M6-1 X 12
509 P0605X509 REAR RAIL 538 PFH21M FLAT HD SCR M8-1.25 X 25
510 P0605X510 REAR EXTENSION BRACKET 539 PFB15M FLANGE BOLT M8-1.25 X 12
511 P0605X511 LOWER SHELF 540 PLW04M LOCK WASHER 8MM
512 P0605X512 LOWER SHELF BRACKET 541 PCAP31M CAP SCREW M8-1.25 X 25
513 P0605X513 SHELF END PLATE 542 PW01M FLAT WASHER 8MM
514 P0605X514 SUPPORT LEG 543 PN03M HEX NUT M8-1.25
