g0605X1-6X1, g0696X-97X (mfg. 8/11+) -17-
Extension Table Inventory
Box contents: (Figure 14) Qty
A. Extension table .......................................... 1
B. lower shelf ................................................ 1
c. shelf End plate ........................................... 1
D. support legs .............................................. 2
E. lower shelf Brackets ................................. 2
hardware and Tools (Not Shown): Qty
• Cap screws m8-1.25 x 25
(rear rail/Cabinet) ..................................... 8
• lock Washers 8mm
(rear rail/Ext. table) ............................... 10
• Flat head screws m8-1.25 x 25
(Front rail/Cabinet) .................................... 8
• Flat Washers 8mm
(Front rail/Ext. table/rear rail) .............. 14
• hex nuts m8-1.25
(Front rail/Ext. table/rear rail) ................ 8
• Flange Bolts m8-1.25 x 12
(tube/ Front rail) ........................................ 9
• hex Bolts m6-1 x 12
(Brackets/Cabinet/legs) ............................. 4
• hex nuts m6-1
(Brackets/Cabinet) ...................................... 2
• Feet 3 ⁄
8
"-16 x 2 (legs) ................................. 2
• phillip head screws m6-1 x 12
(Ext. table/legs/End plate) ...................... 12
• Flat Washers 6mm
(Ext table/legs/End plate) ....................... 16
• hex nuts 3 ⁄
8
"-16 (Feet) ................................ 2
• Flat Washers 10mm (Cabinet) .................... 2
• hex Bolts m10-1.5 x 25 (Cabinet) ............... 2
• Flange Bolts m8-1.25 x 12
(Fence resting Brackets) ........................... 2

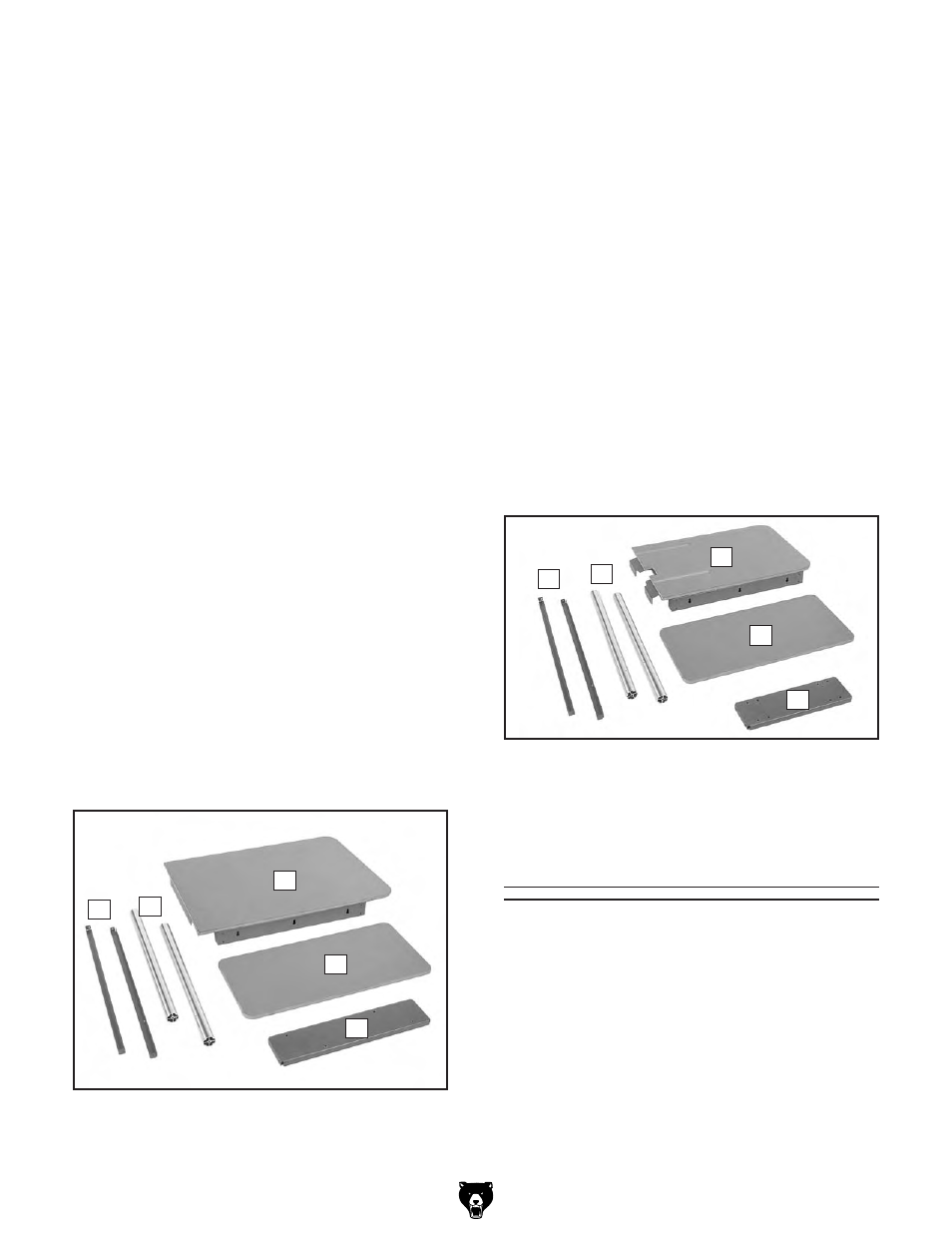

Figure 14. Extension table components.
A
B
C
d E
G0696X/G0697X
Inventory
Table Saw unit
Box contents (Figures 16, 17, 18): Qty
A. table saw Unit ........................................... 1
B. Cast iron Extension Wing ........................... 1
c. spreader/guard For 12" Blade ................... 1
D. push stick .................................................. 1
E. miter gauge ................................................ 1
F. miter gauge handle ................................... 1
G. Fence resting Brackets ............................. 2
h. handwheel handles ................................... 2
I. switch disabling lock ................................ 1
J. Blade 12" .................................................... 1
Outfeed Table Inventory
Box contents: (Figure 15) Qty
A. outfeed table ............................................. 1
B. lower shelf ................................................ 1
c. shelf End plate ........................................... 1
D. support legs .............................................. 2
E. lower shelf Brackets ................................. 2
hardware and Tools (Not Shown): Qty
• Flange Bolts m8-1.25 x 16
(rear rail/Ext. table) ................................. 2
• hex nuts m8-1.25 (rear rail/Ext. table) ... 2
• hex Bolts m6-1 x 12
(Brackets/legs/Cabinet) ............................. 4
• hex nuts m6-1 (Bracket/legs/Cabinet) ...... 2
• hex nuts 3 ⁄
8
"-16 (Brackets/legs/Cabinet) ... 2
• Flat Washers 6mm
(Brackets/legs/Cabinet) ........................... 16
• phillips head screws m6-1 x 12
(legs/Ext. table/End plate) ...................... 12
• Feet 3 ⁄
8
"-16 x 2 (legs) ................................. 2
Figure 15. outfeed table components.
A
B
C
d
E
