Model G0606X1/G0697X
circuit Requirements for 440v
This machine can be converted to operate on a
440V power supply (refer to
Voltage Conversion
instructions) that has a verified ground and meets
the following requirements:
Nominal voltage .............................. 440v/480v
cycle ..........................................................60 hz
phase .................................................... 3-phase
circuit Rating ...................................... 15 Amps
connection ......hardwire with Locking Switch
Model G0606X1/G0697X
connection Device
For 220V operation: The power cord and plug
specified under “Circuit Requirements for 220V”
on the previous page have an equipment-ground-
ing wire and a grounding prong. The plug must
only be inserted into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances
(see figure below).
For 440V operation: As specified in “Circuit
Requirements for 440V” on the previous page, the
machine must be hardwired to the power source,
using a locking switch as a disconnecting means
(see below). The machine must also be connect-
ed to a grounded metal permanent wiring system;
or to a system having an equipment-grounding
conductor. Due to the complexity and high voltage
involved, this type of installation MUST be done
by a qualified electrician.

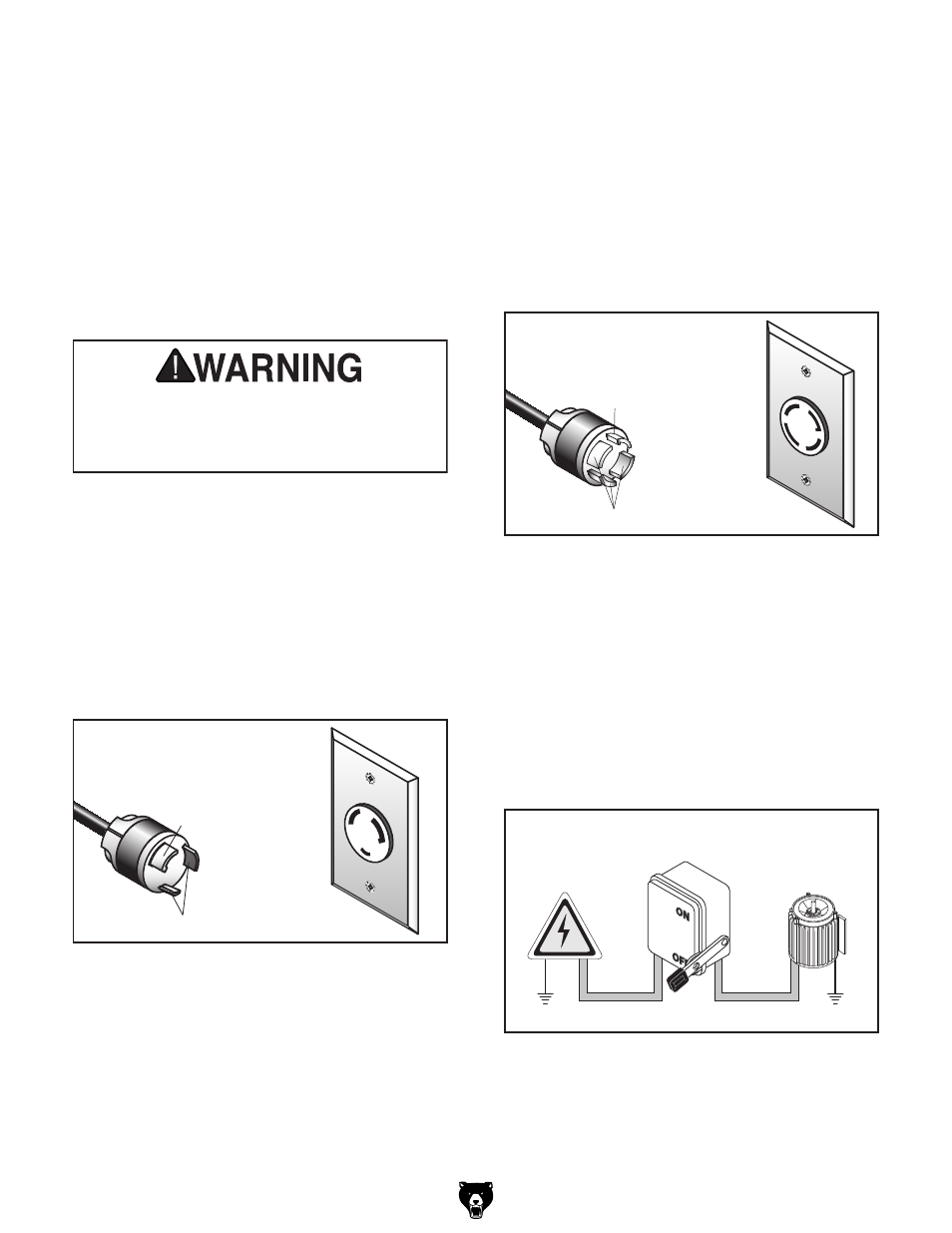

Figure 4. typical hardwire setup with a locking
disconnect switch.
Power
Source
Locking
Disconnect Switch
Machine
Ground Ground
Conduit Conduit
Figure 3. typical l15-30 plug and receptacle.
Grounding Prong
is Hooked
Current Carrying Prongs
GROUNDED
L15-30 RECEPTACLE
L15-30
PLUG
Serious injury could occur if you connect
the machine to power before completing the
setup process. DO NOT connect to power
until instructed later in this manual.
Model G0605X1/G0696X
connection Device
The power cord and plug specified under “Circuit
Requirements for 220V” on the previous page
has an equipment-grounding wire and a ground-
ing prong. The plug must only be inserted into
a matching receptacle (outlet) that is properly
installed and grounded in accordance with all
local codes and ordinances (see figure below).
Figure 2. typical l6-30 plug and receptacle.
Grounding Prong
is Hooked
Current Carrying Prongs
L6-30 GROUNDED
LOCKING
RECEPTACLE
L6-30
LOCKING
PLUG
