Blade Tilt Stops
the table saw features bolts that stop the blade tilt
exactly at 45° and 90° when using the handwheel.
these stops have been set at the factory and
should require no adjustments, unless you notice
that your cuts are not accurate.
Note: The tilt scale reads "0" when the blade is
90° to the table.
Tools Needed Qty
90 ° square ........................................................ 1
45° square ........................................................ 1
hex Wrench 4mm .............................................. 1
Wrench 13mm ................................................... 1
Setting 90° Stop Bolt
1. disConnECt sAW From poWEr!
2. raise the blade as high as it will go, then tilt
it toward 0° until it stops and cannot be tilted
any more.
3. place a 90° square against the table and
blade so it contacts the blade evenly from
bottom to top, as shown in
Figure 120. make
sure a blade tooth does not obstruct the
placement of the square.
—if the blade is 90° to the table, then adjust-
ments do not need to be made. make sure
the tilt indicator arrow shown in
Figure 121
points to the 0° mark on the scale. if it does
not, remove the blade height lock knob,
loosen the blade height handwheel set
screw and remove the handwheel.

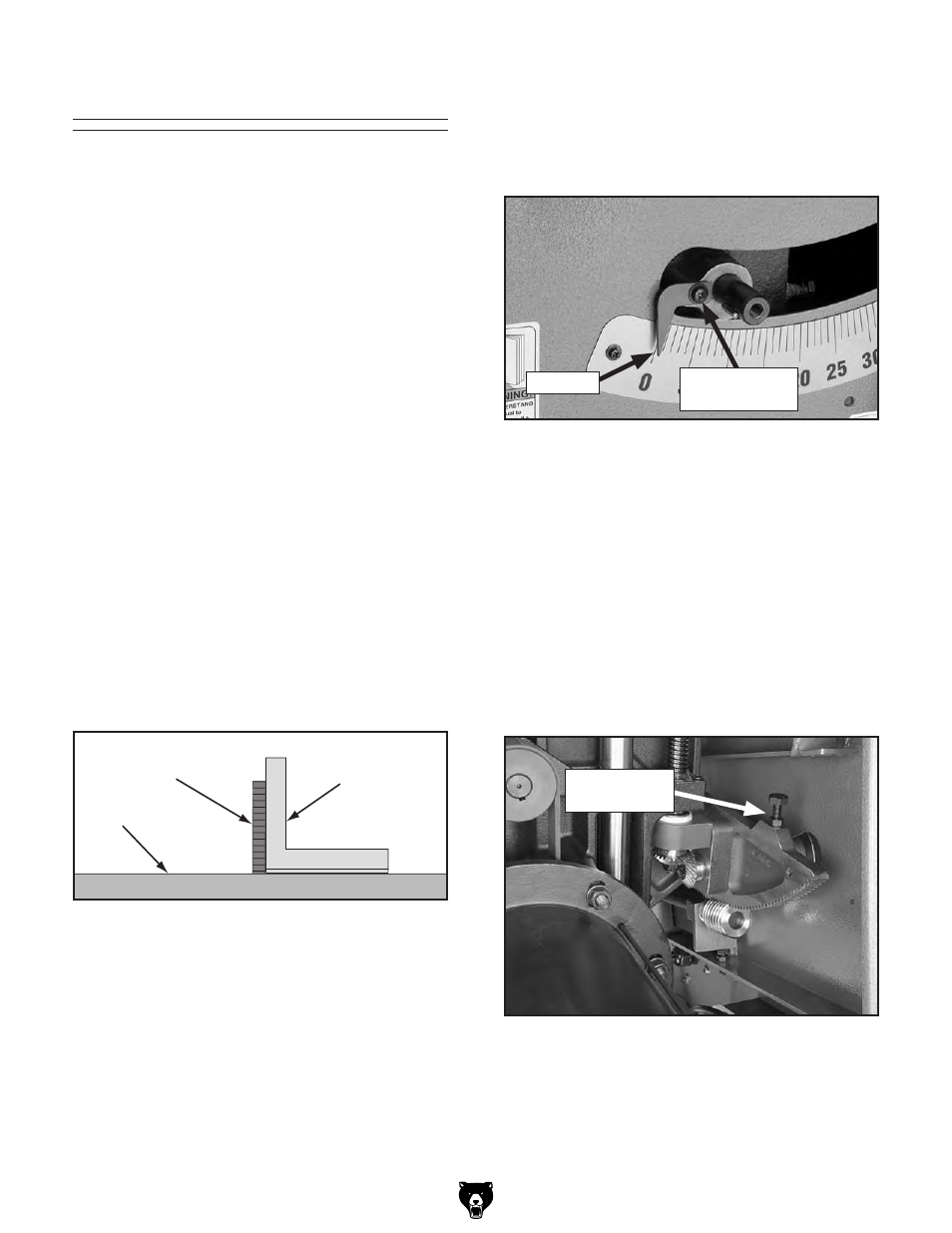

Figure 120. Checking blade at 90°.
Table
90° Square
Blade
Figure 122. 90° stop bolt and jam nut.
Figure 121. tilt indicator arrow.
phillips head
screw
indicator
—if the blade is not 90° to the table, you will
need to adjust the 90° stop screw. proceed
to the next step.
4. tilt the blade to about 5°, so there is room for
the stop bolt to move.
5. open the motor access cover, loosen the jam
nut shown in Figures 122–123, adjust the
stop bolt up or down according to how far off
the blade was from 90°, then repeat
Step 3
until the blade stops at 90°.
Adjust the indicator position by loosening
the phillips head screw, moving the indica-
tor, then tightening the screw and re-install-
ing the handwheel. proceed to
Setting 45º
Stop Bolt on page 65.
90° stop Bolt
& Jam nut
