-18- g0605X1-6X1, g0696X-97X (mfg. 8/11+)
hardware and Tools (Not Shown): Qty
• Flat Washer 8mm (miter gauge) ................ 1
• Flange Bolts m8-1.25 x 12
(Fence resting Bracket) ............................. 2
• Flange Bolts m8-1.25 x 12 (switch) ............ 2
• open-End Combo Wrenches
8 x 10, 11 x 13, 14 x 17 ......................1 Each
• hex Wrenches 3, 4, 5, 6mm ..............1 Each
• Combo screwdriver .................................... 1
• lock Knob m5-.8 (insert) ............................ 1
• Wire nuts ................................................... 4
Fence

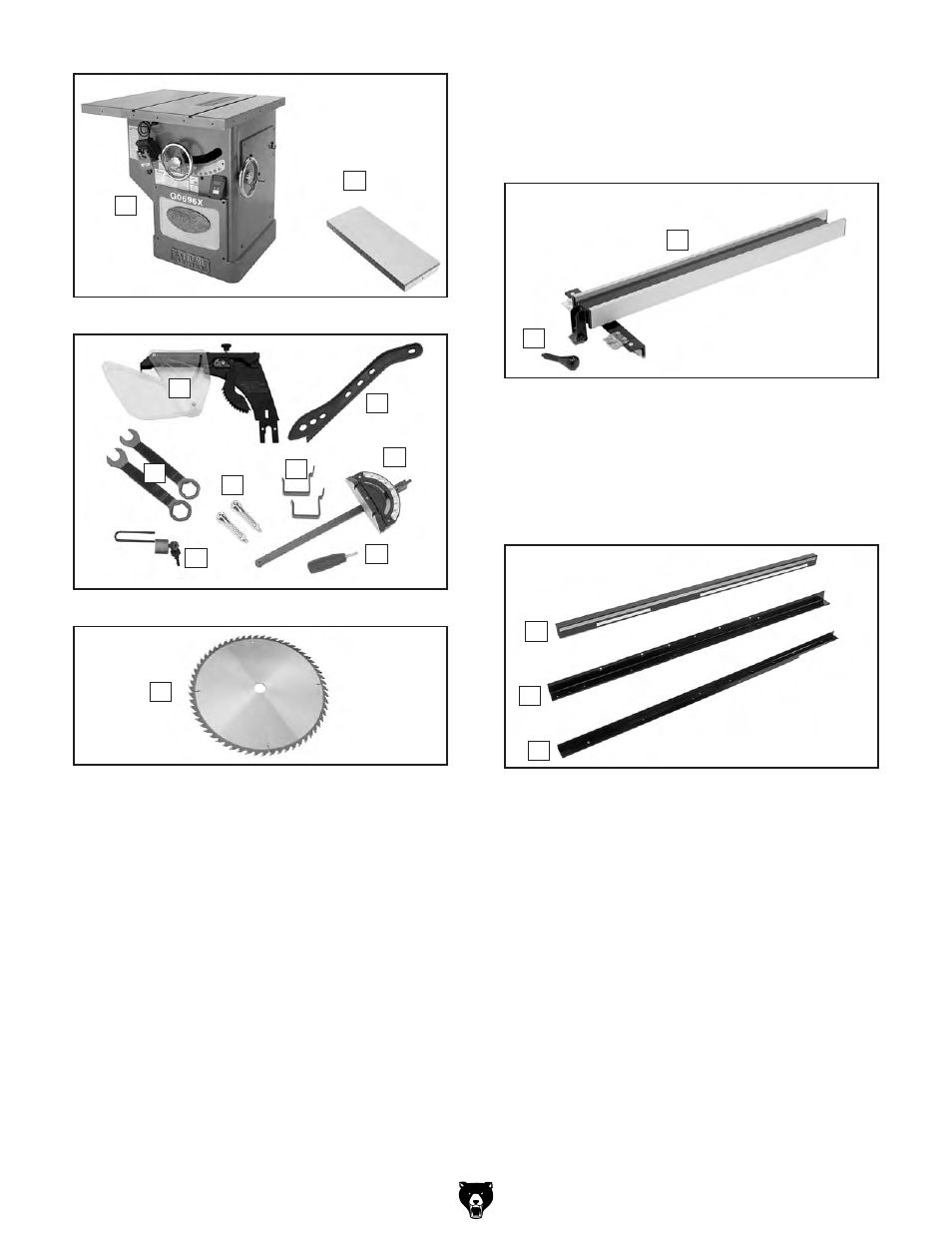

Box contents: (Figure 19) Qty
A. Fence ......................................................... 1
B. Fence handle ............................................. 1
Figure 19. Fence components.
A
B
Figure 18. saw blade.
J
Figure 16. g0696X table saw unit.
A
B
Figure 17. main components.
C
E
d
F
h
g
i
l
Fence Rail Inventory
Box contents: (Figure 20) Qty
A. Fence tube (75" long) ............................... 1
B. Front rail (75" long) .................................. 1
c. rear rail (62 1 ⁄
2
" long) ................................ 1
Figure 20. Fence rail components.
A
B
C
hardware and Tools (Not Shown): Qty
• Cap screws m8-1.25 x 25
(rear rail/Cabinet/Ext. table) .................... 6
• Flat Washers 8mm (rear rail/Ext. table) .. 6
• Flat head screws m8-1.25 x 25
(Front rail/Cabinet/Ext. table) ................... 6
• hex nuts m8-1.25
(Front rail & rear rails/Ext. table) ........... 4
• lock Washers 8mm
(Front & rear rails/Ext. table) ................ 10
• Flange Bolts m8-1.25 x 12
(Fence tube/Front rail) .............................. 4
• hex Bolts m10-1.5 x 35 (Ext. table) ........... 3
• lock Washers 10mm (Ext. table) .............. 3
• Flange Bolts m8-1.25 x 12
(Fence resting Brackets) ........................... 2
