g0605X1-6X1, g0696X-97X (mfg. 8/11+) -67-
8. tilt the blade to 45° and repeat Steps 3–6.
—if the blade is still parallel with the miter
slot, continue onto the Blade Alignment
procedure.
—if the blade was parallel with the miter slot
at 90° but not at 45°, one end of the table
will need to be shimmed higher with metal
shim stock.
9. loosen the three table mounting bolts.
10. refer to Figures 129–130 for shim place-
ment. if the distance of A is shorter than B,
shim(s) will need to be placed under corners
#1 and #2. if the distance of B is shorter than
A, shim(s) will need to be placed under cor-
ner #3. very thin shim stock works well.

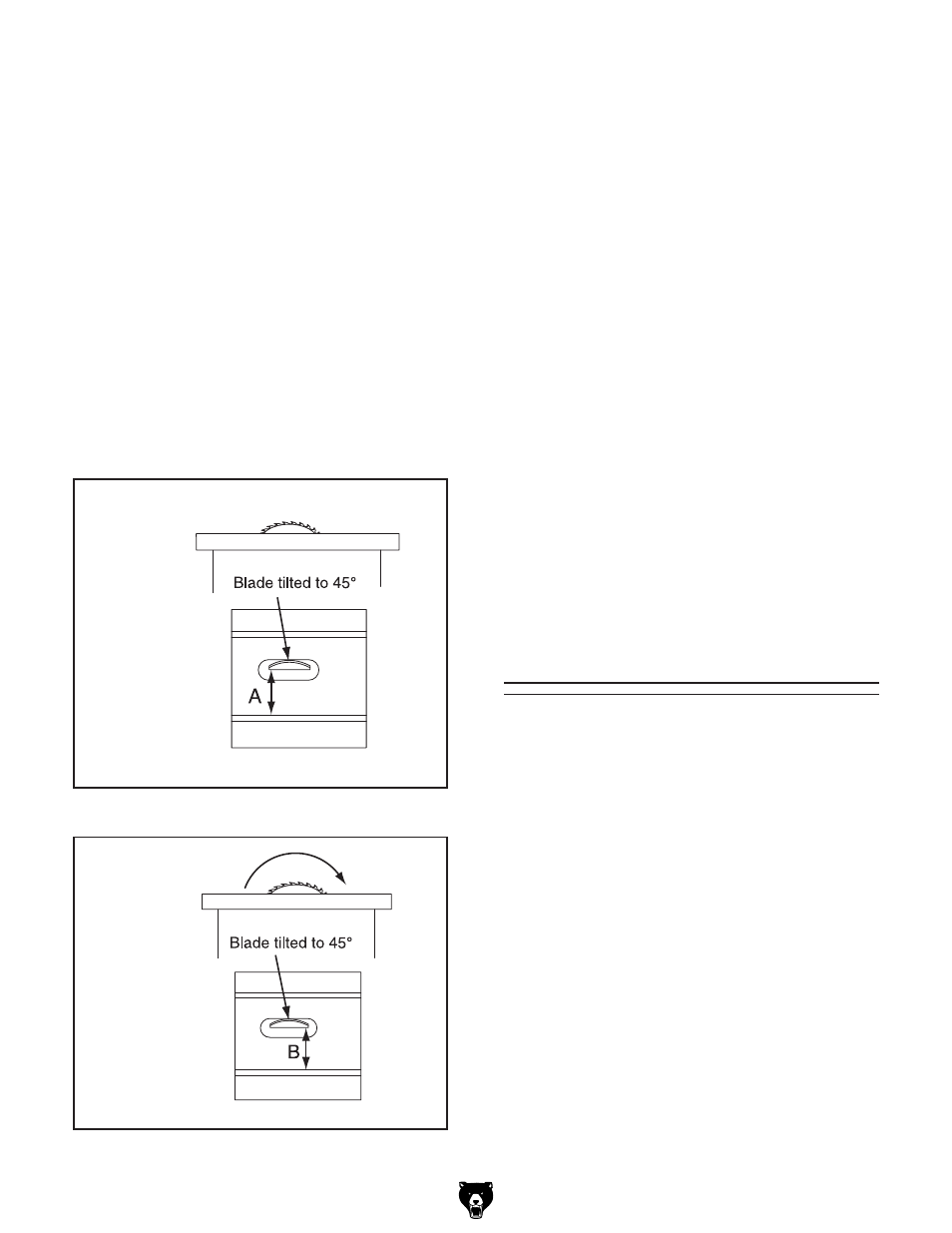

Figure 129. shim procedure diagram A.
Figure 130. shim procedure diagram B.
#1
#2
#3 Front
STEP B
STEP A
Front
#1
#2
#3
11. tighten one bolt a small amount and then
repeat with the others, tightening each down
the same amount. Continue this process with
all the bolts, tightening them a little each time
until they are all secure.
12. now recheck the blade to the miter slot at 90°
and 45° by repeating Steps 3-6.
—if the distance of A and B are equal,
continue to Step 13, then go to Blade
Alignment.
—if the distances are still off, repeat Steps
9–11.
13. once the miter slot is adjusted to the blade,
recheck all measurements and be sure the
table mounting bolts are secure. Also, if you
remove the table in the future, note the shim
placements and reassemble them exactly
how they came apart.
14. reconnect the power, then recalibrate the
digital readout (refer to procedure on page
74) before operating the saw.
Blade Alignment
if the blade contacts the standard table insert
when raised or tilted, the blade must be aligned.
Tools Needed Qty
Wrench 14mm ................................................... 1
To adjust the blade alignment by moving the
table:
1. disConnECt sAW From poWEr!
2. loosen the three table mounting bolts (page
66, Figure 128) and adjust the table until the
blade does not contact the insert. tighten all
the mounting bolts.
3. make sure the blade does not contact the
table insert when raised or tilted. recheck
parallelism of the blade to the miter slot (see
page 66). Adjust as necessary until the blade
does not touch the insert.
