Setting 45° Stop Bolt
1. disConnECt sAW From poWEr!
2. raise the blade as high as it will go, then tilt it
towards 45° until it stops and cannot be tilted
any more.
3. place a 45° square against the table and
blade so it contacts the blade evenly from
bottom to top, as shown in
Figure 124. make
sure a blade tooth does not obstruct the
placement of the square.

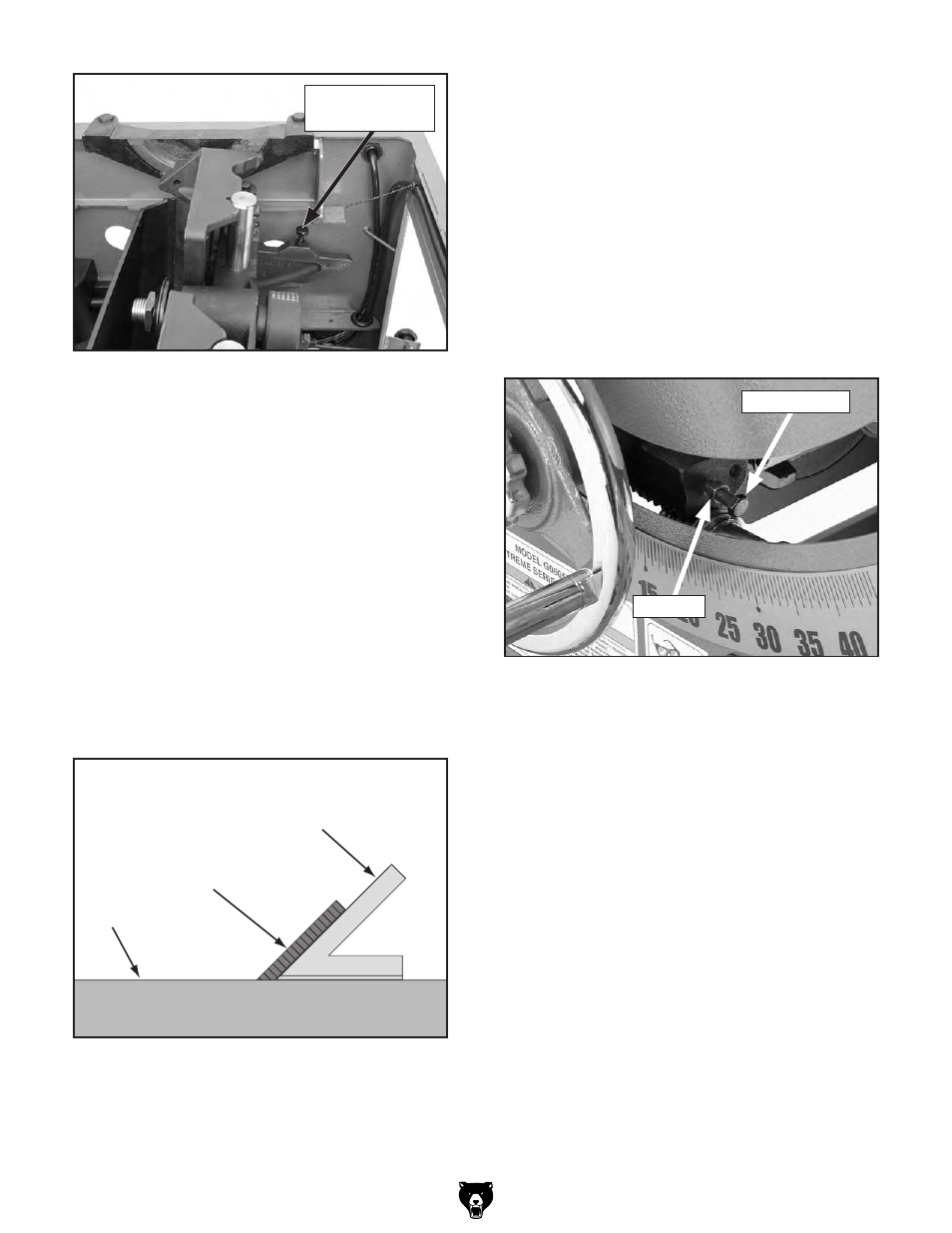

Figure 124. Checking blade at 45°.
Blade
45° Square
Table
—if the blade is 45° to the table, then adjust-
ments do not need to be made.
—if the blade is not 45° to the table, you will
need to adjust the 45° stop screw. proceed
to the next step.
4. tilt the blade to 20°, so there is room for the
stop bolt to move.
5. loosen the jam nut on the 45° stop bolt
(see Figure 125) with a 13mm wrench, then
adjust the stop bolt up or down according to
how far off the blade was from 45°.
6. tighten the jam nut, then close the motor
cover.
Figure 123. 90° stop bolt and jam nut (table
removed for clarity).
6. Continue adjusting the stop bolt until it con-
tacts the cabinet when the blade is at 45°,
then tighten the jam nut.
7. reconnect the power, then recalibrate the
digital readout (refer to procedure on page
74) before operating the table saw.
90° stop Bolt &
Jam nut
Figure 125. 45° stop bolt and jam nut.
45° stop Bolt
Jam nut
