g0605X1-6X1, g0696X-97X (mfg. 8/11+) -27-
power connection
Before the machine can be connected to the
power source, an electrical circuit must be made
available that meets the minimum specifications
given in "Circuit requirements for 220v" on
page
10. if a power circuit has not been prepared for the
machine, do that now. to ensure a safe and code-
compliant setup, we strongly recommend that all
electrical work be done by a qualified electrician.
G0605X1/G0606X1/G0696X/G0697X
220v power connection

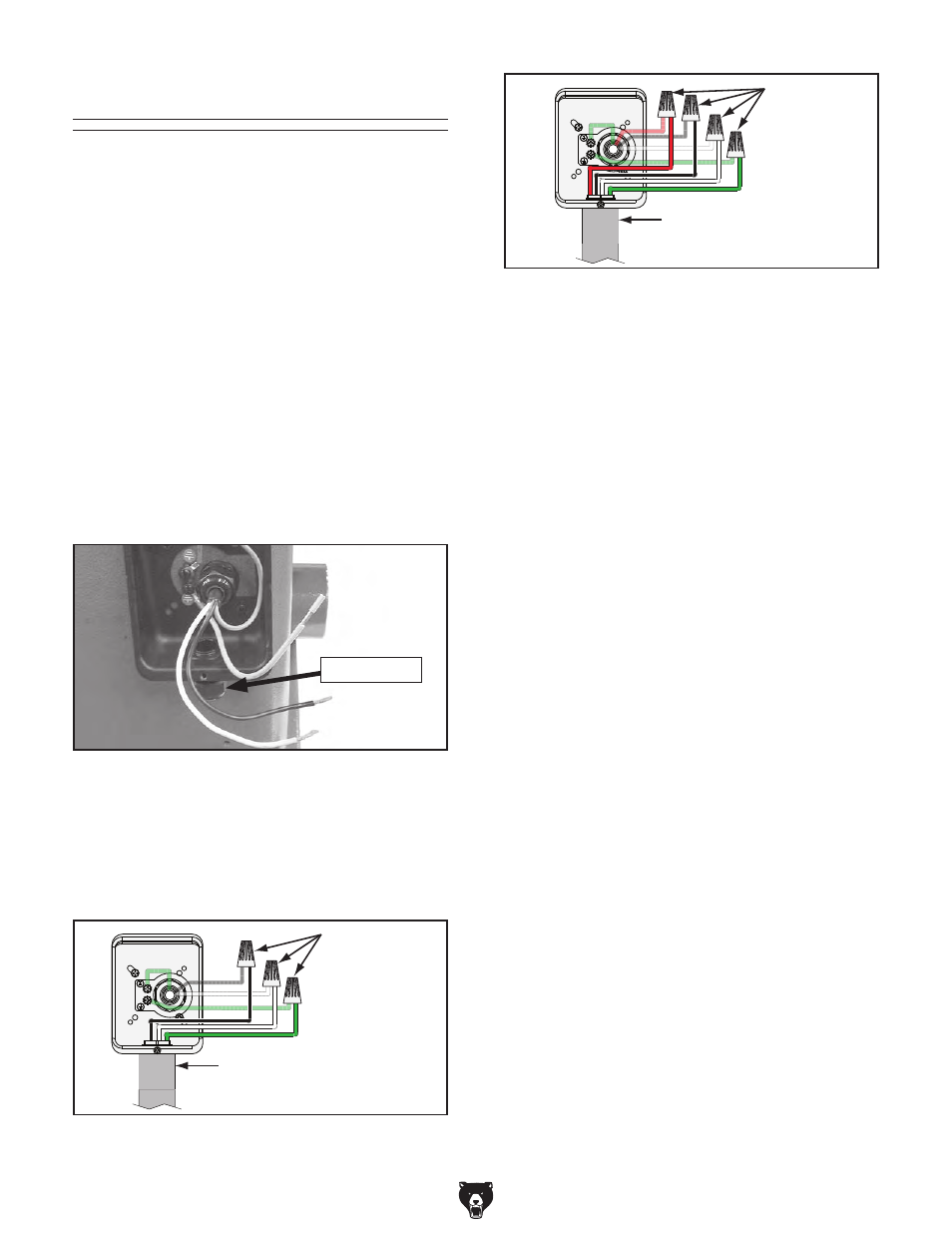

1. remove the junction box cover on the rear of
the cabinet.
2. loosen the strain relief on the bottom of the
junction box shown in Figure 45, then insert
the incoming power wires into the junction
box.
Figure 45. power connection junction box.
strain relief
3. Connect the incoming power wires and ground
wire to the wires in the junction box using wire
nuts, (see
Figures 46–47), then wrap each of
the wire nuts and their respective wires with
electrical tape to secure them.
Incoming
Power Line
Connect
Wires
with
Wire
Nuts
Figure 47. g0606X1/g0697X incoming power
wires connected at junction box.
Incoming
Power Line
Connect
Wires
with
Wire
Nuts
Figure 46. g0605X1/g0696X incoming power
wires connected at junction box.
G0606X1/G0697X 440 power
connection
hardwire setups require power supply lines to be
enclosed inside conduit, which is securely mount-
ed and constructed in adherance to applicable
electrical codes.
A hardwire setup for this machine must be
equipped with a locking disconnect switch as a
means to disconnect the power during adjust-
ments or maintenance, which is a typical require-
ment for lock-out/tag-out safety programs (com-
monly required by oshA).
Figure 4 on page 11 shows a simple diagram of
a hardwire setup with a locking disconnect switch
between the power source and the machine.
due to the complexity required for planning,
bending, and installing the conduit necessary for
a hardwire setup, this type of setup can only be
performed by an experienced electrician.
4. tighten the strain relief on the bottom of the
junction box against the conduit—not directly
against the wires—then re-install the cover.
leave a little slack in the wires inside the
junction box.
phase converter precaution
the power from the manufactured leg may dam-
age electrical components if connected to the
wrong incoming power terminal on your machine.
refer to the phase converter notice on the wiring
diagram on
page 81 for more detail.
