CSS components
8.1.2.2 2.5-inch HDD module and dummy module

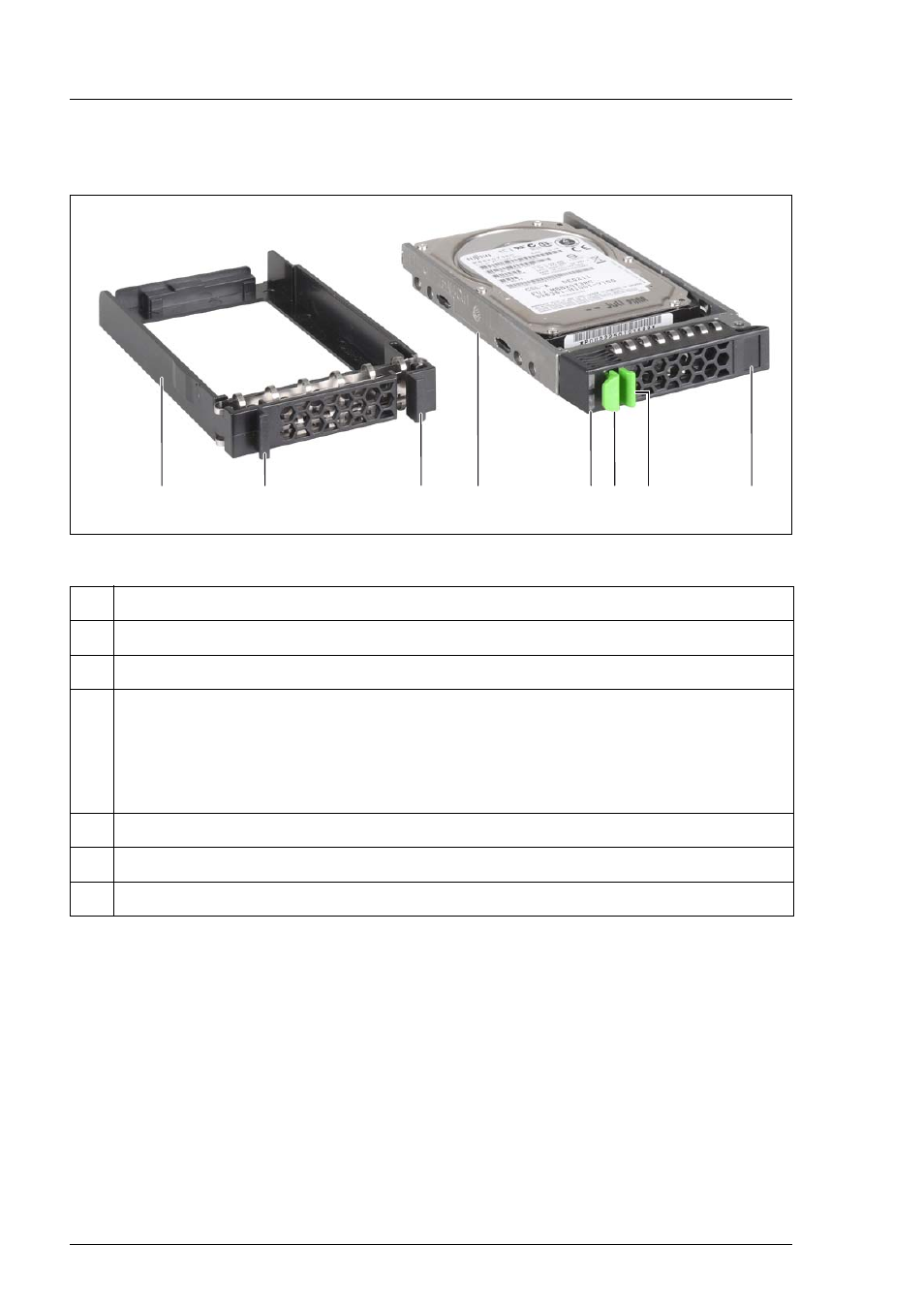

Figure 22: 2.5-inch HDD module and dummy module
1 Dummy module
2 Tabs for unlocking the dummy module
3 HDD module (installation frame with hard disk drive installed)
4 Indicators
HDD Busy (LED green)
HDD Fault (LED orange)
For description see section "Hard disk drive indicators" on page 72 .
5 Handle for locking and unlocking the HDD module
6 Button for locking and unlocking the handle
7 Ridge for applying a sticker with the current drive name and drive size
