Installing the HDD module
Unlocking the HDD module

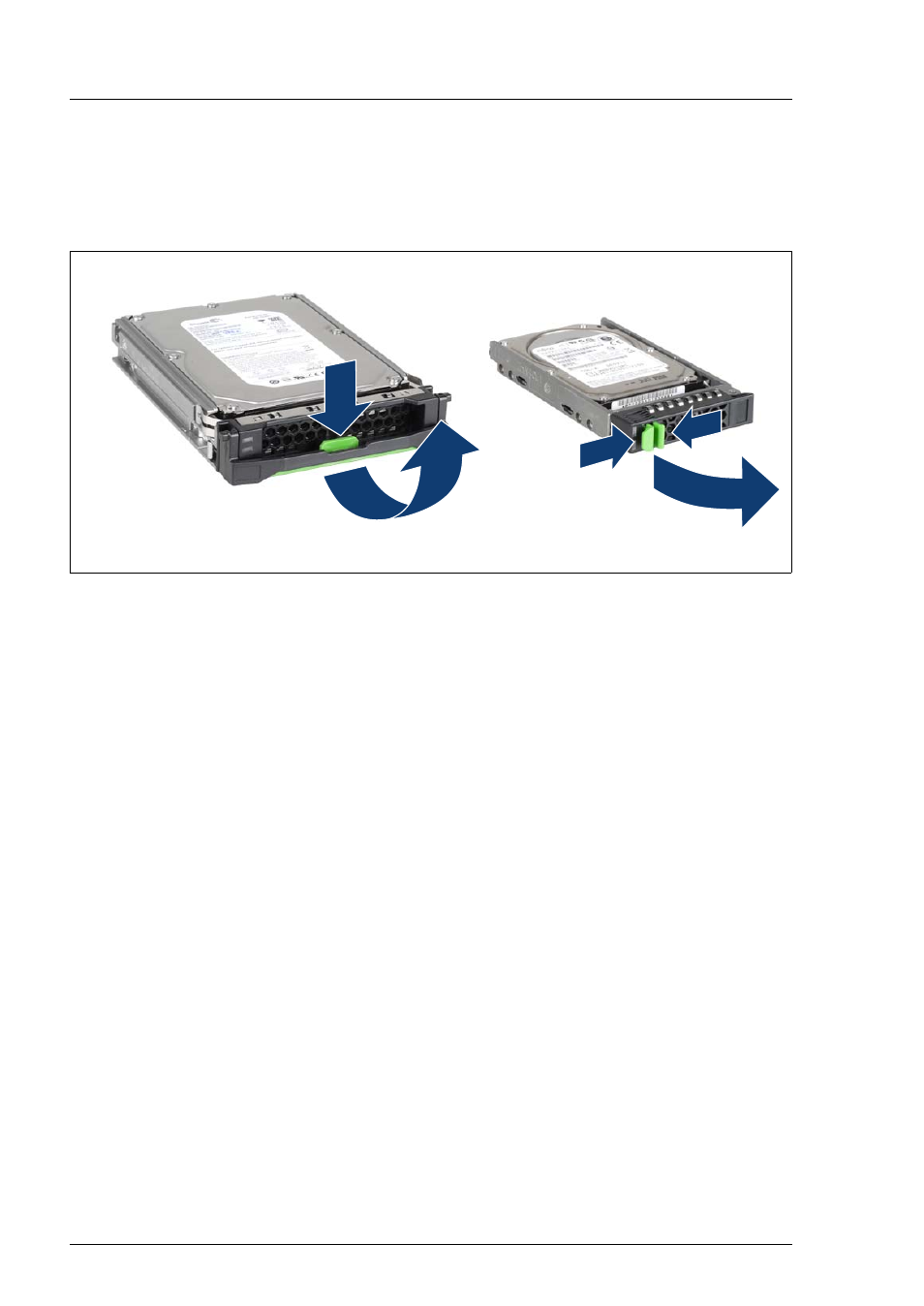

Figure 25: Unlocking the 3.5-inch and 2.5-inch HDD modules
Ê
Release the locking mechanism by pressing the locking button (1).
Ê
Push the handle of the HDD module fully in the direction of the arrow (2).
The HDD module is now unlocked.
2
2
1
1
