112

Operating Manual

TX200

CSS components

8.2.5

Reinstalling the fans and closing the server

8.2.5.1

Installing system fan 1 (and 3)

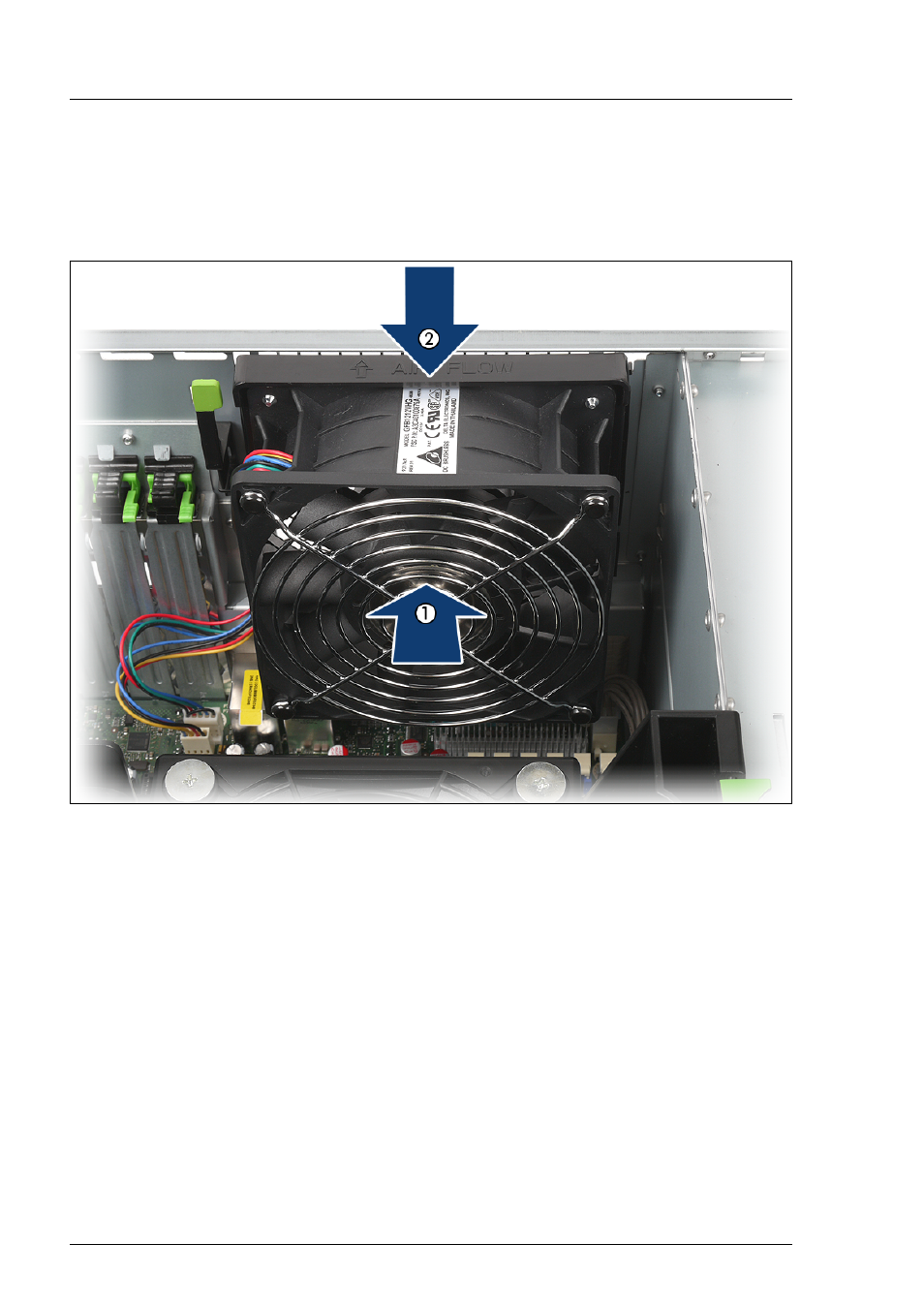

Figure 36: Installing system fan 1 (and 3)

Place the hooks of system fan 1 (and 3) into the recesses on the rear of the
server (1).

Push system fan 1 (and 3) in the direction of the arrow until the locking lever
engages (2).

Connect the fan cable to the connector FAN1 (if there is a second fan cable,
connect this in FAN3) on the system board (see the technical manual for the
system board D2799).
