CSS components
8.2.4.2 Installing a new expansion card

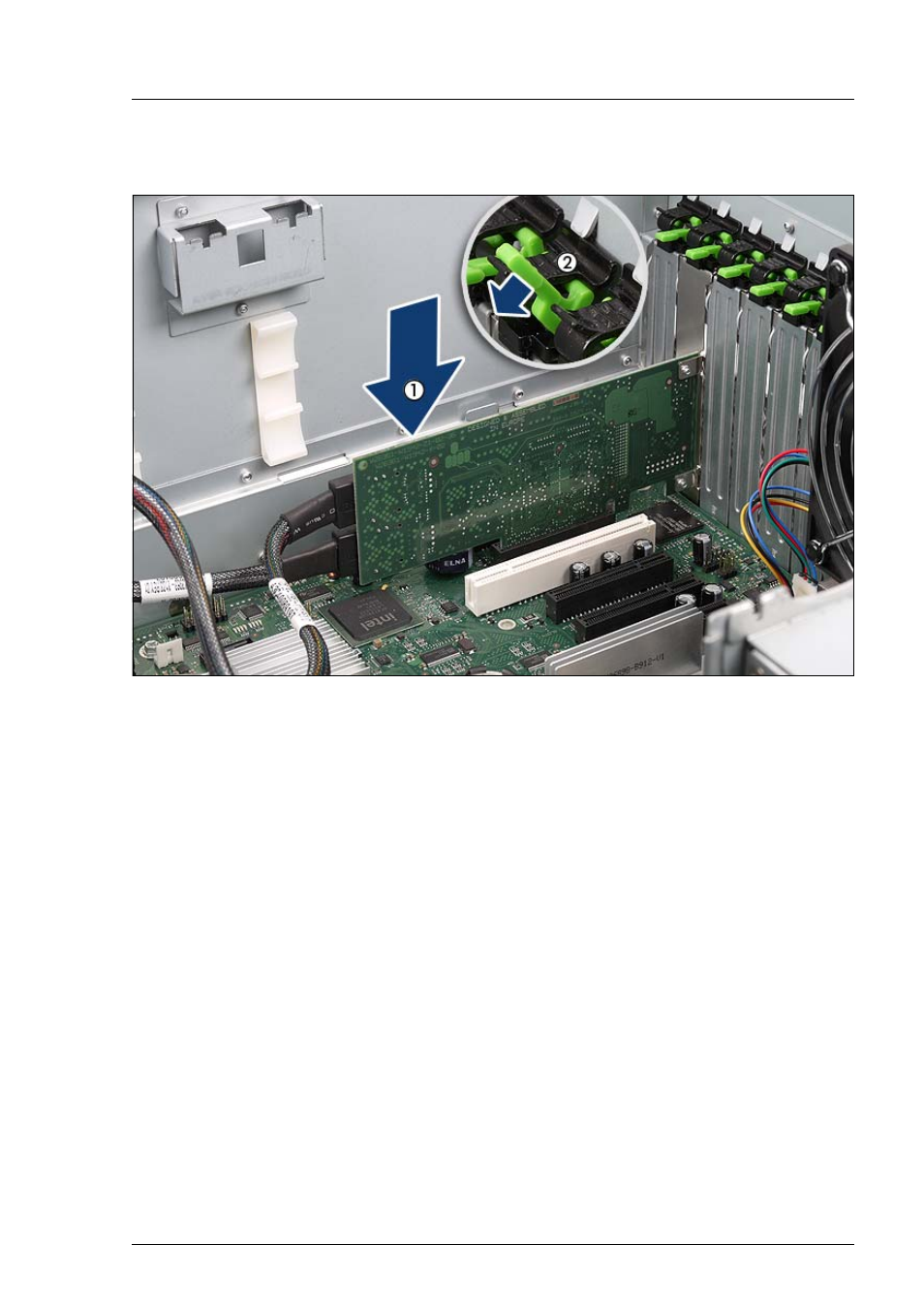

Figure 35: Installing a new expansion card
Ê Carefully press the new expansion card into the slot until it clicks into
place (1).
Make sure that the lug on the slot cover clicks into place in the
corresponding hole.
Ê Fit the clip onto the slot cover so that the pin fits into the hole.
Ê Push the clip under the metal nose until it clicks into place.
Ê Swing the lever (2) downwards into its locking position.
Ê If necessary, connect the cables to the expansion card.
